AtlasIED PM4FA-B 4" 2-Way Pendant Mount Speaker with 70.7V Taps and 8 Ohm Input at 25 Watts - Black
Usually arrives in 5-9 business days.
The Atlas Sound PM8FA was specifically designed for upscale performance in retail and hospitality applications, and features the popular FA138 loudspeaker in a specifically tuned and ported enclosure to provide impressive music reproduction and page intelligibility.

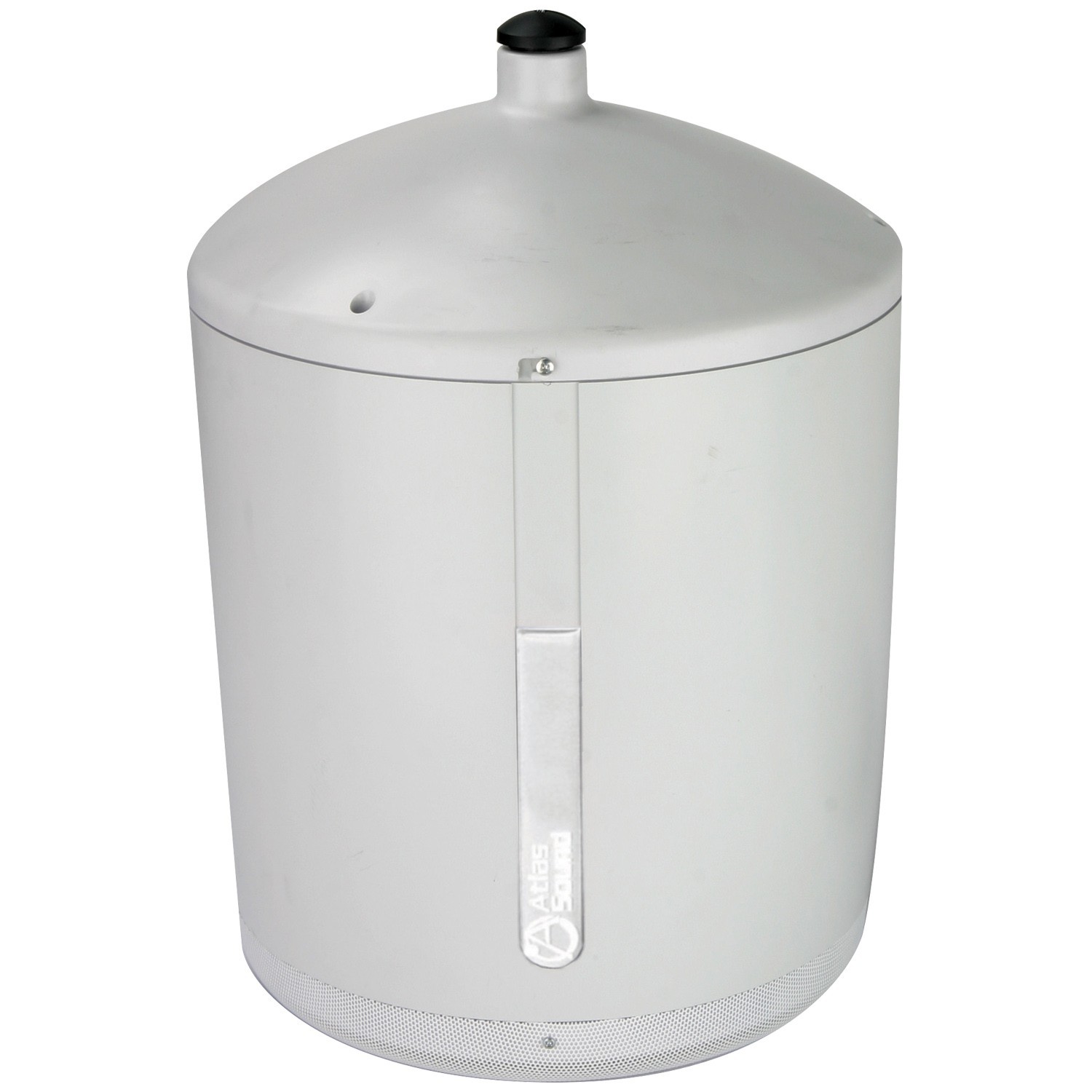

AtlasIED PM8FA-WH 8" 2-Way Pendant Mount Speaker
The Atlas Sound PM8FA was specifically designed for upscale performance in retail and hospitality applications, and features the popular FA138 loudspeaker in a specifically tuned and ported enclosure to provide impressive music reproduction and page intelligibility.
Attaching the PM8FA to most overhead surfaces is a breeze. For open beam ceilings, a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC™ brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling material angle (Up to 45°).
Either installation solution is discreetly implemented via the PM series innovative top cover design concealment cap. This "cap" includes a cable access plug that is easily removed for down pipe mounting. The cover also completely conceals the speaker cable terminations and the suspension anchor points.
Several packages are offered to suit various coverage pattern and installation scenarios. For low ceilings, Atlas Sound offers a discrete enclosure system containing a ultra wide coverage 4" FA series driver. For higher ceiling applications, Atlas Sound PM series answers the need for a variety of budget and performance requirements with three different 8" driver options, factory assembled into in a larger pendant style enclosure.
Atlas Sound pendant speakers are designed for high-quality performance in background music and voice announcements in open ceilings, raked ceilings, and other architectures where hanging pendant speakers are desired.
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 90 dB Average |
| Frequency Response | 60Hz - 20kHz |
| Power Taps | 1.9, 3.8, 7.5, 15, 30, 60 Watts and 8Ω |
| Dispersion | 100° |
| 8Ω Power | 70 Watts RMS 100 Watts Peak |
| Dimensions Dia x H) | 12.25" (311.15 mm) x 16.62" (422.148 mm) |
| Weight | 25 lbs (11.34 kg) |
