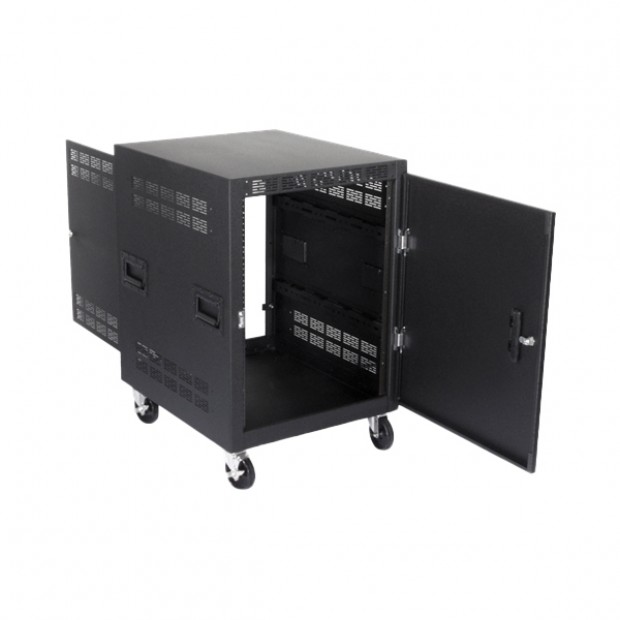

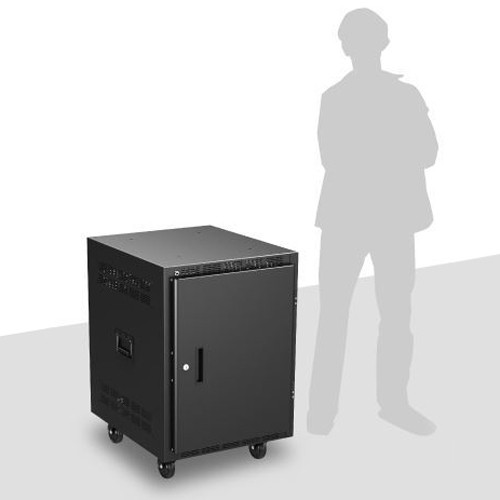

The RX14-30SFD mobile cabinet is ruggedly constructed of 16-gauge CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10-32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.
Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.
The cabinet is 30" deep and has a vertical panel space height of 24-5/8". It features one pair of recessed, hinged and rubber-padded steel grips on each side (four total) for transport convenience.
Easy wiring access is provided through three-wire isolation holes (two, 1 1/2" diameter and one oblong 1-1/2" x 3") in the rear base flange.
The units' four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility and have a load capacity of 175 lb. each - 700 lb. total weight capacity.
It also includes vented and removable locking doors, as well as vented top-front and top-rear flanges. The surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to 1-1/2" from the front of the rail.
| Model | RX14-30SFD |
|---|---|
| Product Type | Portable Rack |
| Rack Spaces | 14 |
| Usable Depth | 28.5" (72.39 cm) |
| Includes: | Casters, Side Handles and solid doors |
| Load Capacity | 175 lbs |
| Dimensions (W x H x D) | 22.31" (566.8 mm) x 33.6" (852.5 mm) x 30" (762 mm) |
