AtlasIED SBMS 8" Open Beam Ceiling or Surface Mount Loudspeaker with 4W 25V/70V Transformer
AtlasIED SBMS 8" Open Beam Ceiling or Surface Mount Loudspeaker with 4W 25V/70V Transformer
AtlasIED SBMS 8" Open Beam Ceiling or Surface Mount Loudspeaker with 4W 25V/70V Transformer
AtlasIED SBMS 8" Open Beam Ceiling or Surface Mount Loudspeaker with 4W 25V/70V Transformer
AtlasIED SBMS 8" Open Beam Ceiling or Surface Mount Loudspeaker with 4W 25V/70V Transformer
By AtlasIED

AtlasIED SBMS 8" Open Beam Ceiling or Surface Mount Loudspeaker with 4W 25V/70V Transformer

Write a Review
Part #:
SBMS
Model #:
SBMS
MSRP: $154.99
$126.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

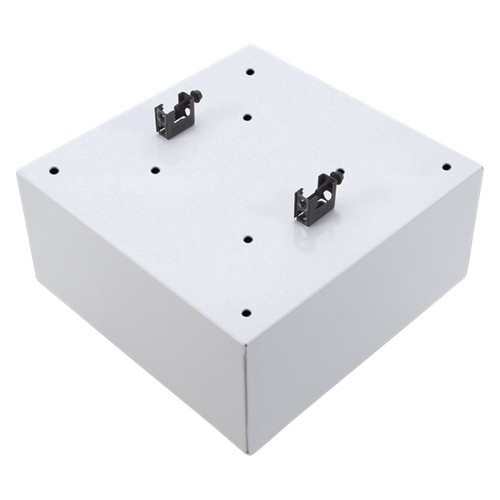

The Atlas Sound SBMS 8 inch square beam mount speaker is ideal for "big box" retail stores whose special design calls for an open beam ceiling. The SBMS includes a 25V/70.7V internal transformer and is finished in neutral white epoxy for simplified stocking and ordering.

Description

The SBMS is ideal for "big box" retail stores whose special design calls for an open beam ceiling.

To get customers to pay attention to the announcements of specials and the employees to respond to general paging—intelligibility is a top design goal. The high efficiency of the specially designed 8" speaker included in the SBMS package fills this requirement.

The SBMS square design blends in with the overall aesthetic of an open beam ceiling.

The SBMS is infinitely flexible, complying with a variety of conduit requirements. Integral knockouts facilitate 0.50" and 0.75" conduit where required by code while integral “romex” style connector simplifies installation for applications where conduit is not required at all.

The SBMS also includes a 25V/70.7V internal transformer and is finished in neutral white epoxy for simplified stocking and ordering.

Features
  • Convenient Lead Wire Extensions Assure Expedited Field Connection
  • Durable White Powder Coat Finish

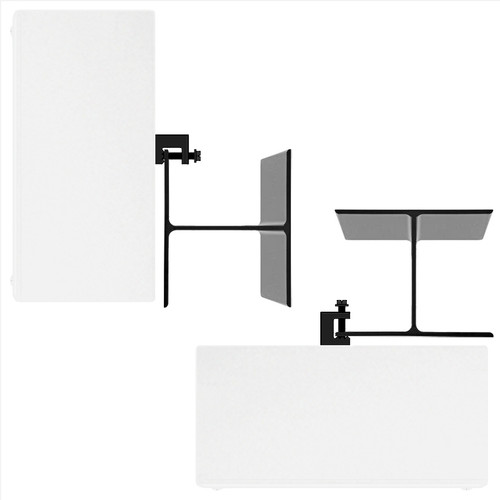

  • Easy-to-Install Loudspeaker Package Includes Provisions for Fast Clamp-Mount Installation to I-Beams and Girders
  • Package Includes an 8" Dual-Cone Loudspeaker with a Pre-Mounted Transformer, Baffle and Enclosure Equipped with Clamp Mounts
  • UL Certified, Safety Listed to UL1480

Specifications
Power Rating 25 Watts (Transformer Limited)
70.7V Taps .25, .5, 1, 2, 4
Frequency Response 85Hz – 20kHz (±3dB)
Sensitivity 92dB
Woofer 8" Dual Cone
Dispersion 105°
Safety Listed 1480
Dimensions (H x W x D) 11.56" (294 mm) x 11.63" (295 mm) x 5.63" (143 mm)
Weight 9.5 lbs (4.31 kg)

DOCUMENTS
