This Clean Room Ceiling Speaker is a simple, affordable speaker solution for any environment where clean air quality is of paramount importance, such as dust-sensitive manufacturing plants, laboratories, hospitals and testing facilities with "cleanroom type" environmental requirements. This cleanroom speaker system installs easily and creates a dust and particle barrier between the building air plenum, where particles exist, and the room environment.

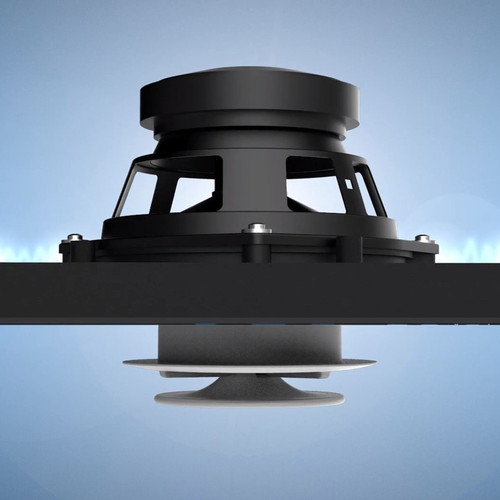

The Atlas Sound SHS-6T2CVR is an industry-first strategically hidden ceiling speaker designed specifically for areas where there is high sensitivity to clean air. The included SHS-CVR (cover) easily installs over the Atlas Sound SHS opening to create a barrier between the building plenum and clean space. AtlasIED recommends using the SHS-6T2CVR kit when paging notifications are just as important as the air quality in an environment.

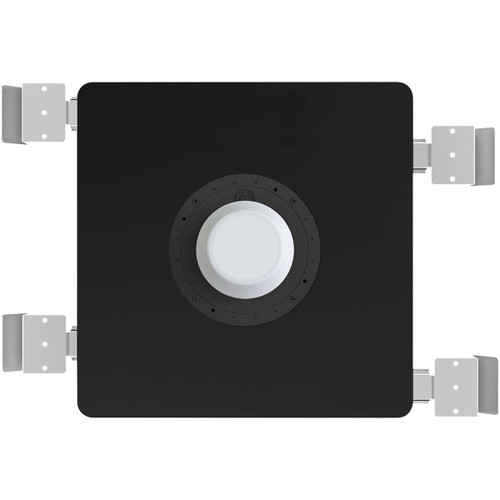

Easy Installation - visually, only a 3-inch diameter lens and a micro trim ring are visible on the front of the ceiling. The Atlas Sound SHS is an installer’s dream with an integrated rail system. All the installation parts are built into the enclosure including the tile rails, which require no rail screws for installation. Simply pull the four rails out from the enclosure and it’s ready for install, drill a three-inch hole in the ceiling tile, set the speaker through the hole and add the clean room cover.
Special Order, Non-Returnable
| Speaker Type | Coaxial |
|---|---|
| Sensitivity | 86dB (1W/1m) |
| Power Taps | 4, 8, 16, 32W (70.7V) |
| Power Taps | 8, 16, 32W (100V) |
| RMS Power (Watts) | 75 @ 6Ω |
| Frequency Response | 100Hz - 15kHz (DSP Corrected) |
| Dispersion | 130°, 2kHz octave band with 4 mm dispersion lens |
| Cut Out Diameter | 2.75" (69.85 mm) |
| Dimensions (H x W x D) | 12.73" (323.3 mm) x 12.73" (323.3 mm) x 3.92" (99.6 mm) |
Usually arrives in 5-9 business days.
