The Atlas Sound SM12CXT 12 inch Coaxial Loudspeaker offers quality sound reproduction and contemporary styling. It features a 12CXT60 250 W loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, compression driver.

Description

The Atlas Sound SM12CXT 12 inch Coaxial Loudspeaker offers quality sound reproduction and contemporary styling. It features a 12CXT60 250 W loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, compression driver.

The speaker has a curvilinear, treated-paper cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. The low frequency transducer and the high frequency driver feature permanently aligned voice coils for low distortion performance. The copper coils have Polyimide voice coil formers.

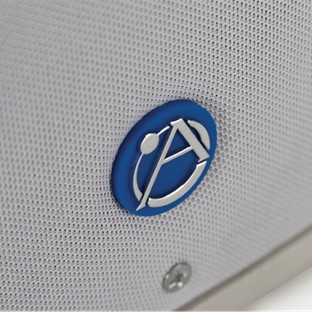

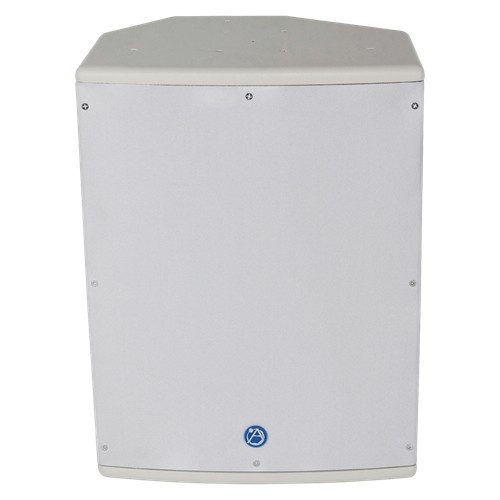

The SM12CXT features a wood enclosure with a metal grille. Internal hardware, for flying, includes multiple (12) 1/4"-20 inserts for overheard suspension in most any orientation. A 90 degree conical pattern (2 kHz octave band) and amazing efficiency make the SM12CXT a perfect choice for a wide variety of applications including school auditoriums, gymnasiums, cafeterias, church sanctuary systems, and more. It is available in black or white.

Features
  • Attractive, heavy-duty grille assembly

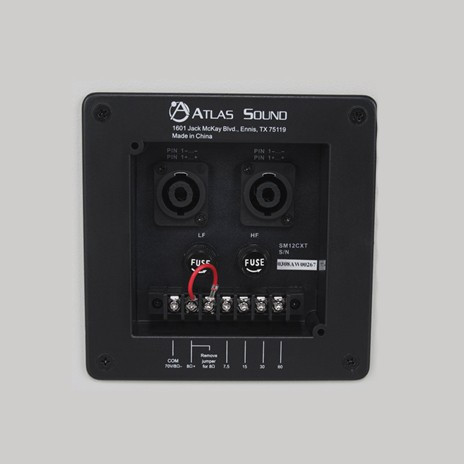

  • Barrier strip input for 70.7 V / 100 V / 8 ohm or parallel 4 pole Speak-on input for 8 ohm operation only
  • Durable black, rough-coat finish
  • Fuse protection for low and high frequency drivers
  • High performance Atlas Sound Compression Driver Coaxial Loudspeakers in versatile, flyable, wood enclosure
  • Includes internal, high efficiency 60 Watt 70.7 V / 100 V transformer (may be bypassed for 8 ohm operation)
  • Multiple 12 1/4"-20 inserts, providing fly points for a variety of mounting configurations
  • Optional brackets for wall mounting
  • Pre-drilled with T-Nut inserts for Omnimount bracket wall mounting

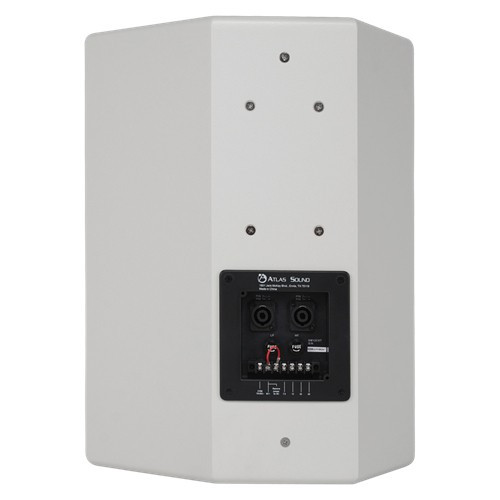

  • Unique input panel allows use of standard 4” square box cover (Raco 753 or eq.) for applications where flex conduit is required for termination

Specifications
Speaker Type High Performance coaxial
Frequency Response 55 Hz to 15 kHz
Power Taps 7.5, 15, 30, 60 W & 8 Ω
8 Ω RMS Power 250 W
Dispersion 90°
Sensitivity 99 dB
Dimensions (H x W x D) 19" (48.3 cm) x 14.5" (36.8 cm) x 14.06" (35.7 cm)
Weight 39 lbs (17.7 kg)
Shipping Weight 52.00 lbs (23.59 kgs)

DOCUMENTS

Related Products

Sold Out

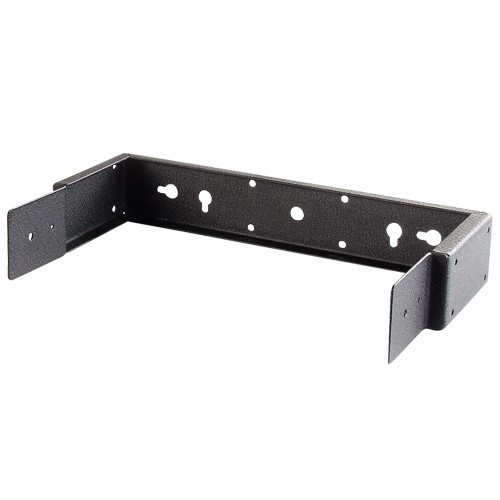

Atlas Sound SM12CBKT Surface Mount U Bracket for SM12CXT (Discontinued) Atlas Sound SM12CBKT Surface Mount U Bracket for SM12CXT (Discontinued)
