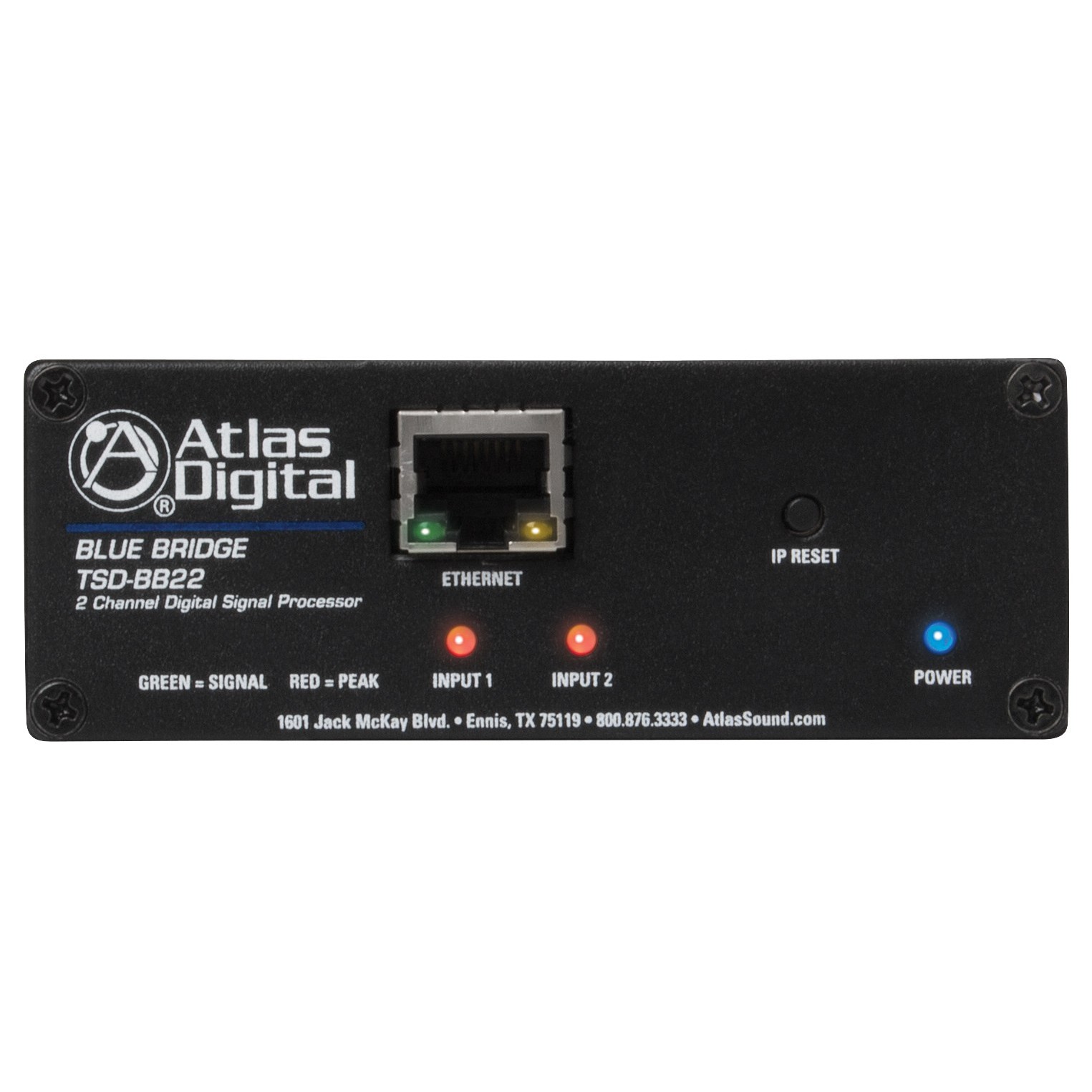

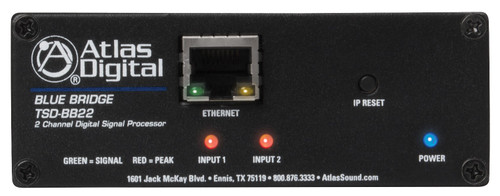

The Atlas Sound TSDBB22 is part of the new BlueBridge family of products from Atlas Sound. The TSD-BB22 is the most powerful and compact DSP products in their class. BlueBridge models utilize high quality microphone preamps and 24 Bit converters to obtain ultra-low noise floor while still maintaining the smooth sound an audio purest expects, with the flexibility and control a system designer requires.
BlueBridge models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge DSP units can operate on any network while the optional control accessories require a PoE Network. When connected to a network, each BlueBridge processor on the network will be auto recognized and controllable.
The TSD-BB22 BlueBridge model is ideal for system designs that require limited I/O’s, but require a state of the art DSP platform. The compact design can be used as a standalone device to run a sophisticated sound system or as a supplement to an existing system.
| Inputs | 2 |
|---|---|
| Input Type | Mic or Line, GUI Selectable |
| Outputs | 2 |
| Output Type | Line |
| Configuration Electronically Balanced Gain | -40 to +15dB in 0.25dB Steps |
| Polarity | +/-, GUI Selectable |
| Maximum Input Level | +20dBu |
| Phantom Power | 48V, GUI Enabled |
| Output Type | Line |
| Output impedance | 50Ω |
| Frequency Response | 20Hz-20kHz |
| Latency | 5ms |
| CMMR | >100dB (50Hz-10khz) |
| Distortion | 0.002% (1kHz @ +4dBu) |
| External Power Supply Safety and Certifications | cUL, CE, RoHS, TUV |
| Dimensions (H x W x D) | 1.5" (3.9 cm) x 4" (10.1 cm) x 5.2" (13.21 cm) |
| Weight | 6 oz (0.165 kg) |
