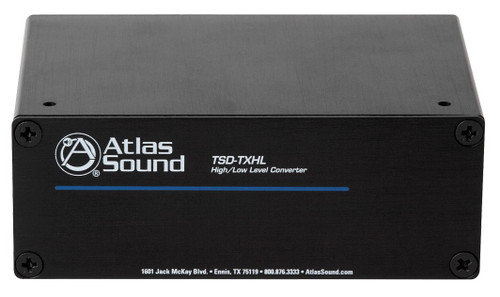

The Atlas Sound TSD-TXHL High / Low Level Converter s a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. It allows easy expansion of zones without the need for dedicated wiring to remote locations.

Description

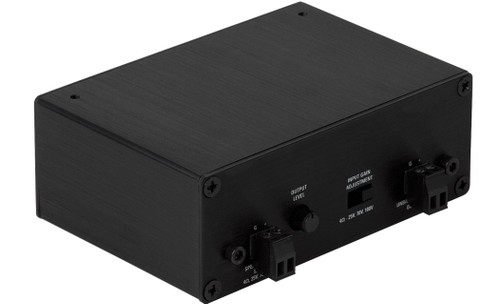

The TSD-TXHL is a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with Atlas Sound's CP and PA series amplifiers.

Features

Tap Into 4Ω/25/70/100V Speaker Lines to Interface With Remote Amplifiers
Input Gain Adjustment Switch
Trim Level Control
Isolated Transformer
Removable I/O Connectors
No External Power Required

Specifications

High Level Input	Amplifier Speaker Outputs 4Ω, 8Ω, 25V, 70V and 100V
Output Impedance	600Ω Unbalanced
Line Output Level	Max Output 500mV
Frequency Response	40Hz - 25kHz
Dimensions (H x W x D)	1.5" (3.81 cm) x 4" (10.16 cm) x 2.5" (6.35 cm)
Weight	6 oz (0.165kg)
