AtlasIED TSD-ZDC 4x4 Impedance Divider

Name: AtlasIED TSD-ZDC 4x4 Impedance Divider
Brand: AtlasIED
SKU: ATLAS-TSD-ZDC
Price: 96.99 USD
Availability: InStock

Write a Review

Part #:

TSD-ZDC

Model #:

TSD-ZDC

Current Stock:

MSRP: $117.99

$96.99

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

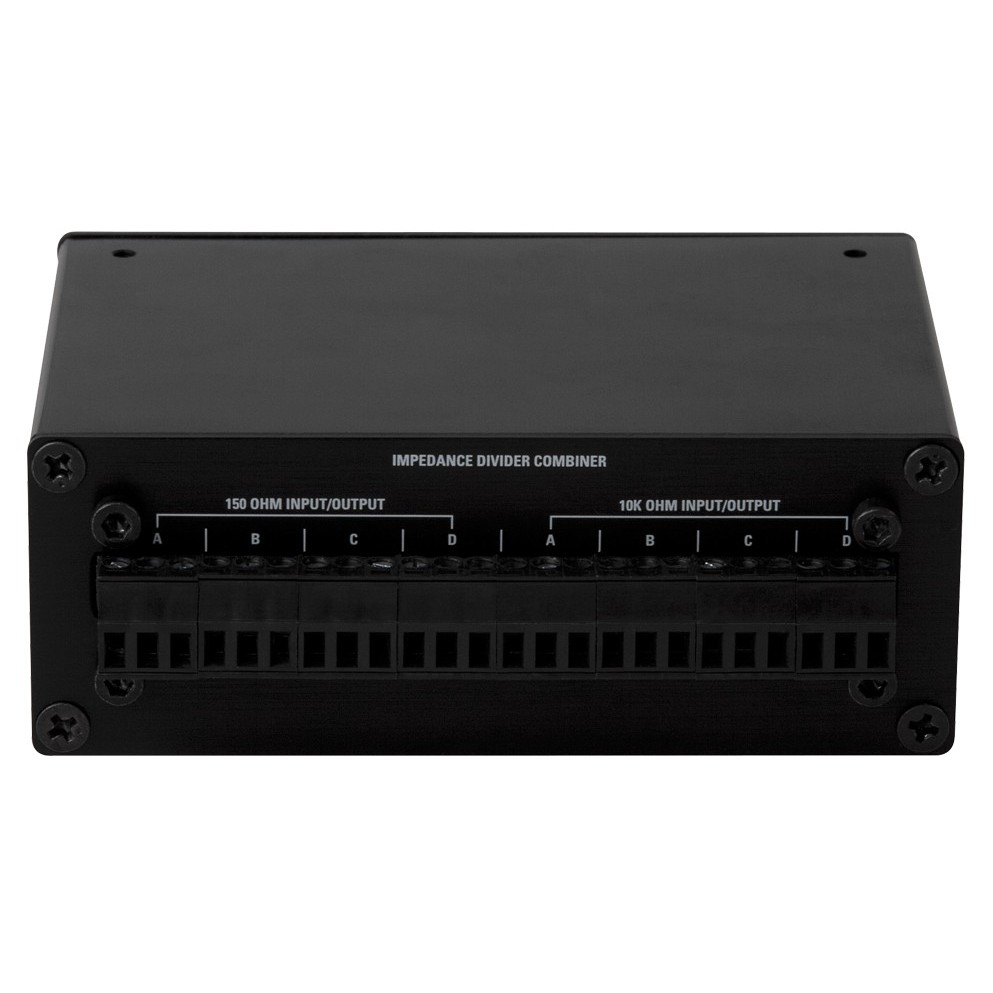

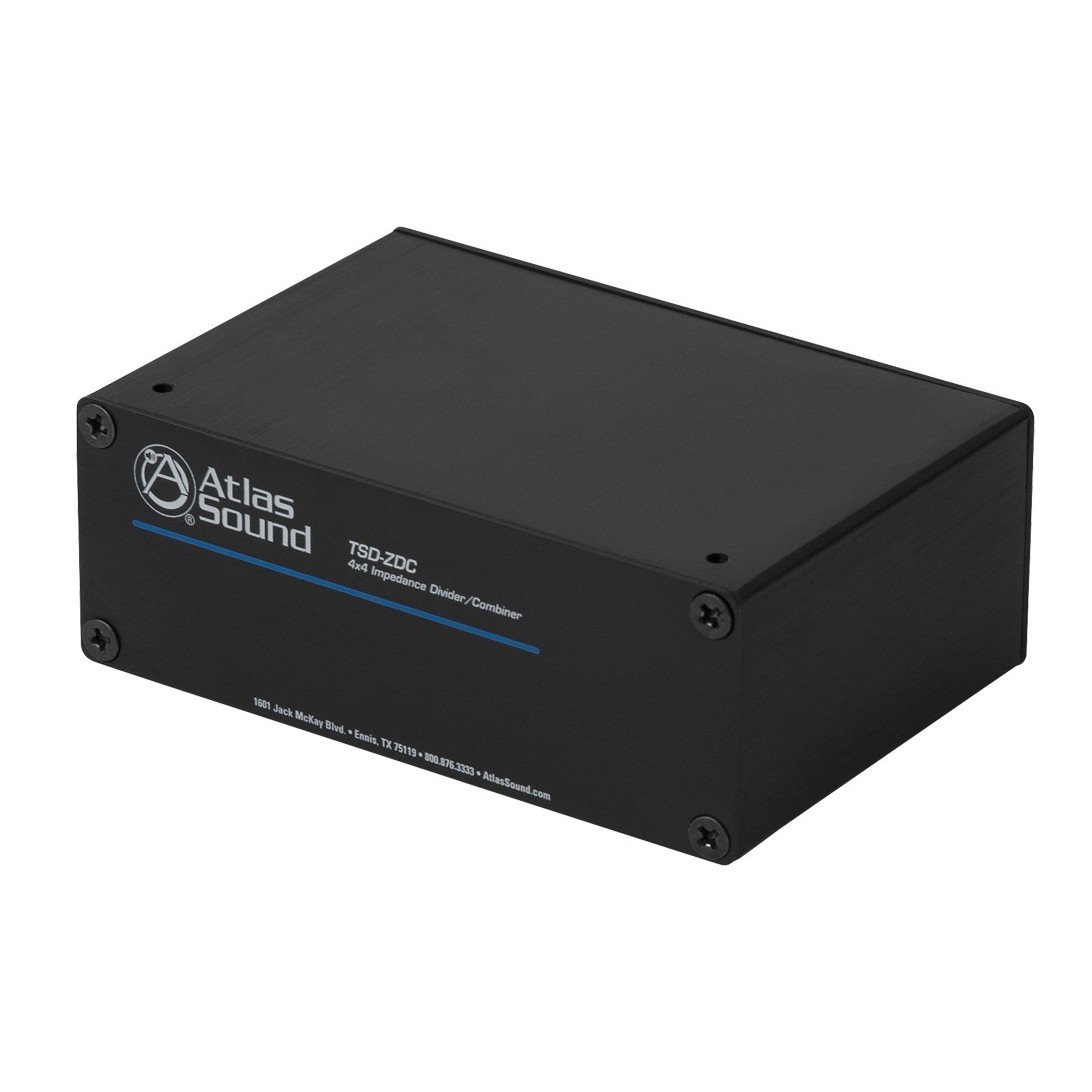

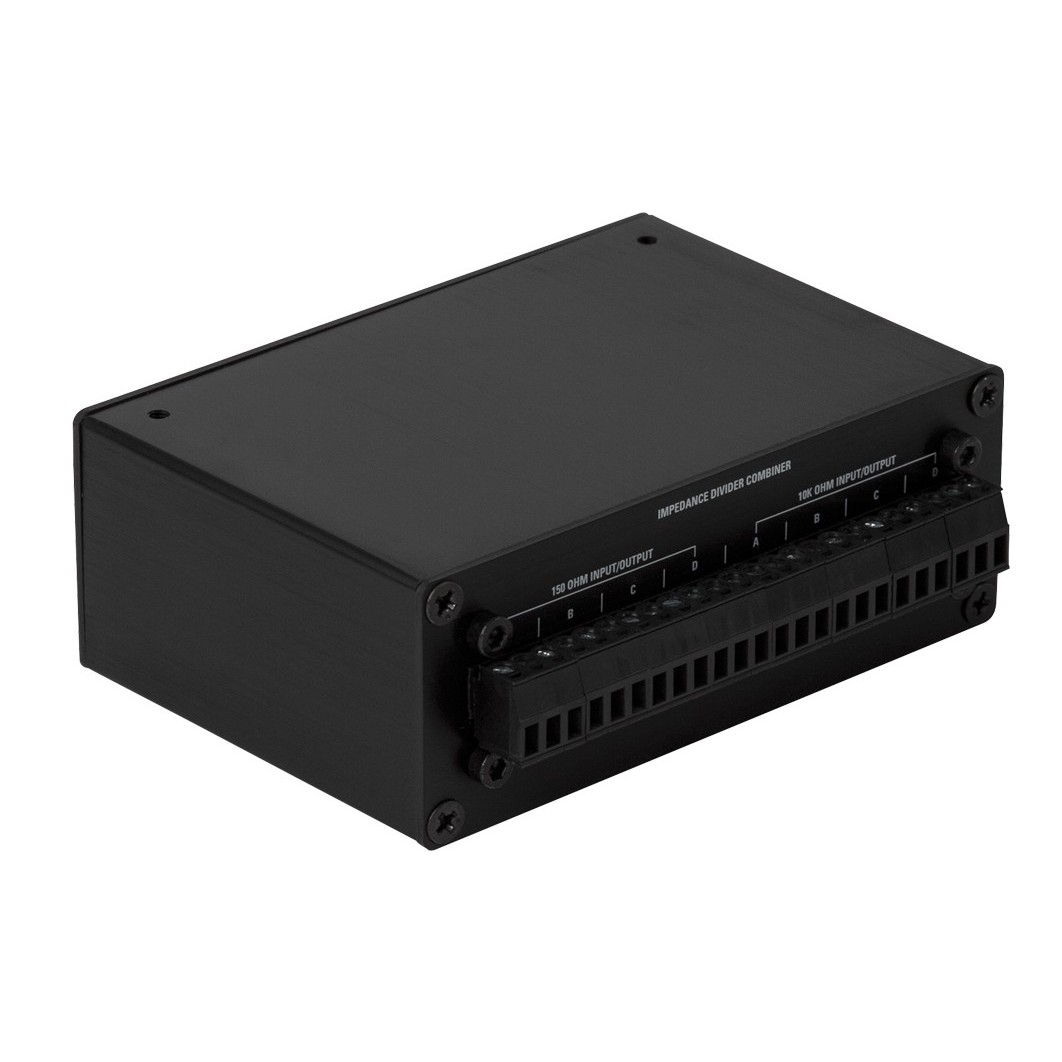

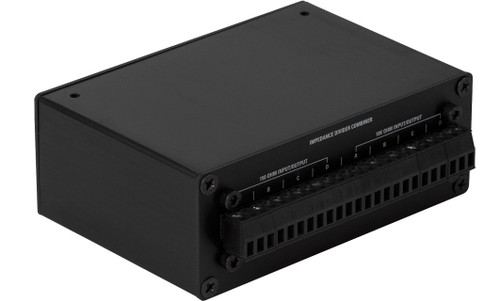

The Atlas Sound TSD-ZDC 4x4 Impedance Divider is a universal impedance divider/combiner for passively summing or splitting of mic or line level signals. Features include four unbalanced 10K and four balanced 150Ω inputs/outputs that may be passively split or combined in any arrangement.

Description

The TSD-ZDC is a universal impedance divider/combiner for passively summing or splitting of mic or line level signals. Features include four unbalanced 10K and four balanced 150Ω inputs/outputs that may be passively split or combined in any arrangement. Typical applications include passive summation of multiple 150Ω mics or stereo 10ΩK sources and passive splitting of 150Ω or 10KΩ input sources to multiple outputs.

To ease contractor use and installation the TSD-ZDC includes individual ground connectors for each input/output. The unit's compact footprint allows for easy standalone mounting or an optional rack mount adapter may be used to facilitate up to (4) TSD devices.

Features

Four (4) 150Ω Stereo Input/Outputs
Four (4) 10K Stereo Input/Outputs
Split or Combine Any Signal
RF Filtering on All Inputs
Individual Input Grounds
Removable I/O Connectors
No External Power Required

Specifications

150Ω Network Inputs/Outputs	4, Passive Balanced Networks, Any Channel Can Be Input or Output
Frequency Response	20Hz - 20kHz
Dimensions (H x W x D)	1.5" (3.81 cm) x 4" (10.16 cm) x 2.5" (6.35 cm)
Weight	6 oz (0.165 kg)
