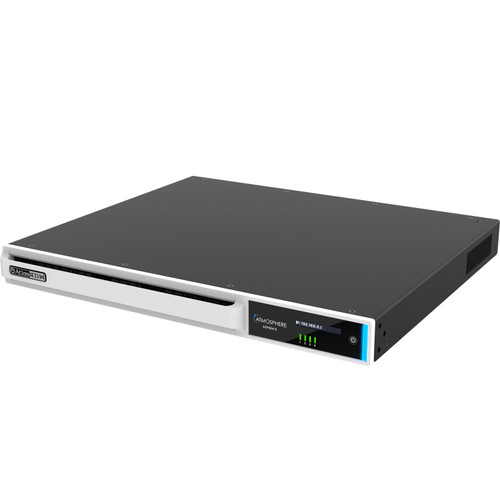

The AZP604-D Atmosphere 4-channel 600W smart amplifier with Dante is an intelligent network-controlled amplifier engineered for commercial audio installations that require powerful amplification, advanced DSP, and seamless AV-over-IP integration. Delivering 600 watts of total output power across four channels, this compact 1RU amplifier combines high-performance amplification, integrated 4x4 Dante/AES67 network audio, and innovative Power Share technology to provide exceptional flexibility for hospitality, education, corporate, retail, healthcare, houses of worship, and distributed multi-zone audio applications.
Powered by an advanced onboard DSP engine, the AZP604-D offers comprehensive signal processing, including matrix mixing, parametric EQ, crossovers, compressors, priority routing, speaker optimization, and peak/RMS limiting for superior loudspeaker protection and consistent audio performance. Integrated AtlasIED speaker tunings simplify commissioning while ensuring optimized performance across compatible loudspeakers. Power Share technology enables amplifier power to be software allocated in 5-watt increments across all four channels, allowing up to 600 watts to be assigned to a single output channel for maximum installation flexibility. The amplifier directly supports 70V, 100V, 4Ω, 8Ω, and 2Ω stable loudspeaker systems, making it suitable for both distributed and low-impedance commercial audio designs.
Integrated 4x4 Dante and AES67 network audio enables low-latency digital audio distribution while simplifying system expansion and reducing analog cabling. Additional enterprise-grade features include a built-in message player and scheduler for automated paging and announcements, native sound masking with dedicated RJ45 outputs for AtlasIED SHS-Series sound masking speakers, dual redundant Ethernet ports, PoE-powered processor monitoring during AC power outages, Atmosphere Cloud remote monitoring, and an intuitive browser-based configuration interface requiring no dedicated software. With third-party control API support, the AZP604-D provides a scalable, future-ready platform for intelligent commercial multi-zone audio systems.
| Number of Output Channel | 4 |
|---|---|
| Total Output Power | 600W |
| Average Output Power per Channel | 150W |
| Max Output Power per Channel | 600W |
| Network | Two ports, software configurable network modes (Switch, Separate, Redundant) |
| Interface | Web GUI |
| Remote Monitoring | Compatible with Atmosphere Cloud |
| Dante | 4x4 |
| Analog Input | 4, balanced |
| Voltage Compatibility | 100 - 240 VAC, 50/60 Hz |
| Dimensions (H x W x D) | 1.7" (43 mm) x 19" (482 mm) x 15.1" (384 mm) |
| Weight | 13.54 lbs (6.14 kg) |
