AtlasIED FS-8T FS Series 8" Premium Surface Mount Speaker 60W 70/100V/8-Ohm - Black

AtlasIED FS-8T Surface Mount Loudspeaker - Black

The IsoFlare™ FS-8T is a wide bandwidth, high sensitivity 8" surface mount loudspeaker designed for the ultimate in fidelity, coverage, and aesthetics.

The IsoFlare™ FS range is the new benchmark in point source technology for prestigious commercial environments. Decades of experience from acoustic and mechanical engineers specializing in this technology have honed existing skills, complemented with the very latest in design & engineering techniques to bring IsoFlare™ to the premium commercial space in an integrated package.

Unlike standard discreet and 'coax' offerings, the IsoFlare™ driver exhibits excellent harmonic alignment between HF and LF sources, the effect of which is to deliver accurate and natural reproduction with superb tonal balance, ensuring seamless integration in any environment with any combination of IsoFlare™ surface-mount, in-ceiling, or pendant formats.

Propagating a spherical wavefront, homogeneously aligned on all axes, the IsoFlare™ point source driver yields an even response throughout the listening area; a constant time delay over the entire frequency spectrum providing exceptional off-axis performance.

Safe and effective Installation of the FS-8T is made simple by way of the included slip free yoke mount, optional universal mount, or compatibility with 3rd party VESA mounts.

Equipped with an extremely low insertion loss 60W transformer for 70V or 100V distributed applications, wattage tap selection and low impedance bypass is easily configurable via a rear mounted slide selector switch with security cover.

For the most discerning designers and integrators, a complete suite of EASE™ (including compatibility with EASE Focus), CF2, 3D CAD, and BIM/Revit families are available for download.

• Minimalistic and clean industrial design for sensitive architectural constraints
• Same consistent voicing, and measured performance across all IsoFlare™ Series products whether Ceiling, Surface, or Pendant mount
• High impact ABS enclosure with UV inhibitor
• Corrosion-resistant, powder coated, aluminum grille for long term durability
• IP65 rated
• Ferrofluid cooled titanium HF with neodymium magnet system
• Weather treated multi fiber cone; stiffness combined with controlled top end roll off, for an accurate midrange
• Fluted Surround Technology – Conventional driver surround profiles can reflect energy back down the cone causing coloration
• Optimized smooth transition baffle (no sharp edges which cause diffraction)

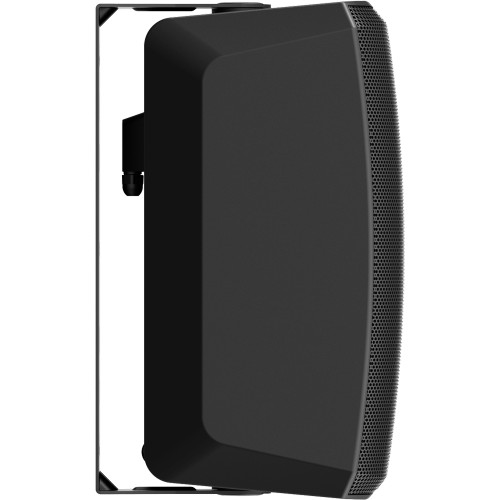

• Slip-Free yoke mount supplied. Optional pan and tilt bracket. Compatible with VESA™ mounts
• Full bandwidth very low insertion loss 60W 70/100V transformer
• High-current premium crossover components (Air Core Inductors & Polypropylene Capacitors)
• Easy Access Tap Selector Switch
• Enhanced voicing presets available via AtlasIED Atmosphere platform
