AtlasIED GSH-G 8" All Weather Outdoor Landscape Speaker Head with 32W 70V Transformer

Part #:
GSH-G
Model #:
GSH-G
MSRP: $512.99
$412.99
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The AtlasIED GSH-G is an all-weather outdoor garden speaker head featuring an 8" coaxial driver and 1/2" tweeter. Designed for use with GSBS-G or GSBT-G bases, its two-piece design enables staged installation, protecting equipment during construction.

Description

AtlasIED GSH-G Outdoor Landscape Speaker Head

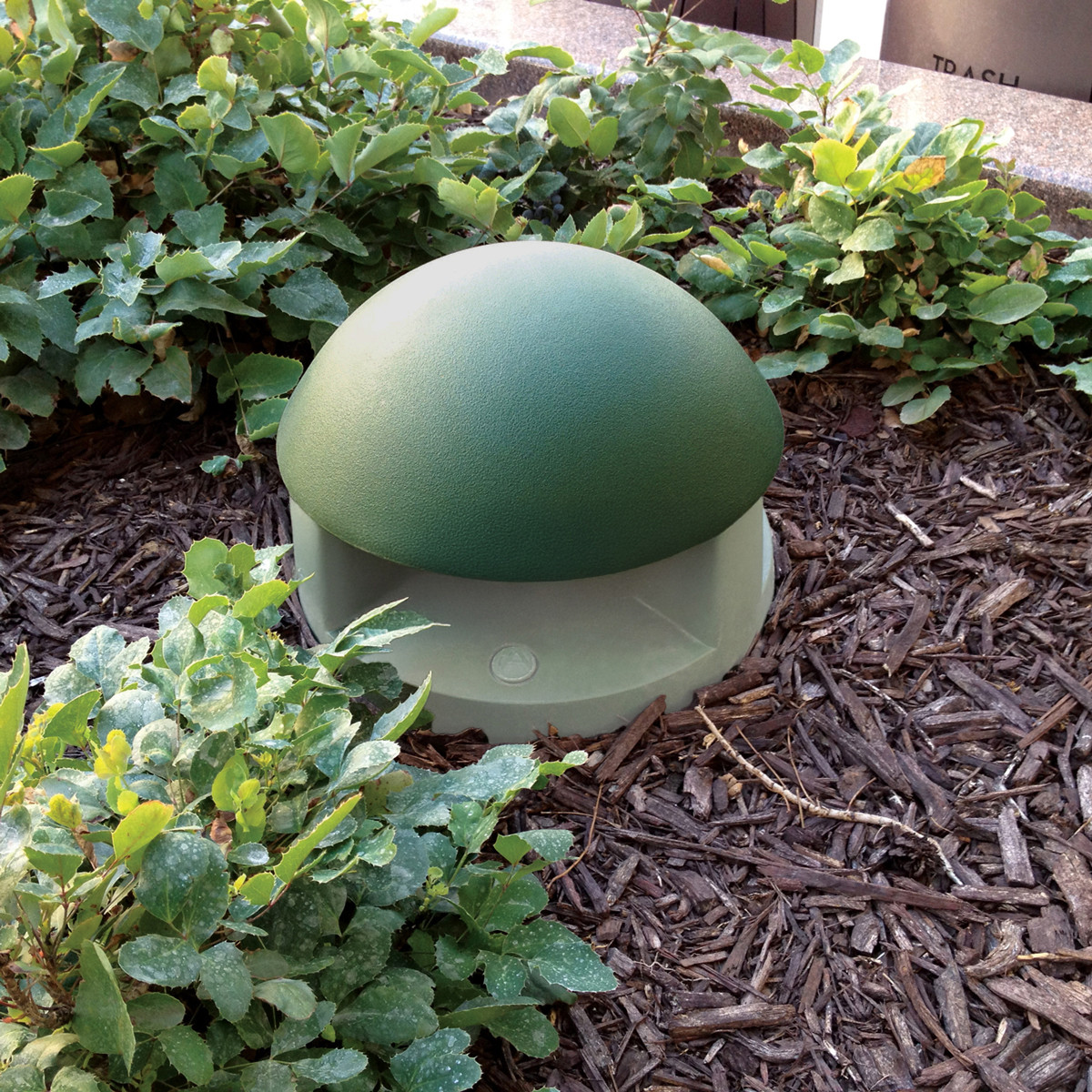

The GSH-G is a rugged, all-weather garden speaker head engineered for professional outdoor installations in theme parks, hotels, and landscaped areas. It features an 8" coaxial polypropylene/Kevlar driver with rubber surround, 1/2" Mylar dome tweeter, 1.5" voice coil, and a 21 oz. magnet, delivering clear, high-quality sound with a 360° horizontal and 50° vertical dispersion pattern.

Designed to pair with the GSBS-G short base or GSBT-G tall base, the GSH-G allows for flexible, elevated, or discreet placement. Its two-piece design supports a two-phase installation process: the base is installed during construction, and the speaker and transformer are added later. This staged approach protects the equipment from damage and reduces the risk of theft during landscaping or construction.

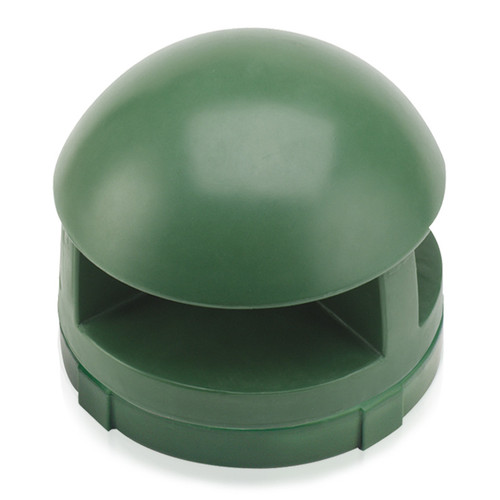

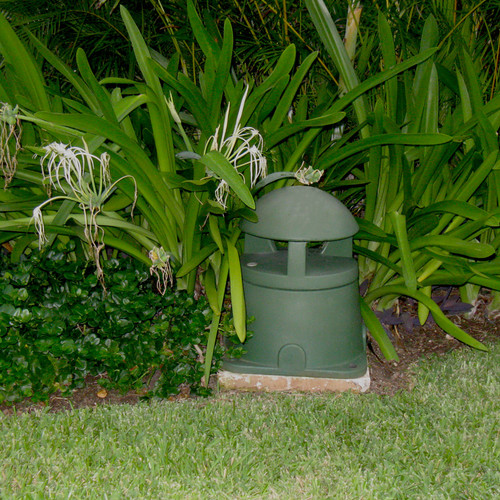

The GSH-G can also be purchased as part of a kit with the base, either GST-G (tall base) or GSS-G (short base), for a complete, ready-to-install outdoor solution. Available in a green finish and backed by a 5-year warranty, the GSH-G ensures long-lasting durability and seamless integration into any outdoor environment.

Note: Base not included. GSBS-G (short base) or GSBT-G (tall base) sold separately.

Features

  • All-weather, outdoor-rated garden speaker head
  • 8" coaxial polypropylene/Kevlar driver with 1/2" Mylar dome tweeter
  • Two-piece design enables staged, two-phase installation
  • Compatible with GSBS-G short base or GSBT-G tall base
  • Available in green to blend with landscaping
  • Protects equipment during construction and landscaping
  • Can be purchased as part of a kit with base (GST-G or GSS-G)
  • 5-year warranty

Specifications

Speaker Type Deck-mount, coaxial 8" driver with 1/2" Mylar dome tweeter
Driver Cone Material Polypropylene/Kevlar with rubber surround
Voice Coil 1.5" (38.10 mm)
Magnet 21 oz
Frequency Response 43 Hz - 20 kHz
Sensitivity 83.5 dB 1W/1m (Half-space reference)
Power Taps 8W, 16W, 32W with 8Ω bypass (70V/100V transformer)
Dispersion 360° horizontal x 50° vertical
Finish Green
Compatible Bases GSBS-G short base, GSBT-G tall base
Dimensions (Dia x H) 11.5" (292.10 mm) x 7.5" (190 mm)
Weight 13.2 lbs (5.99 kg)
Shipping Weight 18.2 lbs (8.26 kg)
