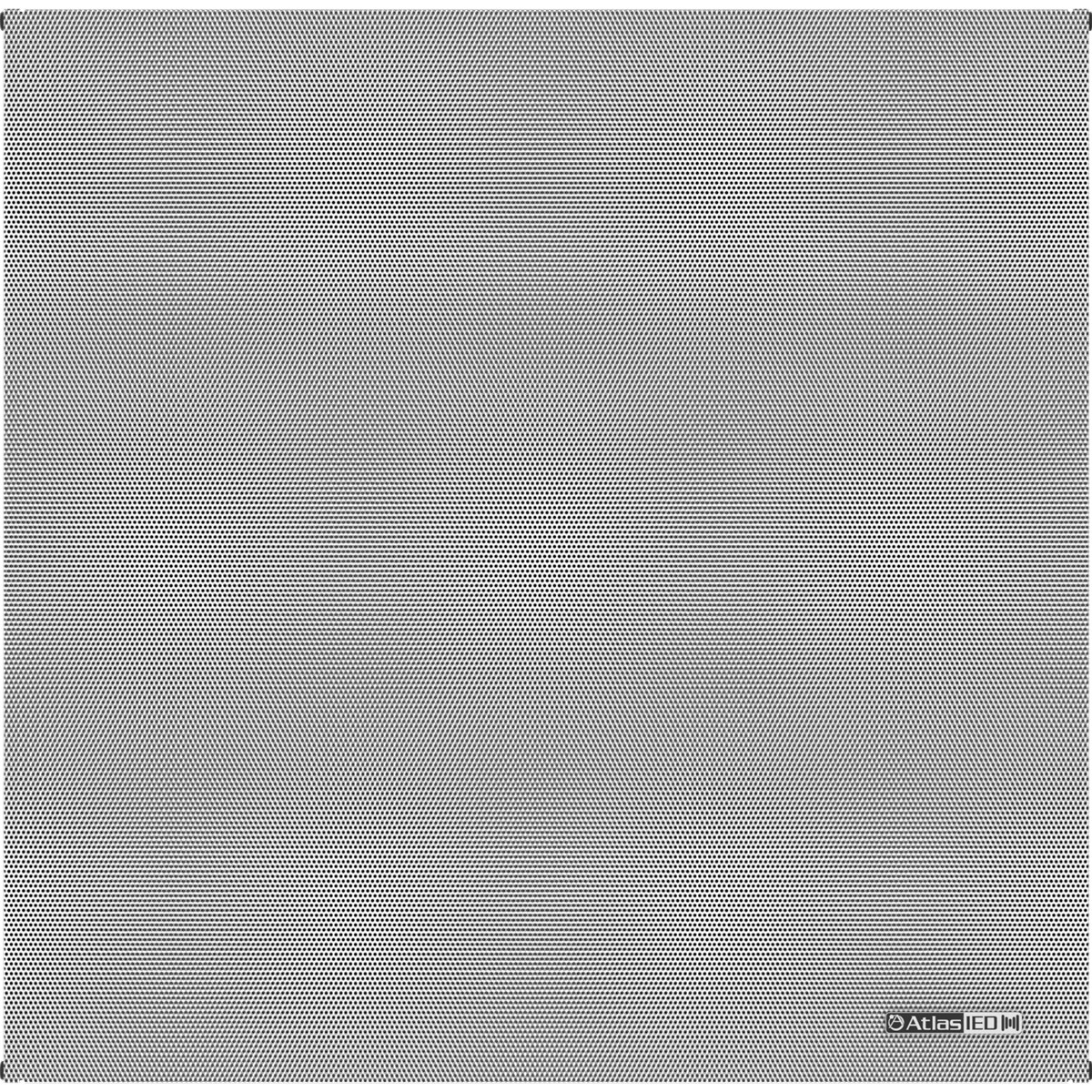

AtlasIED IP-22SYSM POE+ Indoor 8" 2' x 2' Suspended Ceiling Mount IP Speaker with Talkback Microphone

AtlasIED IP-22SYSM 2' x 2' Suspended Ceiling IP Speaker with Talkback

The IP-22SYSM is a high-performance 2' x 2' suspended ceiling IP speaker designed for enterprise-class communication in commercial, educational, healthcare, industrial, and government environments. Featuring an 8" coaxial speaker optimized for voice intelligibility and an integrated omnidirectional condenser microphone, the IP-22SYSM supports two-way communication, monitoring, and advanced alerting directly through SIP/VoIP or compatible notification systems such as InformaCast and Revolution Advanced Notification.

The speaker assembly is pre-assembled with a durable 18-gauge metal grille and neutral white electrostatic powder-coated baffle, providing both security and aesthetic appeal. Auto-provisioning and auto-registration simplify configuration on the network, allowing the IP-22SYSM to function like a VoIP phone on the same VLAN with guaranteed Quality of Service (QoS). GPI/O ports enable integration with third-party systems or triggering critical alerts, ensuring safety and reliability across large facilities.

Powerful and versatile, the IP-22SYSM offers 12W max (802.3AF) or 25W max (802.3AT), wide 105° dispersion, and a frequency response of 86 Hz - 15.5 kHz. It's ideal for high ambient noise areas or large spaces where network-wide audio broadcast, intercom, or paging solutions are required. Pre-assembled with mounting hardware, the IP-22SYSM ensures fast installation, durable operation, and enterprise-grade performance for critical communications.

• 2' x 2' suspended ceiling IP speaker with 8" LF / 1" HF coaxial speaker
• Integrated omnidirectional condenser talkback microphone for two-way communication
• Supports SIP/VoIP, InformaCast, Revolution Advanced Notification, or static SIP registration
• Wide 105° dispersion for consistent audio coverage
• Pre-assembled 18-gauge metal grille with 22-gauge perforated screen and white powder-coated baffle
• Auto-provisioning and auto-registration for quick network setup
• GPI/O ports for triggering external systems or critical alerts
• RJ-45 connector for Ethernet network integration
• Aux audio line-in/out for additional flexibility
• External power supply option if PoE is unavailable
• Phone/night loud ringer for critical alert applications
• Durable, enterprise-grade construction suitable for corporate, education, healthcare, industrial, government, and transportation facilities
