The AtlasIED WPD-MIX42RT is a decor-style wall plate designed for remote activation of the TSD-MIX42RT mic/line mixer. It features a source selector, volume control, LED status indicator, and 8-conductor interface connection for seamless system integration.

Description

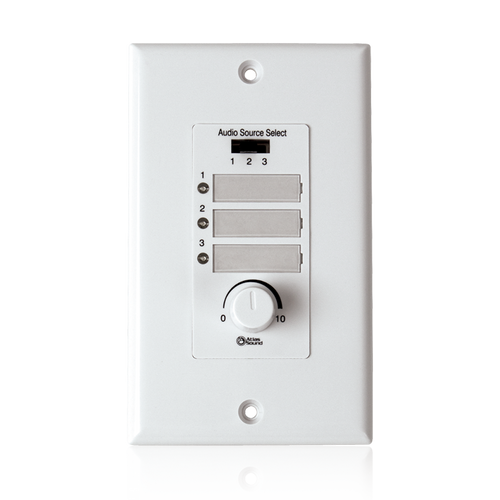

AtlasIED WPD-MIX42RT Wall Plate Input Select Switch and Volume Control

The WPD-MIX42RT is a decor-style remote wall plate engineered for use with the AtlasIED TSD-MIX42RT mic/line mixer. It provides convenient remote control of input source selection and volume level adjustments in installed sound systems, making it ideal for commercial and institutional applications such as classrooms, conference rooms, and hospitality environments.

Equipped with an easy-to-use slide switch for audio source selection and a 10kΩ rotary level control, the WPD-MIX42RT enables precise, hands-on system management at the wall. A red LED indicator provides clear system status feedback, showing the selected and active source.

The single-gang wall plate connects via an 8-conductor interface using Phoenix-style connectors for reliable installation. When used with the TSD-MIX42RT and Juke Box Override, any paging signal automatically overrides the selected source to ensure pages are always heard clearly.

Features

Designed for remote activation of AtlasIED TSD-MIX42RT mic/line mixer
Slide switch for input source selection
Level control via on-board 10kΩ potentiometer
System status LED indicator (red) for active source display
8-conductor interface with Phoenix-style connectors
Label guard for input identification protection
Fits standard single-gang electrical box
Durable decor-style design matches modern installations
5-year warranty

Specifications

Compatibility	AtlasIED TSD-MIX42RT
Control Functions	Input select slide switch, 10kΩ volume potentiometer
Indicators	Red LED system status
Connection	8-conductor interface with removable Phoenix connectors
Mounting	Single-gang wall plate
Finish	Decor-style plate
Dimensions (H x W x D)	4.5" (114 mm) x 2.5" (63 mm) x 0.24" (6.4 mm)
Weight	0.25 lbs (0.11 kg)
Shipping Weight	2.25 lbs (1.02 kg)
