| Overall System |
| UHF Operating Frequency |
Band C: 541.500 to 566.375 MHz |
| Minimum Frequency Step |
25 kHz |
| Frequency Stability |
±0.005%, Phase Lock Loop Frequency Control |
| Modulation Mode |
FM |
| Normal Deviation |
±5 kHz |
| Operating Range |
300' Typical |
| Operating Temperature Range |
41° F (5° C) to 113° F (45° C) |
| Frequency Response |
70 Hz to 15 kHz |
| Receiver |
| Receiving System |
Dual Independent RF Sections, Automatic-Switching Diversity |
| Image Rejection |
60 dB Typical |
| Signal-To-Noise Ratio |
115 dB at 40 kHz Deviation (IEC-Weighted, 75 kHz Maximum Modulation) |
| Total Harmonic Distortion |
1% (10 kHz Deviation at 1 kHz) |
| Sensitivity |
20 dBµV (S/N 70 dB at 5 kHz Deviation, IEC-Weighted) |
| Intermediate Frequency |
65.75 MHz, 10.7 MHz |
| Audio Output (ATTN Switch at “0”) |
| Microphone |
25 mV (at 1 kHz, ±5 kHz Deviation, 10k ohm Load) |
| Instrument |
50 mV (at 1 kHz, ±5 kHz Deviation, 10k ohm Load) |
| Audio Output Attenuator (ATTN) |
Three-Position Switch: 0/ –6 / –12 dB |
| Output Connectors |
| Microphone |
XLRM-Type |
| Instrument |
1/4" (6.3 mm) TS Unbalanced Phone Jack |
| Headphone Output |
| Connector |
1/4" (6.3 mm) TRS (“Stereo”) Phone Jack |
| Power Output |
10 mW+ 10 mW at 1 kHz, ±5 kHz Deviation into 32 ohms; Maximum Output: 220 mW+220 mW into 32 ohms |
| Antenna Terminal Voltage |
DC 10V-12V, 20 mA (BNC-Type Jack) |
| Power Supply |
100–240V AC 50/60 Hz; 8W |
| Accessories Included |
Detachable IEC-type AC Power Cable;Two Flexible UHF Half-Wave Antennas;Link Cable;Rack-Mount Modules |
| Dimensions (H x W x D) |
1.74" (44.0 mm) x 8.31" (211.0 mm) x 9.26" (235.0 mm) |
| Net Weight(Without Accessories) |
3.8 lbs (1.7 kg) |

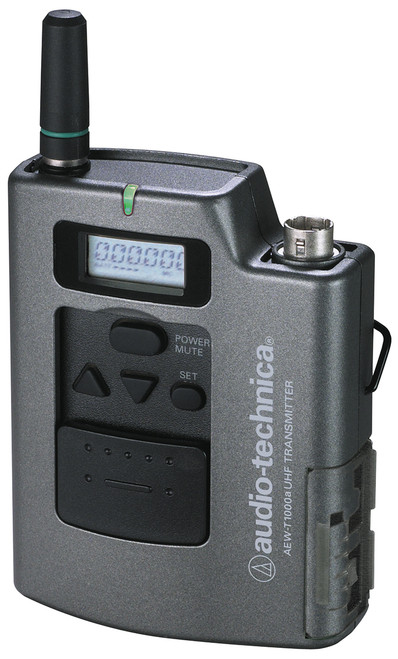

| Body-Pack Transmitter |
| RF Power Output |
High: 35 mW; Low: 10 mW, Nominal |
| Spurious Emissions |
Under Federal Regulations |
| Dynamic Range |
| Microphone |
110 dB, A-Weighted |
| Instrument |
100 dB, A-Weighted |
| Input Connections |
High impedance, Low Impedance, Bias |
| Batteries (Not Included) |
Two 1.5V AA Alkaline |
| Current Consumption |
High: 185 mA; Low:165 mA, Typical |
| Battery Life |
Approximately 8 Hours (High); 10 hours (Low), Depending on Battery Type and Use Pattern |
| Dimensions (H x W x D) |
3.43" (87.0 mm) x 2.60" (66.0 mm) x 0.94" (24.0 mm; Not Including Antenna |
| Net Weight(Without Batteries) |
0.275 lbs (0.125 kg) |
| Handheld Transmitters |
| RF Power Output |
High: 35 mW; Low: 10 mW, Nominal |
| Spurious Emissions |
Under Federal Regulations |
| Dynamic Range |
110 dB, A-Weighted |
| Microphone Element |
Cardioid Condenser |
| Batteries (Not Included) |
Two 1.5V AA Alkaline |
| Current Consumption |
High: 185 mA; Low: 165 mA, Typical |
| Battery Life |
Approximately 6 Hours (High); 8 hours (Low), Depending on Battery Type and Use Pattern |
| Dimensions (Dia x L) |
1.97" (50.0 mm) x 9.41" (239.0 mm) |
| Net Weight(Without Batteries) |
0.625 lbs (0.285 kg) |
