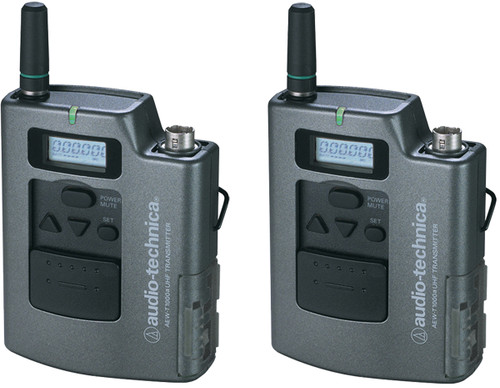

Audio-Technica AEW-5111a Dual Wireless Microphone System with Two Bodypack Transmitters (Discontinued)

Part #:
AEW-5111a
Model #:
AEW-5111a
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments.

Description

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments, Audio-Technica's dual-receiver Artist Elite® 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

The newly upgraded 5000 Series sets standards for wireless live sound, with its dual-compander circuitry that processes high and low frequencies separately. It also features A-T's proprietary IntelliScan™ capability, 996-channel frequency agility, True Diversity operation, soft-touch controls, digital Tone Lock™ squelch, backlit LCD displays on all transmitters, and locking battery doors on the UniPak® body-pack transmitters.

With two independent True Diversity receivers in a single full-rack housing, the 5000 Series conserves rack space while providing outstandingly reliable and flexible performance. Receivers may be linked to form a complete system in which the built-in IntelliScan capability automatically determines and sets the best available frequencies on all linked receivers. Equipped with Ethernet ports, the 5000 Series receiver allows computer management and control from anywhere via new wireless control software; access computer control from a front-of-the-house rack in the same room, or clear across the country, making it truly a 21st century product.

Multiple system configurations are available, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.

Features

  • Two independent receivers in a single housing
  • 996 selectable UHF channels per band and True Diversity reception for interference-resistant operation
  • IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers
  • On-board Ethernet interface for monitoring and controlling system parameters with included AEW Control Interface software
  • Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
  • Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
  • 1/4" external mute switch jack allows user to mute the system quickly and easily
  • AC pass-through allows daisy-chain AC hookup with included IEC jumper cables
  • Link and coordinate multiple receiver channels
  • High-visibility white-on-blue LCD information display
  • Metal full-rack receiver chassis with reinforced mounting ears and rear rack mount capability
  • All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power
  • Backlit LCD displays on transmitters
  • Locking battery door on UniPak body-pack transmitter
  • All components store up to five preset configurations, with customized "names" if desired

Specifications

Overall System
Operating Frequencies: UHF Band C 541.500 MHz to 566.375 MHz (996 Frequencies)
Frequency Stability ±0.005%, Phase Lock Loop frequency Control
Minimum Frequency Step 25 kHz
Modulation Mode FM
Normal Deviation ±5 kHz
Operating Range 300' Typical
Operating Temperature Range 41° F (5° C) to 113° F (45° C)
Frequency Response 70 Hz to 15 kHz
Receiver
Receiving System Dual Independent RF Sections, Automatic-Switching Diversity
Image Rejection 60 dB Typical
Signal-To-Noise Ratio 115 dB at 40 kHz Deviation (IEC-Weighted, 75 kHz Maximum Modulation)
Total Harmonic Distortion 1% (10 kHz Deviation at 1 kHz)
Sensitivity 20 dBµV (S/N 70 dB at 5 kHz Deviation, IEC-Weighted)
Intermediate Frequency 65.75 MHz, 10.7 MHz
Audio Output (ATTN Switch at “0”)
Microphone 25 mV (at 1 kHz, ±5 kHz Deviation, 10k ohm Load)
Instrument 50 mV (at 1 kHz, ±5 kHz Deviation, 10k ohm Load)
Audio Output Attenuator (ATTN) Three-Position Switch: 0/ –6 / –12 dB
Output Connectors
Microphone XLRM-Type
Instrument 1/4" (6.3 mm) TS Unbalanced Phone Jack
Headphone Output
Connector 1/4" (6.3 mm) TRS (“Stereo”) Phone Jack
Power Output 10 mW+ 10 mW at 1 kHz, ±5 kHz Deviation into 32 ohms; Maximum Output: 220 mW+220 mW into 32 ohms
Antenna Terminal Voltage DC 10V-12V, 20 mA (BNC-Type Jack)
Power Supply 100–240V AC 50/60 Hz; 8W
Accessories Included Detachable IEC-type AC Power Cable;Two Flexible UHF Half-Wave Antennas;Link Cable;Rack-Mount Modules
Dimensions (H x W x D) 1.74" (44.0 mm) x 8.31" (211.0 mm) x 9.26" (235.0 mm)
Net Weight(Without Accessories) 3.8 lbs (1.7 kg)

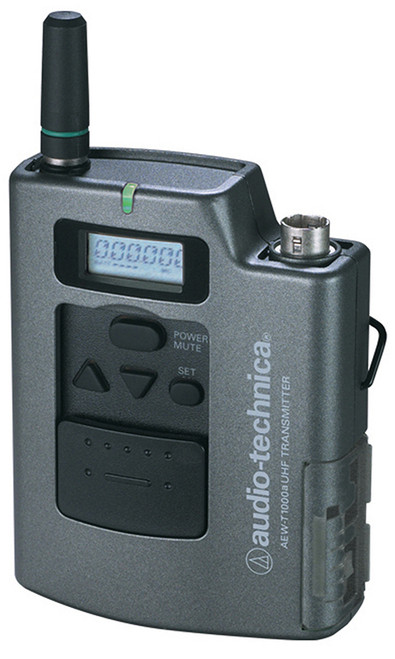

Body-Pack Transmitter
RF Power Output High: 35 mW; Low: 10 mW, Nominal
Spurious Emissions Under Federal Regulations
Dynamic Range
Microphone 110 dB, A-Weighted
Instrument 100 dB, A-Weighted
Input Connections High Impedance, Low Impedance, Bias
Batteries (Not Included) Two 1.5V AA Alkaline
Current Consumption High: 185 mA; Low:165 mA, Typical
Battery Life Approximately 8 Hours (High); 10 Hours (Low), Depending on Battery Type and Use Pattern
Dimensions (H x W x D) 3.43" (87.0 mm) x 2.60" (66.0 mm) x 0.94" (24.0 mm; Not Including Antenna
Net Weight(Without Batteries) 0.275 lbs (0.125 kg)

DOCUMENTS

In The Box

  • (1) AEW-5111a Wireless Microphone UHF Dual Receiver
  • (2) Bodypack Transmitter
  • (1) Detachable IEC-Type AC Power Cable
  • (2) Flexible UHF Half-Wave Antennas
  • (1) Link Cable
  • (1) IEC-Type AC Pass-Through Cable
  • (1) Front-mount Antenna Cables and Connectors
  • (1) CD-ROM with Computer Control Interface Software
