Audio-Technica ATW-3211/831 True Diversity UHF Lavalier Wireless System

Part #:
ATW-3211/831DE2
Model #:
ATW-3211/831
Availability: 6 - 9 Week Lead Time Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Audio-Technica ATW-3211/831 Lavalier 3000 Series wireless system comes with the ATW-R3210 receiver, ATW-T3201 body-pack transmitter and AT831cH cardioid condenser lavalier microphone. The Audio-Technica 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum.

Description

The Audio-Technica fourth-generation 3000 Series wireless systems give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300' (100 m) and are available in two frequency bands – DE2 (470–530 MHz) and EE1 (530–590 MHz) – that provide a class-leading 60 MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference.

Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.

Features

  • Extremely wide 60 MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470–530 MHz) and EE1 (530–590 MHz)
  • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
  • True Diversity operation reduces dropouts
  • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
  • Frequency scan and IR sync functionality for ease of setup
  • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
  • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
  • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
  • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
  • Antenna power available for powered antennas and other in-line RF devices
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Specifications

Overall System
Operating Frequencies Band DE2: 470.125 to 529.975 MHz (2395 frequencies)
Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
Band EF1: 590.000 to 649.975 MHz (2400 frequencies)
Band FG1: 650.000 to 699.875 MHz (1996 frequencies)
Minimum Frequency Step 25 kHz
Modulation Mode FM
Maximum Deviation ATW-T3201: ±38 kHz (THD:10%)
ATW-T3202: ±36 kHz (THD:10%)
Dynamic Range ATW-T3201 Mic input: > 115 dB (A-weighted), typical
ATW-T3201 Inst input: > 112dB (A-weighted), typical
ATW-T3202: > 115 dB (A-weighted), typical
Total Harmonic Distortion
Operating Range 100 m (328')
Operating Temperature Range -5° C to +45° C (23° F to 113° F)
Frequency Response ATW-T3201: 31 Hz to 15,500 Hz
ATW-T3202: 25 Hz to 16,700 Hz
Maximum Simultaneous Use (Recommended) 40 Channels per band
Receiver
Receiving System True Diversity
Image Rejection 60 dB nominal
RF Sensitivity 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
Antenna Power 12 V DC, 160 mA (combined)
Maximum Output Level XLR, balanced: +14 dBV
6.3 mm (1/4"), unbalanced: +8 dBV
Antenna Input BNC-type, 50 ohms
Power Supply 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
Dimensions 210.0 mm x 191.0 mm x 43.4 mm (W x D x H)
8.27" x 7.52" x 1.71" (W x D x H)
Net Weight 1100 g (38.8 oz), without accessories
Accessories Included Two flexible UHF antennas; AC adapter (country dependent); rack-mount Adapters

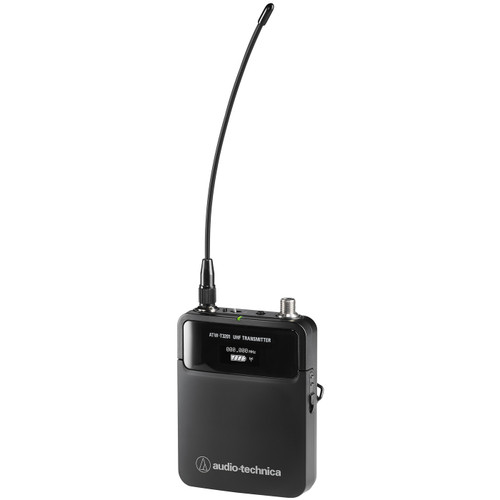

Body-Pack Transmitter
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions Following Federal and National Regulations
Input Connections cH-style screw-down 4-pin connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
High-pass (low-freq. roll-off) 125Hz, 12dB/octave
Batteries Two 1.5V AA, not included
Battery Life High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline)
High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh)
Dimensions 64 mm x 82 mm x 23 mm (W x D x H)
2.52" x 3.22" x 0.91" (W x D x H)
Net Weight 102 g (3.6 oz), without batteries

DOCUMENTS

System Includes

  • (1) AT831cH Cardioid Condenser Lavalier Microphone
  • (1) ATW-R3210 Receiver
  • (1) ATW-T3201 Body-Pack Transmitter
  • (1) Element Cover
  • (1) Windscreen
  • (1) Clothing Clip
