Audio-Technica AT-LP5 Direct-Drive Turntable (Discontinued)

Part #:
AT-LP5
Model #:
AT-LP5
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The AT-LP5 direct-drive turntable brings advanced technology and sleek, contemporary styling together for performance that looks as good as it sounds.

Description

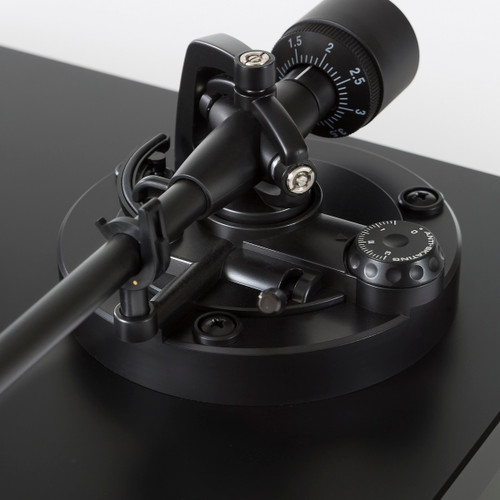

The AT-LP5 direct-drive turntable brings advanced technology and sleek, contemporary styling together for performance that looks as good as it sounds. Born of Audio-Technica's rich analog heritage, the AT-LP5 incorporates a J-shaped tone arm that takes its inspiration from the classic A-T models of the 1960s and '70s. The tone arm features a metallic gimbal suspension system and precision bearings to mitigate tracking errors, and includes an adjustable counterweight and anti-skate control. It comes outfitted with a lightweight (10 g) AT-HS10 headshell and high-performance AT95EX Dual Moving Magnet stereo cartridge, created specifically for this turntable.

Constructed of anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5 is a class leader in limiting low-frequency acoustical feedback. Its precision-machined, die-cast aluminum platter is powered by a direct-drive, high-torque motor, ensuring stable, on-axis rotation at 33-1/3 or 45 RPM. The platter is topped by a 5 mm thick rubber damping mat that improves low-frequency reproduction.

The AT-LP5 features a built-in switchable phono/line preamp that enables it to be connected directly to a computer, home stereo, powered speakers and other components that have no dedicated turntable input. The turntable is also equipped with a USB output for direct connection to a computer, and comes with PC- and Mac-compatible Audacity® software that lets you convert your records to MP3, WAV or other digital audio file formats.

Features

  • Direct-drive, high-torque motor
  • Fully manual operation with two speeds: 33-1/3 and 45 RPM
  • Exclusive AT95Ex Dual Moving Magnet stereo cartridge with replaceable stylus
  • Lightweight AT-HS10 headshell

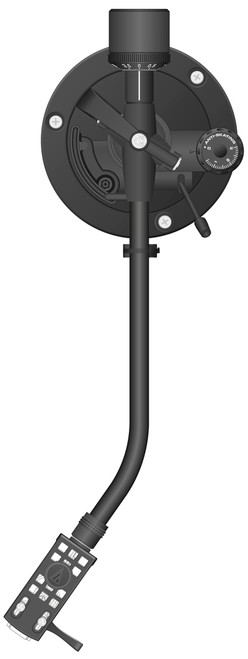

  • J-shaped tonearm, modeled after original Audio-Technica designs from the 1960s and '70s, are engineered to minimize tracking errors
  • Switchable built-in pre-amplifier enables connection to components with or without a dedicated phono input
  • Anti-resonance, die-cast aluminum platter
  • Heavy rubber damping mat for improved low-frequency reproduction
  • Sleek, matte black finish
  • Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable, and Audacity recording software for MAC or PC
  • Included dust cover and mounting hardware

Specifications

Type 2-Speed, Fully Manual Operation
Motor DC Motor
Drive Method Direct Drive Direct Drive
Speeds 33-1/3 RPM, 45 RPM
Turntable Platter Die-Cast Aluminum
Starting Torque >1.6 kgf.cm
Braking System Electronic Brake
Wow and Flutter
Signal-to-Noise Ratio >50 dB
Output Level Pre-Amp “PHONO”: 4 mV Nominal at 1 kHz, 5 cm/sec
Pre-Amp “LINE” 150 mV Nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain 36 dB Nominal, RIAA Equalized
USB Function A/D, D/A - 16 Bit 44.1 kHz or 48 kHz USB Selectable;
Computer Interface - USB 2.0 Compliant Windows XP, Vista or MAC OS X
Power Supply Requirements 120V AC, 60 Hz
Power Consumption 11W
Accessories Included AT95EX Dual Moving Magnet Stereo Cartridge with Replaceable Stylus; AT-HS10 Lightweight Headshell; Power Cord; Dual RCA (male) to Dual RCA (male) Stereo Cable; 45 RPM Adapter; USB cable; Recording Software; Cartridge Alignment and Overhang Adjustment Template; Dust Cover with Mounting Hardware
Dimensions (H x W x D) 6.1" (157 mm) x 17.72" (450 mm) x 13.86" (352 mm)
Weight 23.1 lbs (10.5 kg)
