Audio-Technica AT2020 Cardioid Condenser Microphone

Description

Audio-Technica AT2020 Cardioid Condenser Microphone

Audio-Technica's stringent quality and consistency standards set the AT2020 apart from other mics in its class. Its low-mass diaphragm is custom-engineered for extended frequency response and superior transient response. With rugged construction for durable performance, the microphone offers a wide dynamic range and handles high SPLs with ease. The AT2020: the new standard for affordable side-address studio condensers.

Features

• The price/performance standard in side-address studio condenser microphone technology
• Ideal for project/home-studio applications
• High SPL handling and wide dynamic range provide unmatched versatility
• Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
• Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone

Specifications

Element	Fixed-Charge Back Plate, Permanently Polarized Condenser
Polar Pattern	Cardioid
Frequency Response	20 - 20,000 Hz
Open Circuit Sensitivity	–37 dB (14.1 mV) re 1V at 1 Pa
Impedance	100 ohms
Maximum Input Sound Level	144 dB SPL, 1 kHz at 1% T.H.D.
Noise	20 dB SPL
Dynamic Range (Typical)	124 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	74 dB, 1 kHz at 1 Pa
Phantom Power Requirements	48V DC, 2 mA Typical
Output Connector	Integral 3-Pin XLRM-Type
Accessories Furnished	Stand Mount for 5/8"-27 Threaded Stands; 5/8"-27 to 3/8"-16 Threaded Adapter Soft Protective Pouch
Audio-Technica Case Style	R7
Dimensions (Dia x L)	2.05" (52 mm) x 6.38" (162 mm) Maximum Body Diameter
Weight	0.760 lbs (0.345 kg)

DOCUMENTS

In The Box

• (1) AT2020 Cardioid Condenser Microphone

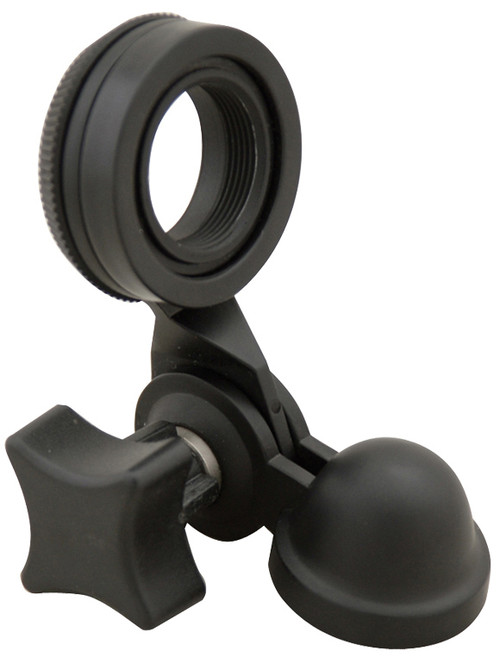

• (1) Stand Mount

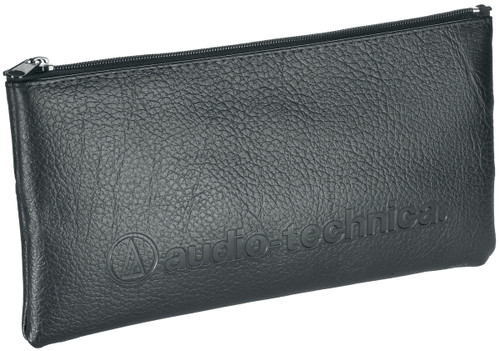

• (1) Soft Protective Pouch
