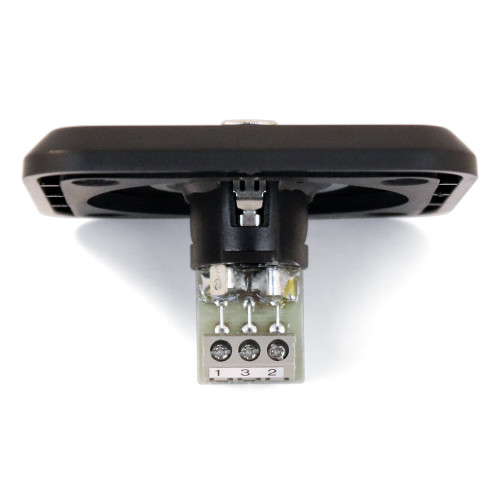

Featuring a phantom-powered mute switch with a lighted “on” indicator, the AT8647QM/S shock-mount plate effectively isolates mounted microphones from impact vibration and mechanical noise normally transmitted from the surface. It is intended for use with microphones mounted on lecterns, pulpits, conference tables and similar surfaces. Designed especially for UniPoint® and Engineered Sound® gooseneck microphones, it may be used with other lightweight plug-in microphones with XLRM-type outputs.
The AT8647QM/S incorporates a sturdy yet flexible suspension panel that provides mechanical isolation.
| Mute Function | Silent mute circuit designed to work with condenser (powered) microphones |
|---|---|
| Switch | Mechanical push-on/push-off |
| Input Connector | 3-pin XLRF-type connector |
| Output connectors | Terminal Screws |
| Off (Mute) Attenuation | 50 dB at 1000 Hz, 35 dB at 100 Hz, 30 dB at 50 Hz |
| Phantom Power Requirements | 24-48V DC, 3 mA typical |
| Output Impedance | 360 ohms |
| Dimensions (H x W x D) | 0.61" (15.5 mm) x 3.17" (80.5 mm) x 4.10" (104 mm) |
| Weight | 3.5 oz (99 g) |
