Audio-Technica ATW-1421/L System 20 PRO Dual Lavalier Microphone System
The ATW-1421/L System 20 Digital Wireless System includes one ATW-R1440 4-channel receiver, two ATW-T1401 body-pack transmitters, and two MT830cW lavalier microphones. Operating in the interference-free 2.4 GHz range, it delivers crystal-clear 24-bit/48 kHz digital audio. Users can switch between Standard (10 channels) and HD (20 channels) modes to optimize latency or channel count. Each receiver channel pairs with up to four transmitters, while remote mounting and linking of up to five chassis provide flexible configuration. Features include AES128 encryption, OLED displays, sweat-resistant connectors, and compatibility with Wireless Manager software. Ideal for professional applications requiring reliable, high-performance wireless audio.
- Features
Features
- Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
- Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
- User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
- Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
- Up to five chassis can be linked and used simultaneously
- Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
- Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
- Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
- Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
- Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
- AES128 encryption for security
- Compatible with Syslog protocol
- Ability to configure, monitor, and save device settings as projects in Wireless Manager
- Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

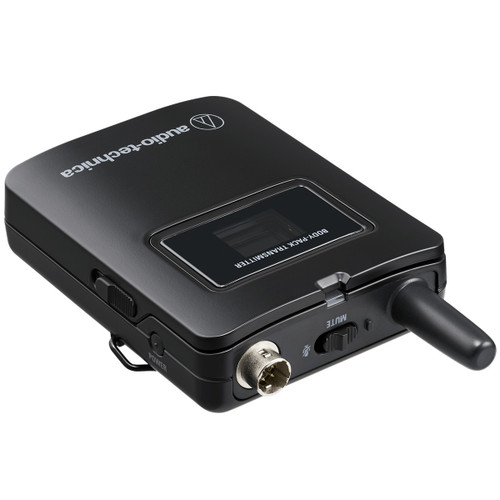

- Water and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector

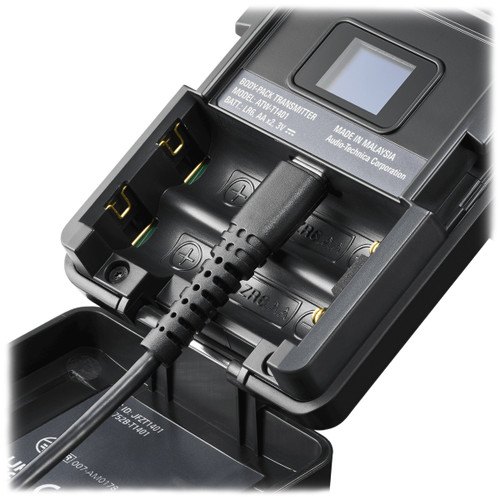

- Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
- Supports mixed output for situations with limited input channels
- Specification
Operating Frequencies 2,402 to 2,480 MHz Dynamic Range 120 dB (A-weighted), typical Total Harmonic Distortion < 0.05%, typical Maximum Simultaneous Use (recommended) Standard: 10 channels
HD mode: 20 channels
It depends on the region and environmentSystem Frequency Response 20 to 20,000 Hz
Varies depending on the microphone to be installedDelay Standard: 2.8 ms
HD mode: 6.7 msAudio Sampling Rate Standard: 24-bit/48 kHz
HD mode: 24-bit/48 kHzEncryption Method AES128 Dimensions (H x W x D) Receiver: 8.3" (209.9 mm) x 1.7" (42.5 mm) x 6.5" (165.6 mm)
Transmitter: 2.5" (63.7 mm) x 4.2" (107.4) x 0.9" (22.7 mm)Weight Receiver: 1.8 lbs (0.82 kg)
Transmitter: 0.18 lbs (0.08 kg) (without Batteries)- In The Box
In The Box
- (1) ATW-R1440 Receiver Module (4‑Channel Digital Receiver)
- (2) ATW‑T1401 UniPak Body-Pack Transmitters
- (2) MT830cW Lavalier Microphones
- (4) Detachable 2.4GHz Antennas
- (1) AC Adapter
- (1) 12" RJ12 Link Cable
- (1) Rack‑mount Brackets (Short & Long) with 5 Screws
- (4) Rubber Feet
