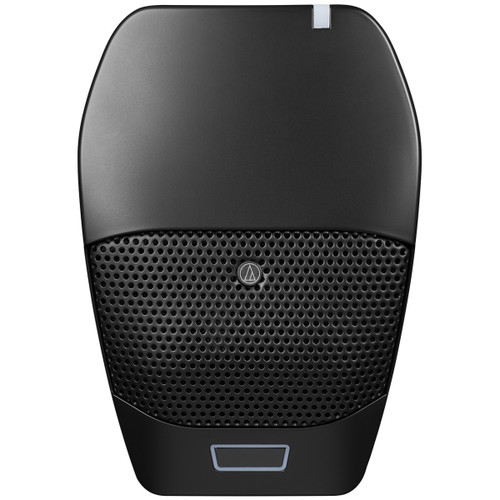

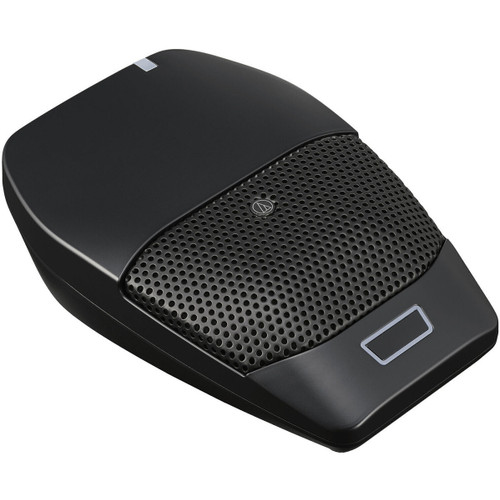

Audio-Technica ATW-1426 System 20 PRO Dual Boundary Microphone System

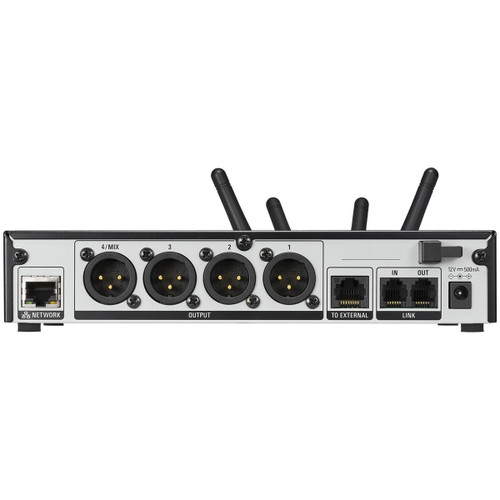

The ATW-1426 offers digital 24-bit/48 kHz wireless operation for exceptional sound quality and reliable performance. Operating in the 2.4 GHz range, it ensures plug-and-play use free from TV interference. Users can switch between Standard mode (10 channels) for minimal latency or HD mode (20 channels) for maximum channel count. Receiver units can be docked in the chassis or remotely mounted up to 328 feet away via Ethernet for flexible setups. Up to five chassis can be linked and used simultaneously, with each receiver channel paired with up to four transmitters for quick switching between configurations. The chassis features a System ID Display showing RF signal level, system ID, battery status, and system link.
Each half-rack receiver includes rack ears for secure installation, and two chassis can be combined for full rack space. Compatible with Audio-Technica’s Wireless Manager software, the system allows centralized control, configuration, monitoring, and project saving. An auto-lock function prevents accidental operations, while AES128 encryption ensures secure transmissions. The system supports the Syslog protocol and features OLED screens on transmitters and receivers for clear status readouts. The water- and sweat-resistant cW-style connector on body-pack transmitters secures lavalier and headworn mics with a locking 4-pin connector. Charging terminals work with ATW charging docks to recharge NiMH batteries. The system also supports mixed output for setups with limited input channels.
