Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)
Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)
Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)
Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)
Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)
Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)

By Audio-Technica

Audio-Technica ATW-1701 System 10 Camera-Mount Digital Wireless System (Discontinued)

Write a Review
Part #:
ATW-1701
Model #:
ATW-1701
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Audio-Technica System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between.

Description

With its compact and portable design, the Audio-Technica System 10 Camera-Mount high-fidelity digital wireless system is ideally positioned to capture media on the go. Perfect for video production, electronic news gathering (ENG) and every mobile application in between, the receiver features multiple mounting options to accommodate a variety of cameras and recording devices.

Like all of the products in the System 10 digital wireless family, the Camera Mount provides three levels of diversity assurance: frequency, time and space. Instantaneous channel selection, sync and setup make the Camera-Mount extremely easy to use, while its digital 24-bit/48 kHz wireless operation provides the ultimate in sound quality and dependable performance. Also, as the receiver operates in the 2.4 GHz range, it remains completely free from TV interference at all times.

Select a Wireless Essentials® microphone or cable to complete the system.

Features
  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Operates in the 2.4 GHz range – completely free from TV interference
  • Ultra compact receiver size with multiple mounting options
  • Selectable balanced and unbalanced output jacks with level control for use with most cameras and recording devices
  • Internal rechargeable 12-hr battery
  • Separate headphone port and volume control for local audio monitoring
  • Multi-pairing function to link a single receiver with up to eight body-pack or handheld transmitters
  • Three levels of diversity assurance: frequency, time & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync and setup

Specifications
Overall System
Operating Frequencies 2.4 GHz ISM band
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion
Operating Range 30 m (100') radius, 60 m (200') diameter typical
Open range environment with no interfering signals
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response 20 Hz to 20 kHz
Depending on microphone type
Audio Sampling 24 bit / 48 kHz
ATW-R1700 Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level 3.5 mm (1 /8"), TRS balanced: +6 dBV Dual mono, unbalanced: 0 dBV
Monitor Output Level 3.5 mm (1/8"): 70 mW +70 mW (32Ω)
Power Supply 100-240V AC (50/60 Hz) to 5V DC 0.5A switched mode USB-type external power supply
Internal Battery 3.7V rechargeable Li-ion battery
Battery Life 12 hours
Depending on environmental conditions
Battery Charging Time 4 hours 30 minutes
Depending on environmental conditions
Charging Temperature Range 5° C to +35° C (41° F to 95° F)
Accessories Included Two antennas; camera shoe mount; AC adapter (USB-type); USB cable; 3.5 mm (1/8") stereo cable
Dimensions (H x W x D) 3.60" (91.4 mm) x 2.20" (56.0 mm) x 1.09" (27.8 mm)
Net Weight 3.7 oz (105 g)
ATW-T1001 UniPak Transmitter
RF Output Power 10 mW
Spurious Emissions Following federal and national regulations
Input Connection Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions (H x W x D) 4.21" (107.0 mm) x 2.76" (70.2 mm) x 0.98" (24.9 mm)
Net Weight (without Batteries) 3.5 oz (100 g)

DOCUMENTS

In the Box
  • ATW-R1700 Camera-Mount Receiver
  • ATW-T1001 UniPak Transmitter

Related Products

Sold Out

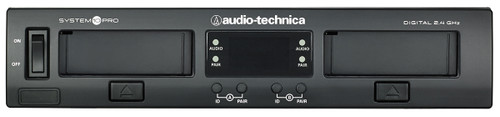

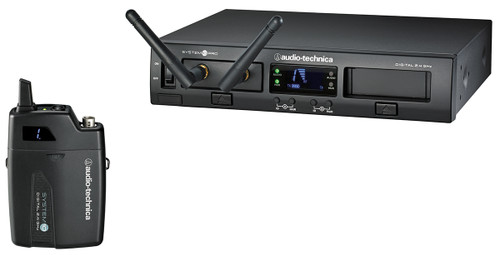

Audio-Technica ATW-1301 Rack-Mount Digital Wireless System (Discontinued) Audio-Technica ATW-1301 Rack-Mount Digital Wireless System (Discontinued)
