Audio-Technica ATW-3193b UHF Wireless Headset System (Discontinued)

By Audio-Technica

Audio-Technica ATW-3193b UHF Wireless Headset System (Discontinued)

Name: Audio-Technica ATW-3193b UHF Wireless Headset System (Discontinued)
Brand: Audio-Technica
SKU: AT-ATW-3193b
Price: 629 USD
Availability: OutOfStock

Write a Review

Part #:

ATW-3193b

Model #:

ATW-3193b

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The ATW-3193b includes the ATW-R3100 receiver, ATW-T310 UniPak® transmitter and BP893cW MicroEarset omnidirectional condenser headworn microphone.

Description

The ATW-3193b includes the ATW-R3100 receiver, ATW-T310 UniPak® transmitter and BP893cW MicroEarset omnidirectional condenser headworn microphone.

Audio-Technica's third-generation 3000 Series wireless system offers up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. We've simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The versatile ATW-T310b UniPak® body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.

The packaging bundles offer an affordable, easy solution for wireless needs for everything from corporate AV presentations and church/house of worship applications to broadcasting and theater sound reinforcement.

Features

996 - 1001 UHF frequencies in one of two UHF frequency ranges
Available in two frequency bands:

Band C: 541.500 MHZ to 566.375 MHz (TV Channels 25 - 30)
Band I : 482.000 MHz to 507.000 MHz (TV Channels 16 - 20)

Antenna power available for powered antennas & other in-line RF devices
Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
True Diversity operation reduces dropouts
Advanced digital Tone Lock™ squelch effectively blocks stray RF and communicates transmitter data for receiver display
Transmitters offer backlit LCD & dual-color LED
Locking battery compartment with secure latch and robust design
Ground-lift switch helps eliminate audible hum caused by ground loops
Balanced and unbalanced audio output jacks
ATW-T310b UniPak® transmitter includes Super Hi-Z input that provides optimum load for guitar pickups

Specifications

Overall System
Minimum Frequency Step	25 kHz
Modulation Mode	FM
Maximum Deviation	±35 kHz
Dynamic Range	> 110 dB (A-weighted), typical
Total Harmonic Distortion	< 1% (at 1 kHz, ±17.5 kHz deviation)
Operating Range	100 m (300'), typical
Operating Temperature Range	-5º C to +45º C (23º F to 113º F)
Frequency Response	70 Hz to 15 kHz (+1 dB, -3 dB)

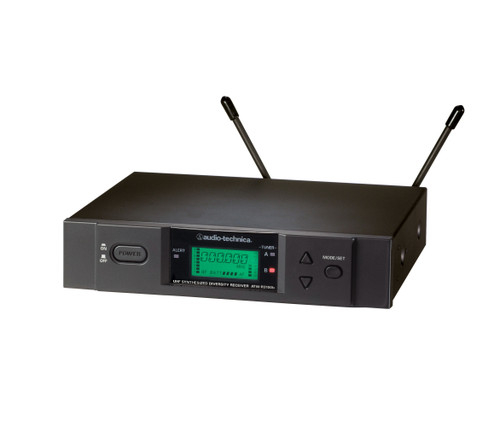

ATW-R3100 Receiver
Receiving System	True diversity
Image Rejection	60 dB nominal, 55 dB minimum
RF Sensitivity	20 dBuV at 60 dB S/N ratio
Maximum Output Level	XLR, balanced: +9 dBV; ¼" (6.3 mm), unbalanced: +7 dBV
Antenna Input	BNC-type, 50 ohms Bias voltage 12V DC, 60 mA, each
Power Requirements	12-18V DC, 500 mA
Dimensions (H x W x D)	1.73" (44 mm) x 8.27" (210 mm) x 6.47" (164.4 mm)
Net Weight	2.4 lbs (1.1 kg)
ATW-T310 Transmitter
RF Power Output	High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Spurious Emissions	Following federal and national regulations
Input Connection	Four-pin Locking Connector. Pin 1: GND, Pin 2: INST INPUT Pin 3: MIC INPUT, Pin 4: DC BIAS +5V
Batteries	Two 1.5V AA, not included
Battery Life	High: 6 hours (alkaline); Low: 8 hours (alkaline)
Dimensions (H x W x D)	3.43" (24 mm) x 2.6" (66 mm) x 0.94" (87.0 mm)

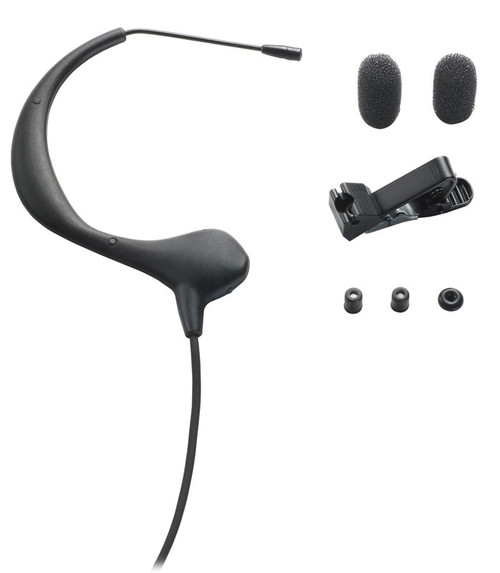

BP893c Headworn Microphone
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Omnidirectional
Frequency Response	20-20,000 Hz
Dynamic Range	88 dB, 1 kHz at Max SPL (wired only)
Signal-to-noise Ratio	68 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical (wired only)
Dimensions (L x Dia)	0.32" (8.1 mm) x 0.10" (2.6 mm)
Weight	2.0 g (0.07 oz)
