Audio-Technica ATW-801/G Wireless Guitar System (Discontinued)

Description

Featuring sleek, stackable, contemporary styling, Audio-Technica's ATW-801/G Wireless Guitar Systems are designed for reliable performance, easy setup and clear, natural sound quality.

This fixed-frequency system is available in three traveling VHF frequencies (169.505, 170.245, and 171.905 MHz).

Features

• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
• Power, RF, and AF Peak indicators
• Volume control, 1/4" output jack and user-adjustable squelch
• Rugged unidirectional dynamic element on handheld microphone/transmitter
• Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
• Professional locking connector on UniPak® body-pack transmitter
• Available in 7 system configurations

Specifications

Overall System
Operating Frequency	VHF highband, 169 MHz to 172 MHz
Modulation Mode	FM
Maximum Deviation	±10 kHz
Dynamic Range	≥90 dB (A-weighted), typical
Total Harmonic Distortion
Operating Range	200' (60 m) typical Open range environment with no interfering signals
Operating Temperature Range	40° F (4° C) to 110° F (43° C) Battery performance may be reduced at very low temperatures
Frequency Response	80 Hz to 13 kHz

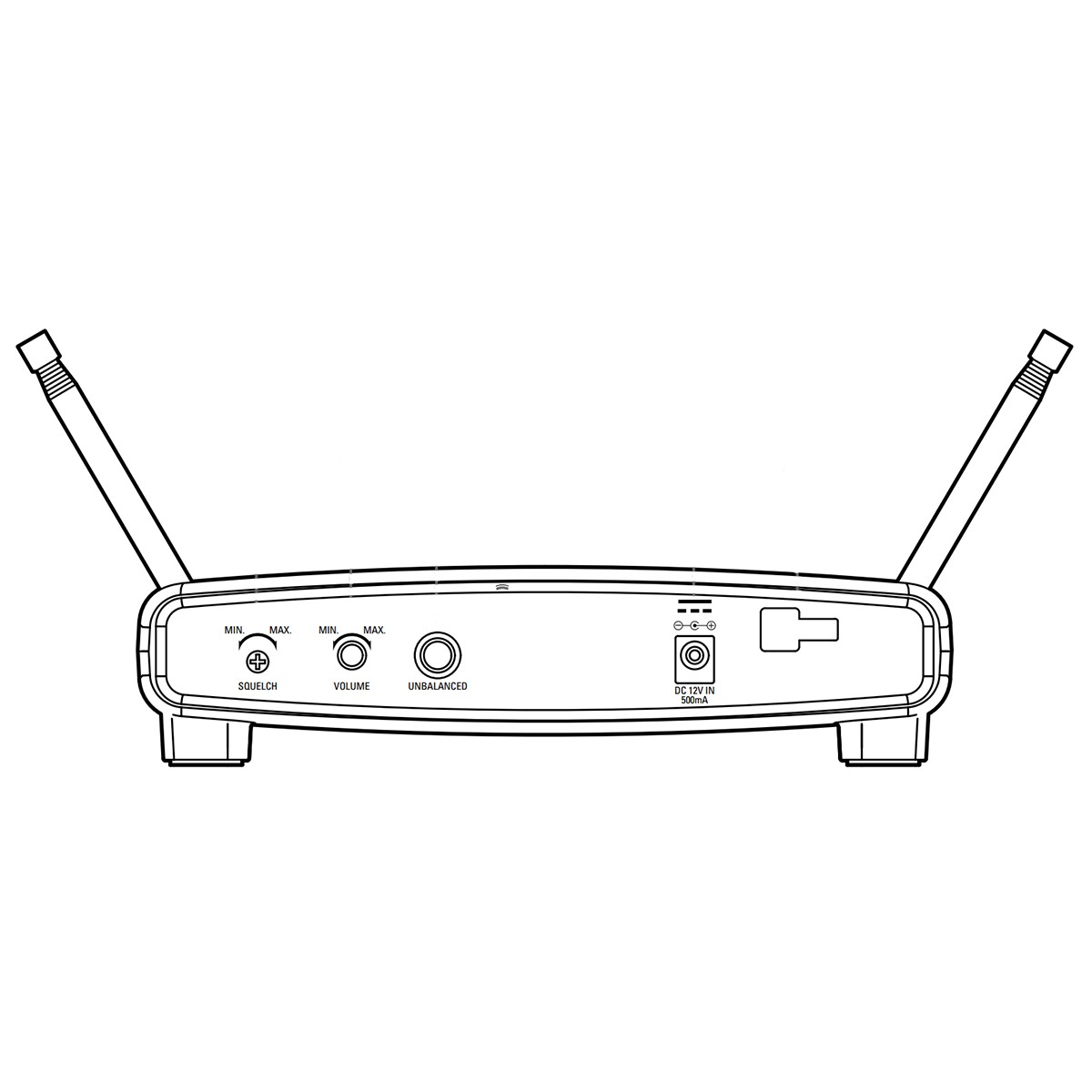

ATW-R800 Wireless Receiver
Receiving System	Non-diversity, single-channel, dual antenna system
Image Rejection	50 dB minimum
RF Sensitivity (50 ohms termination)	20 dBuV at 60 dB S/N ratio
Nominal Output Level (1/4	700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
Power Supply	100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Accessories Included	Power supply
Dimensions (H x W x D)	1.82" (46.2 mm) x 7.48" (190.0 mm) x 5.06" (128.5 mm)

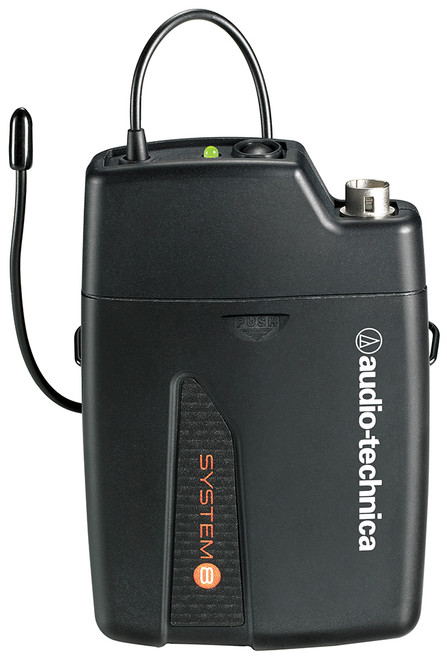

ATW-T801 UniPak Transmitter
Net Weight	11.8 oz (335 g)
RF Output Power	10 mW
Spurious Emissions	Following federal and national regulations
Input Connection	Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries (not included)	Two 1.5V AA Alkaline
Battery Life	8 hours (alkaline) Depending on battery type and use pattern
Dimensions (H x W x D)	4.08" (103.7 mm) x 2.76" (70.2 mm) x 0.98" (24.9 mm)
Net Weight (without batteries)	3.0 oz (84.5 g)

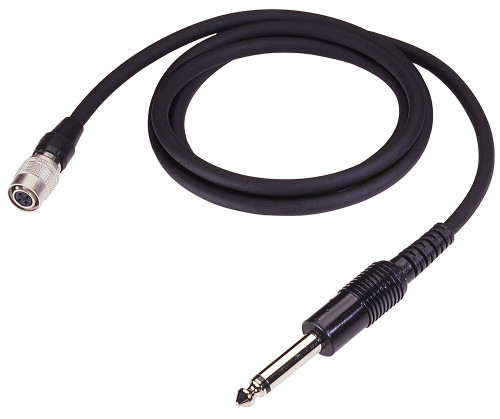

AT-GcW Instrument Cable
Length	36" (0.9 m)
Connectors	1/4" phone plug to HRS connector for use between instrument and Audio-Technica UniPak® transmitters

DOCUMENTS

In the Box

• (1) ATW-R800 Wireless Receiver
• (1) ATW-T801 UniPak Transmitter
• (1) AT-GcW Guitar/ Instrument Cable
