- Description
Details

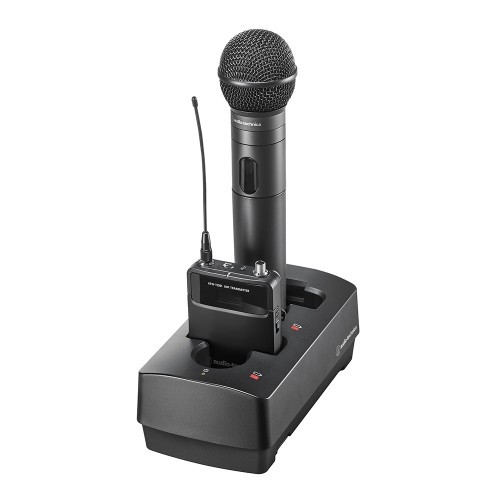

The ATW-CHG3AD bundles the ATW-CHG3 two-bay charging station with the AD-SA1230XA AC adapter.
The charging station works with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters, charging NiMH batteries (not included) while they are housed within the transmitters. The station will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3 is equipped with power and charging status indicator LEDs for easy monitoring.
When used with AT8687 link kit(s) (sold separately), up to five ATW-CHG3 charging stations can be linked and powered by the single AD-SA1230XA AC adapter included in this bundle.
- Features
Features
- ATW-CHG3 two-bay charging station with AD-SA1230XA AC adapter
- Charging station works with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters
- Charges NiMH batteries while they are housed within a transmitter
- Automatically shuts off if alkaline or damaged batteries are detected
- Indicator LEDs for easy monitoring of power and charging status
- Up to five ATW-CHG3 charging stations can be linked and powered by a single AD-SA1230XA AC adapter (using AT8687 link kits, sold separately)
- Transmitters power off automatically when placed in the charging station and power on automatically when removed
- Specification
Power Requirements 12V DC 3.0 A Charging Output 3.6V DC 500 mA (x2) Power Consumption 4.9W (when 2 transmitters are charging)
27.4W (when 5 units are connected and 10 transmitters are charging)Charging Time Approx. 6.5 hours (1,900 mAh rechargeable battery) Depending on battery type and use pattern Operating Temperature Range 0° C to 40° C (32° F to 104° F) Dimensions H x W x D (Charger Only) 2.70" (68.5 mm) x 7.28" (185 mm) x 3.90" (99 mm) Net Weight (Charger Only) 0.88 lbs (0.40 kg) - Documents
