Audio-Technica ATW-2120C 2000 Series Wireless Handheld Microphone System
Usually arrives in 5-9 business days.
The Audio-Technica ATW-2120b Wireless Handheld Microphone System is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship.
Audio-Technica ATW-2120b Wireless Handheld Microphone System
Audio-Technica's 2000 Series is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price.
Features switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220b handheld transmitters and/or ATW-T210b body-pack transmitters in any combination. Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series' 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica's Tone Lock™ squelch plus an easy-to-read LCD information display.
| System | |
|---|---|
| Operating Frequencies (UHF) | Band I : 487.125 to 506.500 MHz |
| Number of Channels | 10 total |
| Modulation Mode | FM |
| Maximum Deviation | ±40 kHz |
| Dynamic Range | > 110 dB (A-weighted), typical |
| Total Harmonic Distortion | < 1% (at 1 kHz, ±20 kHz deviation) |
| Operating Range | 100 m (300'), typical Open range environment with no interfering signals |
| Operating Temperature Range | 5º C to 45º C41º F to 113º F Battery and LCD performance may be reduced at very low temperatures |
| Frequency Response | 100 Hz to 15 kHz (+1 dB, -3 dB) |
| ATW-R2100 Receiver | |
| Receiving System | True diversity |
| Image Rejection | 60 dB nominal, 55 dB minimum |
| RF Sensitivity | 20 dBuV at 60 dB S/N ratio (50 ohms termination) |
| Antenna Input | BNC-type, 50 ohms Bias voltage 12V DC, 60 mA, each |
| Power Requirements | 12-18V DC, 500 mA |
| Maximum Output Level | XLR, balanced: +9 dBV 1/4" (6.3 mm), unbalanced: +4 dBV |
| Balanced Audio Output Attenuator | Two position switch: 0 / -12 dB |
| Dimensions | 1.73" (44 mm) x 8.27" (210 mm) x 6.39" (162.2 mm) |
| Weight | 2.20 lbs (0.99 kg) |

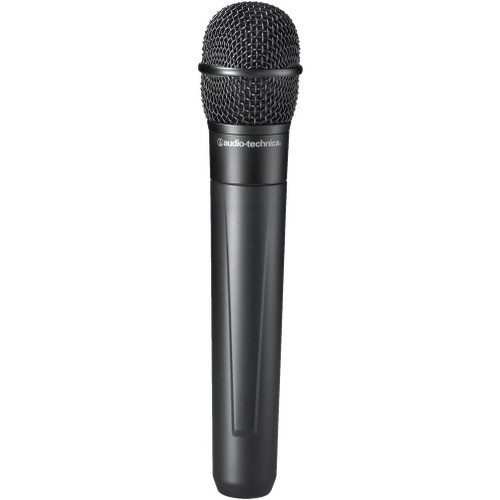

| ATW-T220 Handheld Microphone | |
| RF Power Output | High: 30 mW; Low: 10 mW (switchable), at 50 ohms |
| Spurious Emissions | Following federal and national regulations |
| Microphone Element | Dynamic cardioid |
| Batteries | Two 1.5V AA, not included or two 1.2V AA NiMH (not included) |
| Battery Life | High: 7 hours (alkaline) Low: 9 hours (alkaline) |
| Dimensions (L x Dia) | 9.13" (232 mm) x 1.89" (48 mm) |
| Weight | 0.55 lbs (252 g) |
