Audio-Technica BP892 MicroSet Subminiature Omnidirectional Condenser Headworn Microphone (AT8539 Power Module Included) (Discontinued)

Part #:
BP892
Model #:
BP892
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

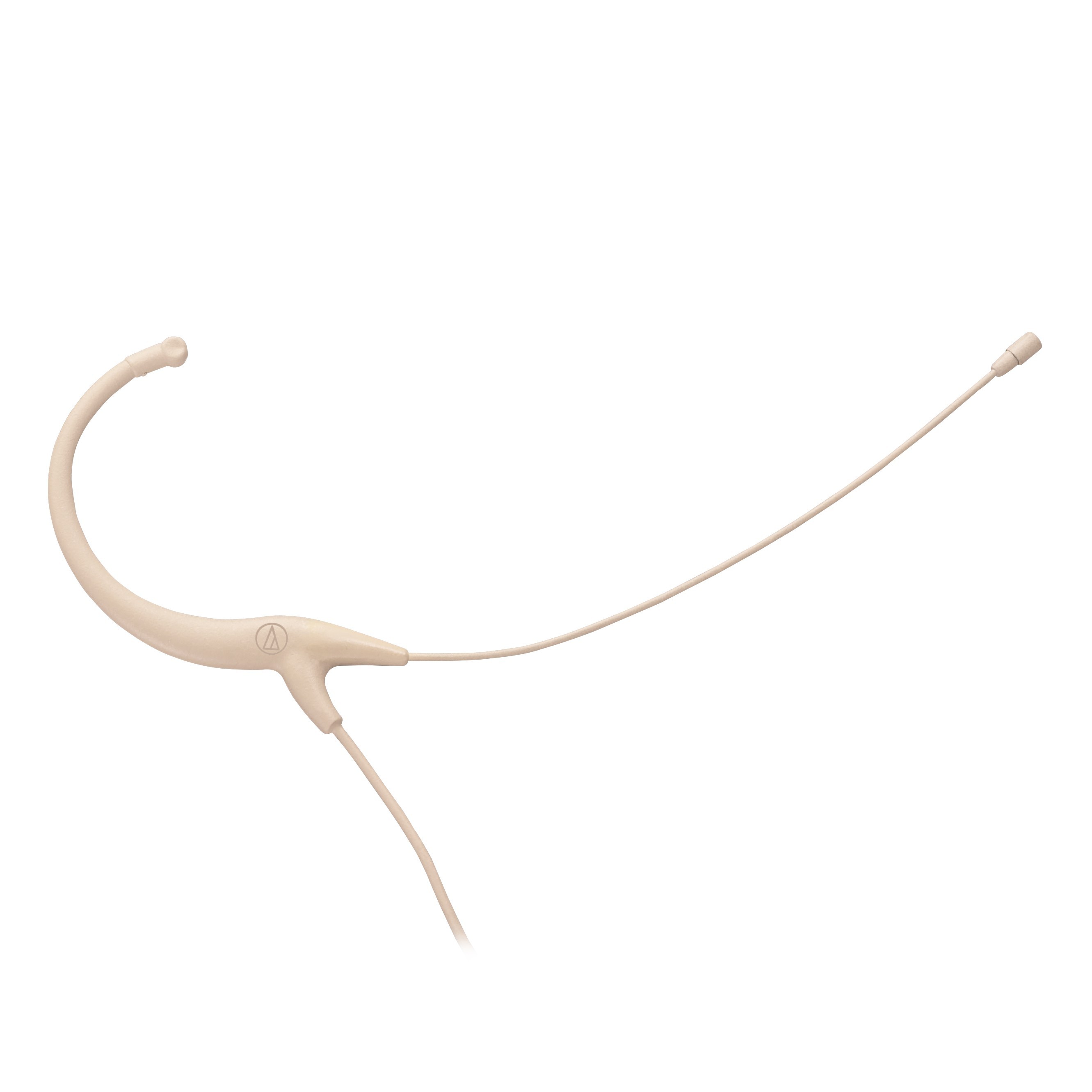

Audio-Technica's high-SPL BP892 MicroSet® offers the ultimate in low-profile, high-performance audio. Delivering clear and accurate sound in an inconspicuous package, the ultra-lightweight BP892 hooks securely behind either ear and can be worn for hours without fatigue.

Description

The Audio-Technica BP892 is a headworn condenser microphone with an omnidirectional polar pattern. It is designed to provide intelligible natural audio for stage and television talent, lecturers, and houses of worship.

The microphone features a diameter of only 2.6 mm and offers an ergonomic under-ear design: its flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses. The microphone requires 11V to 52V phantom power for operation.

The microphone includes a 1.4 m (55") permanently attached miniature cable. Its free end connects to the provided AT8539 power module via a locking 4-pin connector. The connector is also compatible with all Audio-Technica UniPak® body-pack transmitters. The output of the power module is a 3-pin XLRM-type connector.

A recessed switch in the power module permits a choice of flat response or low-frequency roll-off (via integral 80 Hz high-pass UniSteep® filter) to help control undesired ambient noise. The microphone comes equipped with a power module, a cable clip, two windscreens, two element covers, a moisture guard and a belt clip. A protective carrying case is also included. The microphone is available in black and beige.

Features

  • Handles high sound pressure levels with ease
  • Extremely intelligible natural audio
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility
  • Ergonomic under-ear design-flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit
  • High-pass filter on power module provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

Specifications

Element Fixed-charge back plate, permanently polarized condenser
Polar Pattern Omnidirectional
Frequency Response 20-20,000 Hz
Low Frequency Roll-Off 80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity –49 dB (3.5 mV) re 1V at 1 Pa
Impedance 250 ohms (wired only)
Maximum Input Sound Level 135 dB SPL, 1 kHz at 3% T.H.D.
Dynamic Range (Typical) 104 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio 63 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 2 mA typical (wired only)
Current Consumption 0.1 mA typical at 5V (wireless only)
Voltage Range 2.5-11V (wireless only)
Switch Flat, roll-off (wired only)
Output Connector (Power Module) Integral 3-pin XLRM-type
Cable 1.4 m (55") long (permanently attached to microphone), 1.6 mm (0.06") diameter
Audio-Technica Case Style M31
Accessories Furnished AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens
Dimensions Microphone: 8.1 mm (0.32") long, 2.6 mm (0.10") dia.
Boom: 98.4 mm (3.87") long, 1.07 mm (0.04") dia.
Weight Microphone, boom & earpiece: 1 lbs (2.6 g) Power module (wired only): 1 lbs (85 g)

DOCUMENTS

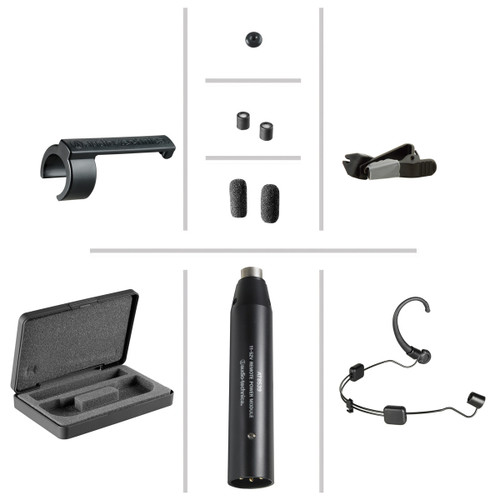

In The Box

  • (1) BP892cH (Black) or BP892cH-TH (Beige) Headworn Microphone
  • (1) AT8539 Power Module
  • (1) AT8440 Cable Clip
  • (1) AT8464 Dual-Ear Mount
  • (2) AT8157 Windscreens
  • (2) AT8156 Element Covers
  • (1) Moisture Guard
  • (1) Belt Clip
  • (1) Carrying Case
