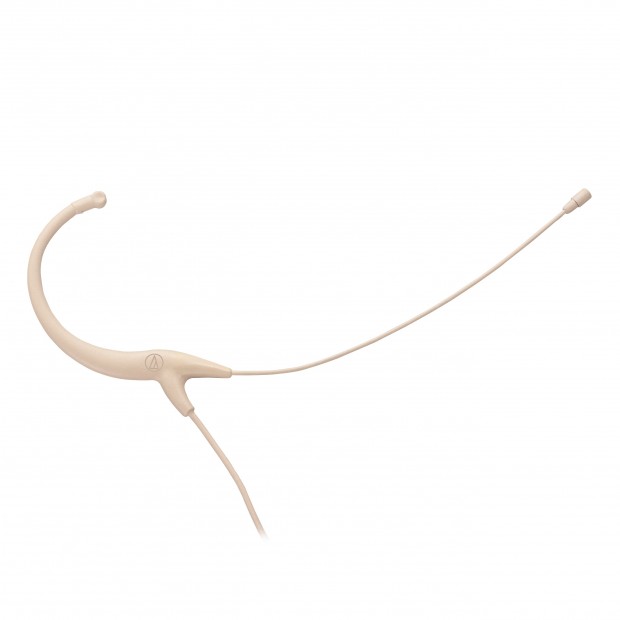

Audio-Technica BP892c Subminiature Omnidirectional Condenser Headworn Microphone (Discontinued)
Audio-Technica BP892c Subminiature Omnidirectional Condenser Headworn Microphone (Discontinued)
By Audio-Technica

Audio-Technica BP892c Subminiature Omnidirectional Condenser Headworn Microphone (Discontinued)

Write a Review
Part #:
BP892C
Model #:
BP892c
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

BP892c MicroSet Subminiature Omnidirectional Condenser Headworn Microphone. BP892 Subminiature Omnidirectional Condenser Headworn Microphone, less power module. 1.4 m (55") permanently attached miniature cable, unterminated.

Description

BP892c MicroSet Subminiature Omnidirectional Condenser Headworn Microphone. BP892 Subminiature Omnidirectional Condenser Headworn Microphone, less power module. 1.4 m (55") permanently attached miniature cable, unterminated. Includes AT8440 cable clip, two AT8157 windscreens, two AT8156 element covers, a moisture guard, and a carrying case.

The microphone features a flat, extended frequency response and other outstanding performance specifications, resulting in extremely intelligible, natural audio for stage and television talent, lecturers and houses of worship. Protected by a highly durable Parylene coating, the new headworn mic is built to stand up to the rigors of day-to-day use.

Features
  • Handles high sound pressure levels with ease.
  • Extremely intelligible natural audio.
  • Inconspicuous, lightweight headset with capsule diameter of just 2.6 mm is ideal for applications requiring minimum visibility.
  • Ergonomic under-ear design—flexible, lightweight contoured loop hooks behind the ear
  • RoHS compliant—free from all substances specified in the EU directive on hazardous substances.

Specifications
Element Fixed-charge back plate, permanently polarized condenser
Polar pattern Omnidirectional
Frequency response 20-20,000 Hz
Low frequency roll-off 80 Hz, 18 dB/octave (wired only)
Open circuit sensitivity –49 dB (3.5 mV) re 1V at 1 Pa
Impedance 250 ohms (wired only)
Maximum input sound level 135 dB SPL, 1 kHz at 3% T.H.D.
Dynamic range (typical) 104 dB, 1 kHz at Max SPL (wired only)
Signal-to-noise ratio1 63 dB, 1 kHz at 1 Pa
Phantom power requirements 11-52V DC, 2 mA typical (wired only)
Current Consumption 0.1 mA typical at 5V (wireless only)
Voltage Range 2.5-11V (wireless only)
Switch Flat, roll-off (wired only)
Output connector (power module) Integral 3-pin XLRM-type
Cable 1.4 m (55") long (permanently attached to microphone), 1.6 mm (0.06") diameter
Audio-Technica case style M31
Accessories furnished AT8539 power module (wired only); AT8440 cable clip; two AT8157 windscreens
Dimensions Microphone:8.1 mm (0.32") long, 2.6 mm (0.10") dia. Boom:98.4 mm (3.87") long, 1.07 mm (0.04") dia.
Weight Microphone, boom & earpiece: 1 lbs (2.6 g) Power module (wired only): 1 lbs (85 g)
