Perfect for speech, theater, orchestra and choir sound reinforcement and recording, the U853RW cardioid condenser hanging microphone is equipped with UniGuard® innovations that offer unsurpassed immunity from radio frequency interference. With a consistent cardioid polar pattern, the mic offers natural sound from any angle, and superior gain before feedback. It is phantom powered and features an integral 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns.
| Element | Fixed-Charge Back Plate, Permanently Polarized Condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 30 - 20,000 Hz |
| Low Frequency Roll-Off | 80 Hz, 18 dB/Octave |
| Open Circuit Sensitivity | –39 dB (11.2 mV) re 1V at 1 Pa |
| Impedance | 250 ohms |
| Maximum Input Sound Level | 139 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range (Typical) | 115 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 70 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA Typical |
| Switch | Flat, Roll-Off |
| Output Connector (Power Module) | Integral 3-pin XLRM-type |
| Cable | 25.0' (7.6 m) Long (Permanently Attached to Microphone), 0.13" (3.2 mm) Diameter, 2 Conductor Shielded Cable with TA3F-Type Connector |
| Optional Interchangeable Elements | UE-H Hypercardioid (100°) UE-O Omnidirectional (360°) UE-UL UniLine® (90°) |

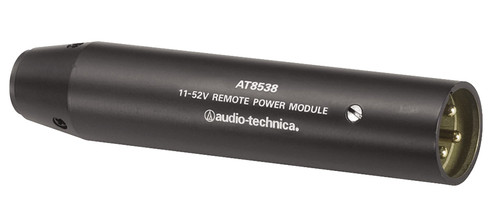

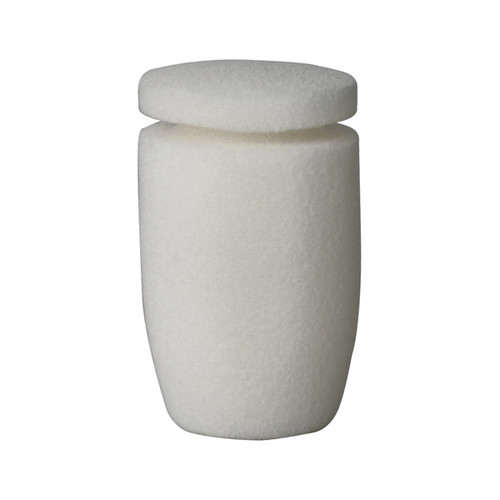

| Accessories Furnished | AT8153 Two-Stage Foam Windscreen; AT8451 Steel Hanger; AT8538 Power Module; AT8438 5/8"-27 Stand Adapter |
| Audio-Technica Case Style | M12 |
| Dimensions (Dia x L) (Microphone) | 0.48" (12.2 mm) x 1.34" (34 mm) |
| Dimensions (Dia x L) (Power Module) | 0.74" (18.9 mm) x 3.66" (92.9 mm) |
| Weight (Microphone) | 0.031 lbs (0.014 kg) |
| Weight (Power Module) | 0.181 lbs (0.081 kg) |
