Auditorium Sound System with 4 SD4 Ceiling Speaker Arrays, RMA240BT 240W Rack Mount Bluetooth Mixer Amplifier and Samson All-In-One Dual Wireless System

By Pure Resonance Audio

Auditorium Sound System with 4 SD4 Ceiling Speaker Arrays, RMA240BT 240W Rack Mount Bluetooth Mixer Amplifier and Samson All-In-One Dual Wireless System

Name: Auditorium Sound System with 4 SD4 Ceiling Speaker Arrays, RMA240BT 240W Rack Mount Bluetooth Mixer Amplifier and Samson All-In-One Dual Wireless System
Brand: Pure Resonance Audio
SKU: ADSS-4SD4RMA240BT
Price: 2898.54 USD
Availability: InStock

Write a Review

Part #:

ADSS-4SD4RMA240BT

Model #:

ADSS-4SD4RMA240BT

Current Stock:

Availability: Currently Backordered - Contact Us for Comparable Solutions

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This auditorium sound system offers a complete solution that can significantly increase audio clarity and intelligibility even in the most challenging spaces with equipment that supports superior quality from input to output and is ideal for small to medium size lecture halls, cafeterias, auditoriums, and more. It provides 360° of seamlessly smooth coverage which greatly improves speech intelligibility and provides powerful, crystal-clear music reproduction. It only takes minutes to install, simply remove one ceiling title and drop the SD4 into any standard drop ceiling.

Description

Inside the Design

This impressive auditorium PA sound system is designed to offer the ultimate in top quality, cost-effective equipment for your needs and budget and easy-to-use sound reinforcement. The system includes four Pure Resonance Audio SD4 ceiling speakers featuring four 6.5" very fast transient response aluminum-woofer drivers that are very powerful and stable. Working in unison these drivers produce clean, powerful dynamic sound. The included Samson Concert 288 offers easy setup, flawless operation, and premium sound, it's an ideal high-performance UHF wireless solution for vocal performances and presentations where two users are needed. Also included is the Pure Resonance Audio RMA240BT 5 channel Bluetooth commercial rack mount mixer amplifier, which provides 240 watts of high-performance Class H power. This auditorium sound system is the ideal solution for a variety of auditorium applications and its very easy to install, setup, and operate.

Sound System Features:

Simple to install into any standard 2' x 2' or 2' x 4' drop ceiling
Exceptional 360° x 180° high-quality sound coverage
Easily stream media wirelessly via Bluetooth-enabled mixer amplifier
Dual-channel, high-performance UHF wireless microphone system with a range of 300ft
Included IR remote allows you to control volume, play/pause, skip, and more all from a distance
Ready to work long hours thanks to the mixer amplifier's forced air-cooling fan

About the System Components

This Pro Acoustics designed sound system includes four Pure Resonance Audio SD4 SuperDispersion omnidirectional drop tile ceiling speaker arrays, a Pure Resonance Audio RMA240BT 5-channel 240W commercial Bluetooth rackmount mixer amplifier, and a dual-channel, frequency-agile Samson Concert 288 all-in-one wireless microphone system providing a best-in-class 300' wireless range and can support the simultaneous operation of up to 24 systems/48 performers. The Concert 288 All-In-One features a CH288 dynamic handheld microphone, LM5 lavalier microphone, and HS5 headset microphone. We've also included two 6' XLR cables and 500ft of 16/2 non-plenum speaker wire to complete your sound system.

Not sure if this is the right Auditorium Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

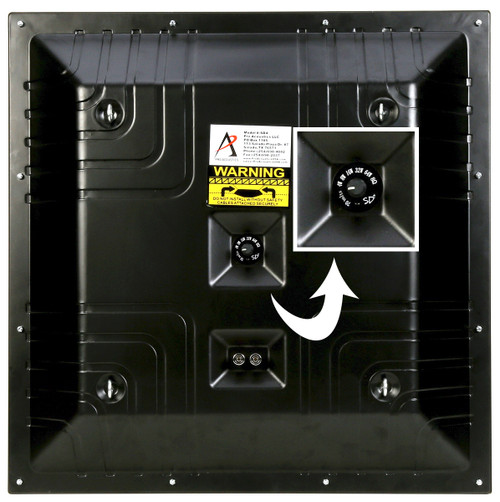

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Arrays:

SuperDispersion® 360 x 180 Omni Directional Coverage
Engineered for voice, paging and music applications
Infinite-baffle in-ceiling speaker drops into standard 2x2 ceiling tile openings
Powerful – 160W at 8Ω, 64W at 70V
4 - 6.5" High compliance aluminum woofers with ported bass response and high frequency dome tweeters
Uniquely designed fire retardant ABS housing may be painted to match any décor
Impedance: 8 ohms nominal with built-in 70 Volts (4, 8, 16, 32, 64 Watt taps), easily adjustable by rotating switch
Metal Backbox that is acoustically engineered and sealed for maximum sonic performance
Safety cable kit included

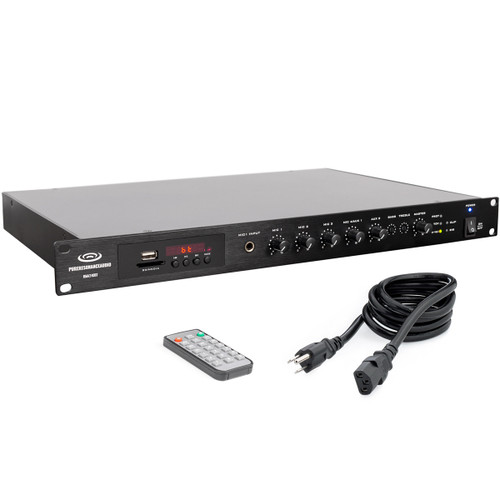

Pure Resonance Audio RMA240BT 240W Rack Mount Bluetooth Mixer Amplifier:

1 RU chassis, high-efficiency, and lightweight design
MP3 media player supports USB, SD, Bluetooth and FM tuner
Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
Bass and treble tone controls
Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
Advanced high-performance power amplifier circuit
4-16Ω/70V speaker output
240W rated output power
Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
Remote control

Samson Concert 288 All-In-One Dual Channel Wireless System:

Dual-channel, high-performance UHF wireless system
1/4" audio cable, AC adapter and rackmount kit included
CR288 Wireless Receiver:

Multiple frequency options for interference-free performance in any environment
Up to 24 systems can be operated simultaneously (region dependent)
Separate Volume controls for each wireless signal
Dual balanced XLR outputs for routing signals to two separate mixer channels
1/4" unbalanced mix output to combine signals to one output channel

CH288 Handheld Transmitter:

Q6 Dynamic Microphone capsules
Offers up to eight hours of battery life using two AA batteries
300' operating range

CB288 Beltpack Transmitter:

LM5 Lavalier Microphone with locking connector
HS5 Headset Microphone with locking connector
Offers up to eight hours of battery life using two AA batteries
300' operating range

System Includes

(4) Pure Resonance Audio SD4 SuperDispersion® Drop Tile Ceiling Speaker Arrays

(4) Safety Cable Kits: (16) Steel Safety Cables, (16) Carabiners and (16) Fastlinks

(1) Pure Resonance Audio RMA240BT 5-Channel 240W Bluetooth Rack Mount

(1) IR Remote Control
(1) Power Cord

(1) Samson Concert 288 All-In-One Dual Channel Wireless System:

(1) Samson CR288 Receiver
(1) Samson CH288 Handheld Transmitter with Q6 Dynamic Microphone Capsule
(1) Samson CB288 Beltpack Transmitter
(1) Samson LM5 Lavalier Microphone (with Locking Connectors)
(1) Samson HS5 Headset Microphone (with Locking Connectors)
(1) 1/4" to 1/4" Audio Cable
(1) Rackmount Kit
(1) Power Supply

(2) Pure Resonance Audio XLRF-6-PREP Female XLR to Prep Cables - 6ft

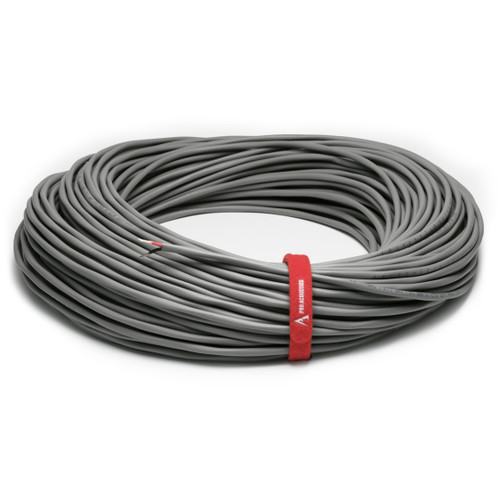

(500') West Penn 225 16/2 Non-Plenum Speaker Wire
