Audix AP62 C210
Audix AP62 C210 Wireless Microphone System with R62 True Diversity Receiver, H60/OM2 Handheld Transmitter, and ADX10 Lavalier Microphone
Audix AP62 C210 Wireless Microphone System with R62 True Diversity Receiver, H60/OM2 Handheld Transmitter, and ADX10 Lavalier Microphone
Audix AP62 C210 Wireless Microphone System with R62 True Diversity Receiver, H60/OM2 Handheld Transmitter, and ADX10 Lavalier Microphone
Audix AP62 C210 Wireless Microphone System with R62 True Diversity Receiver, H60/OM2 Handheld Transmitter, and ADX10 Lavalier Microphone

By Audix Microphones

Audix AP62 C210 Wireless Microphone System with R62 True Diversity Receiver, H60/OM2 Handheld Transmitter, and ADX10 Lavalier Microphone

Write a Review
Part #:
AP62C210
Model #:
AP62 C210
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Audix AP62 C210 is a professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the ADX10 cardioid lavalier system. This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic, ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

Description

Audix AP62 C210 Wireless Microphone System (522 - 586 MHz)

A professional true diversity wireless system featuring the Audix OM2 handheld transmitter with the ADX10 cardioid lavalier system.

This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include active directional antennas and antenna distribution system for up to four systems (8 channels).

Features

R62 2-Channel True Diversity Receiver:

  • 64 MHz wide spectrum tuning receiver
  • 2560 Tunable frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

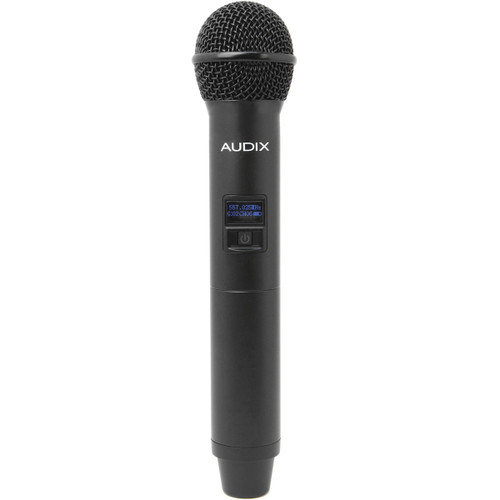

H60 OM2 Handheld Transmitter:

  • 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries

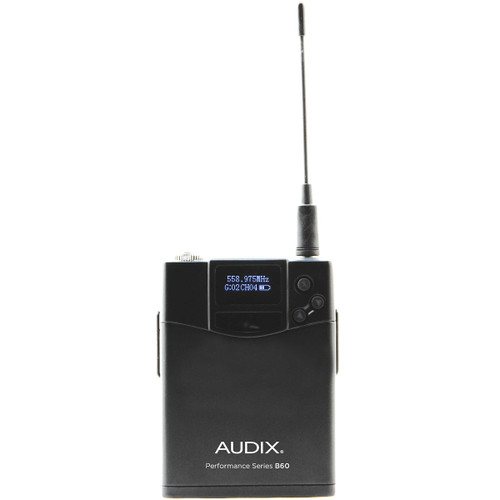

B60 L10 Bodypack Transmitter:

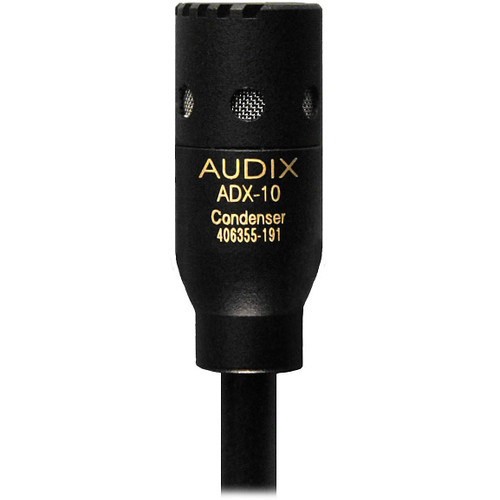

  • 64 MHz wide spectrum transmitter with ADX10 lavalier microphone
  • Durable metal housing
  • 14 Hour run time - AA batteries

Specifications
R62 True Diversity Receiver
Frequency Range 522 MHz – 586 MHz
Bandwidth 64 MHz
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D) 1.73" (44 mm) x 15.98" (406 mm) x 8.23" (209 mm)
Weight 4.64 lbs (2.12 kg)
H60/OM2 Handheld Transmitter
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Batteries Included (2) AA 1.5 V
14hr battery life
Max Sound Pressure Level >140 dB (depending on capsule)
Dimensions (H x Body Dia) 10.43" (265 mm) x 2.1" (53 mm)
Weight 0.69 lbs (0.31 kg)
B60 Bodypack Transmitter
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Batteries Included (2) AA 1.5 V
14hr batter life
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions (H x W x D) 3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)
Weight 0.19 lbs (0.09 kg)

DOCUMENTS

In The Box
  • (1) R62 64 MHz 2-Channel True Diversity Receiver
  • (1) H60 Handheld Transmitter with OM2 Capsule Module
  • (1) B60 Bodypack Transmitter with ADX10 Lavalier Mic
  • (2) Antennas
  • (1) Audio Cable
  • (1) Clip
  • (1) Pouch
  • (4) AA Batteries
  • (1) Power Supply
  • (1) Rackmount Hardware
  • (2) BNC Cables
  • User Guide
