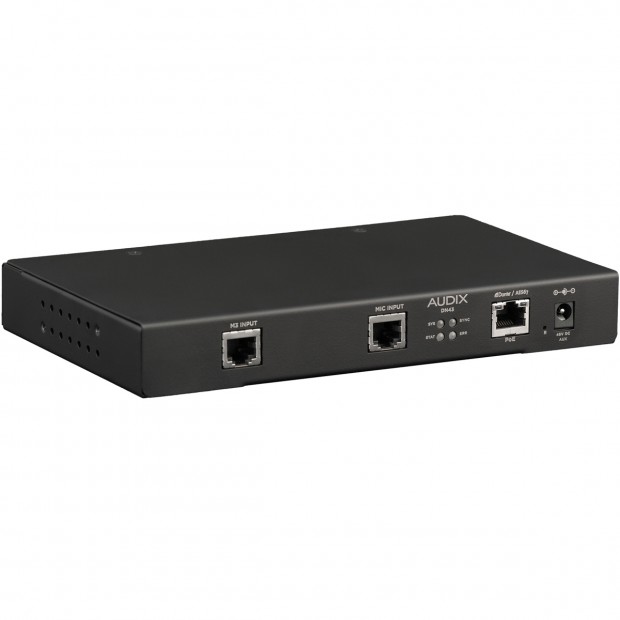

Audix DN43 Microphone Interface with M3 Port and Port for Audix RJ45 Equipped Single Element Microphones
The DN43 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions - including on-off contact closure and LED status indicators - are available through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.
The DN43 features one microphone input specifically designed for the Audix M3 tri-element microphone and one input for Audix RJ45-equipped, single-element microphones. It has two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.
Applications:
- Meeting rooms
- Convention centers
- Educational facilities
- Houses of worship
