The Audix M3W6 is an innovative, tri-element hanging ceiling microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The M3 is an ideal audio capture solution for video conferencing, distance learning, courtroom activities, and surgical procedures. It can also be used for ambient room miking and surveillance.

Description

Audix M3W6 Tri-Element Hanging Ceiling Microphone with 6ft Cable

The M3 is an innovative, tri-element hanging ceiling microphone designed for applications where aesthetics, sound quality, and ease of installation are critical. The M3 is an ideal audio capture solution for video conferencing, distance learning, courtroom activities, and surgical procedures. It can also be used for ambient room miking and surveillance.

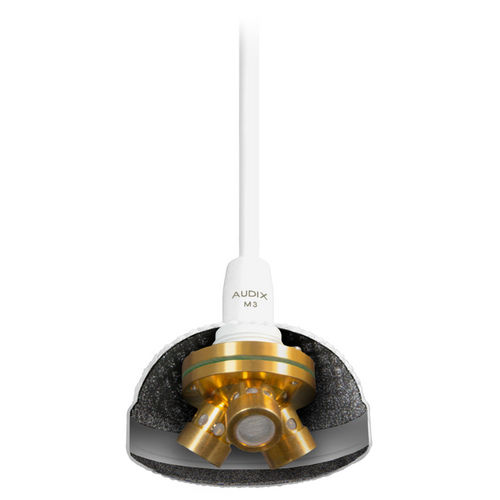

The M3 ceiling microphone incorporates three phase-coherent hypercardioid capsules with tailored frequency response optimized for speech intelligibility. This is accomplished by minimizing frequencies caused by noise, vibration, paper shuffling, keyboard strokes, fans, and heating /air conditioning. Low noise preamp circuitry is employed for the highest possible signal to noise and studio-quality sound. A high-quality silicone jacketed microphone cable ensures a balanced, shielded signal and a very clean look. Electronics above the ceiling are housed within a plenum-rated junction box and cable connections are made via an RJ45 connector embedded within a proprietary brass housing for an airtight seal.

Features

  • 100% RF shielding and immunity
  • Gold diaphragm condenser capsules with studio-quality sound
  • Low impedance design allows for extremely long cable runs (if required) without cross-talk or interference
  • Frequency and pattern tailored for voice clarity and rejection of extraneous noise
  • Evenly dispersed sound with undetectable phase
  • High-quality silicone jacketed microphone cable with adjustable length and position
  • Plenum-rated junction box with RJ45 connector
  • All visible components of the microphone and cable are the same color: charcoal or white
  • TAA compliant
  • Very high output, low self-noise
  • Easy to install

Specifications

Transducer Type Pre-polarized condenser
Frequency Response 30 Hz – 19 kHz
Optimized Response 70 Hz – 9 kHz
Polar Pattern Hypercardioid
Output Impedance 150 ohms balanced
Sensitivity 34 mV / Pa @ 1k
Off Axis Rejection 1 capsule: >23 dB at 180º relative to 0º
2 capsules: >18 dB at 120º
3 capsules: >9 dB at 60º
Signal/Noise Ratio (A-weighted) 72 dB
Equivalent Noise Level (A-weighted) 22 dB (A weighted)
Maximum SPL @ .5% THD ≥128 dB
Dynamic Range 106 dB
Power Requirements 18 – 52 V phantom
Cable/Connector Terminal block or XLR
Polarity Positive pressure on diaphragm produces positive V on pin 2 relative to pin 3
Dimensions (Dia x L) 2" (50.8 mm) x 1.2" (30.48 mm)
Weight (Mic Only) 0.21 lbs (0.10 kg)

DOCUMENTS

In The Box

  • (1) M3W6 Ceiling Mic
  • (1) JBM3 Plenum Rated Junction Box
  • (1) ANCHRJB60V2 Seismic/Fire Strain Relief
  • (1) CBLM3TERM Breakout Cable
