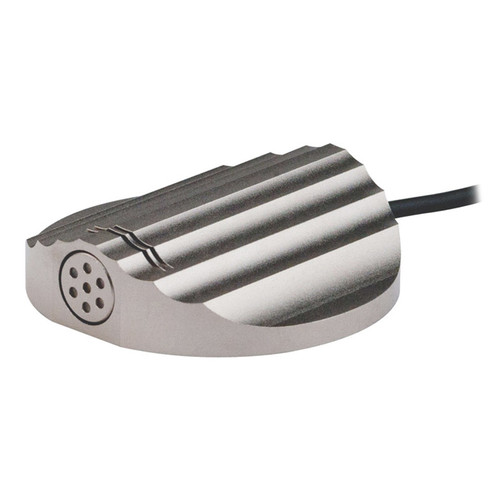

The M60 is a miniaturized condenser microphone with fully integrated electronics and immunity from RF interference typically caused by cell phones and GSM devices.
Primary applications for the M60 are: podium, corporate board rooms, meetings and video conferencing where aesthetics and audio quality are of prime importance. The microphone element is cardioid by design; however a "hemi-cardioid" polar pattern is produced when coupled with a flat surface such as a table, floor, wall or podium.
The striking design of the M60 brass housing is achieved through an intricate process utilizing a computer controlled machining center. The bottom of the housing is treated with a shock absorbent material for dampening purposes and has two threaded holes that allow the M60 to be bolted into a permanent position if desired.
A high quality 25' shielded mic cable is attached directly to the internal circuitry of the M60 with the ability to exit the housing at either 180 or 90 degrees, depending on whether the cable will be routed through a drilled surface. In addition, there are two types of connectors offered: XLRm or terminal connectors.
| Transducer Type | Condenser |
|---|---|
| Frequency Response | 70 Hz - 8 kHz |
| Polar Pattern | Hemi-Cardioid |
| Output Impedance | 150 ohms |
| Sensitivity | 68 mV / Pa @ 1k |
| Signal / Noise Ratio (A-Weighted) | 72 dB |
| Equivalent Noise Level (A-Weighted) | 22 dB |
| Maximum SPL @ .5% THD | ≥130 dB |
| Dynamic Range | 108 dB |
| Power Requirements | 18 - 52v phantom |
| Connector | 3 pin phoenix terminal |
| Polarity | Positive pressure on diaphragm produces positive V on pin 2 relative to pin 3 |
| Housing / Finish | Black or Nickel |
| Diameter | 2.5" (63.5 mm) |
| Weight | 0.52 lbs (0.24 kg) |
