- Description
Details

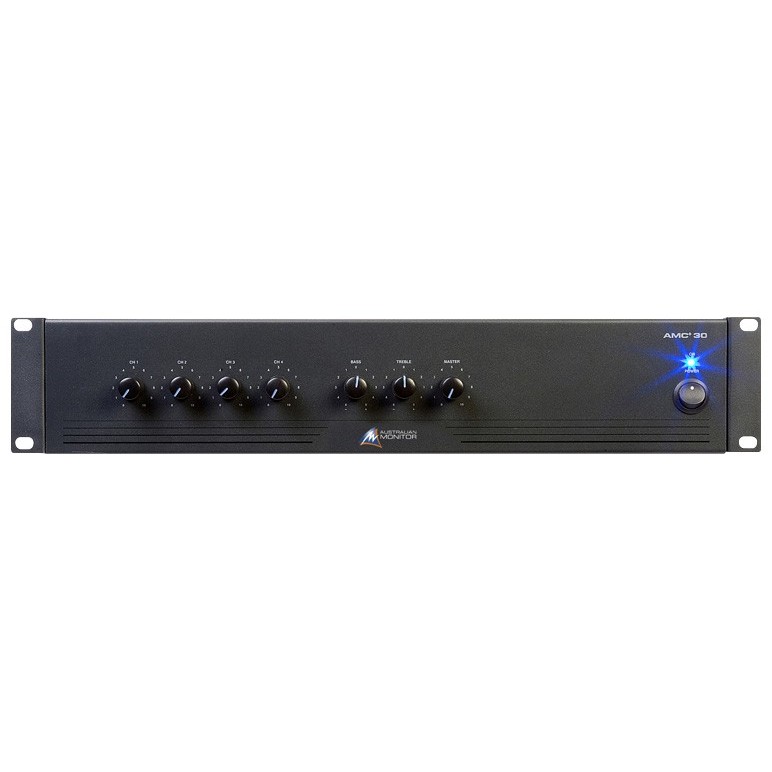

The Australian Monitor AMC+30 Mixer Amplifier takes the rugged reliability of Australian Monitor products and delivers the same high quality audio reinforcement, in a low cost, 2 rack unit package. The AMC+30 has 4 XLR microphone and dual RCA line inputs with input 1 having priority over inputs 2-4 (defeat able) and global 12VDC phantom power.
- Features
Features
- 30 watt
- 2 RU rack mountable chassis
- 4 XLR microphone/dual RCA line inputs
- 100 volt or 4 ohm output
- Input 1 vox muting priority (internally defeat able)
- Alert/Evac/Pre Announce/Bell tone board available
- 12VDC phantom power
- Specification
Power Output (0.5%Thd, 1khz) 30W S/N Ratio > 75dBr Power Bandwidth (-3db +1db) 85Hz-18kHz Output Regulation 96% Thd (1khz, -1db) Better than 0.5% Mic Input Sensitivity 1mV @ 200ohm Impedance 1k3 ohm Headroom 77mV (37dB) Aux Input Sensitivity 150mV Impedance >200kohm Headroom > 15V (>40dB) Tone Control BASS @ 100HZ +/- 12 dB TREBLE @ 10KHZ +/- 9 dB Nominal Output 0.775V @ 1kohm Output Impedance 100ohm Dimensions (H x W x D) 7.9” (200 mm) x 21.5” (547 mm) x 15.7” (400 mm) Net Weight 14.7 lbs (6.7 kg) Shipping Weight 19.2lbs (8.7 kg) - Reviews
