Aviom Mix320-D Personal Monitor Mixing System with Shure SE215 Earphones

Mix320-D Personal Mixing System

The Mix320-D Personal Mixing System has been designed specifically for use with Dante™ enabled consoles and networks. It includes everything you need to create a personal mixing system for six performers. The A320 Personal Mixers get their digital data and power over the same cable, so all you need to do is connect a Cat-5 cable and you're ready to start using the system.

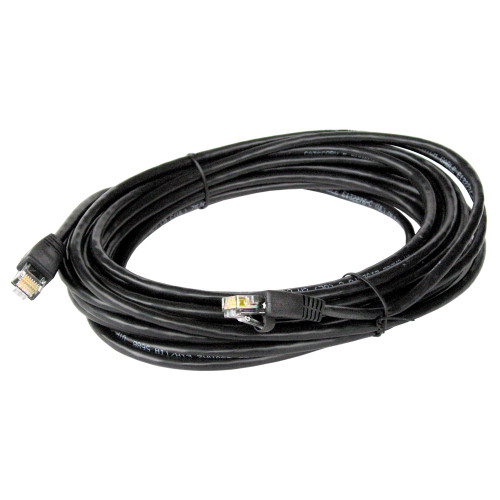

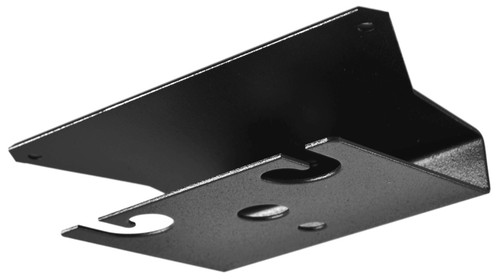

The Mix320-D Personal Mixing System makes it easy to add Aviom monitoring to a Dante-enabled mixing console or audio network. No analog input module or console card is required; inputs get patched directly from your Dante network. The Mix320-D system includes a D400-Dante A-Net Distributor that allows up to 32 channels to be patched from the Dante network to the personal mixing system inputs. The D400-Dante is also used to supply A-Net digital data and DC power to the mixers. The Mix320-D system includes six A320 Personal Mixer for the performers, plus six MT-1a Mic Stand Mounts for attaching the A320 mixers to mic stands, as well as all the Cat-5e cables you'll need to connect the products. We've also included six Shure SE215 Sound Isolating Earphones. Featuring Dynamic MicroDriver, the SE215 delivers detailed sound with enhanced bass. A detachable cable with formable wire enables easy replacement and a secure, comfortable fit on-stage or on-the-go. Sound Isolating sleeves in multiple sizes provide up to 37 dB of isolation and a customized fit.

Intuitive Mixing

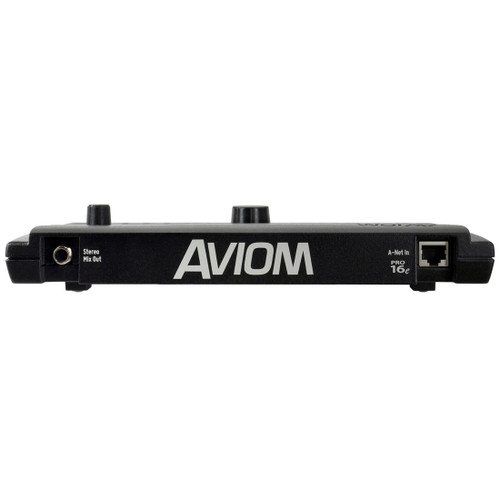

The A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. It features a 32-channel mix engine with 16 mono or stereo mix channels buttons and easy to use Stereo Placement controls. Connect headphones, ear buds, or a wireless in-ear monitoring system to the Personal Mixer and you're ready to start mixing.

Distribute Power and Audio Over Cat-5

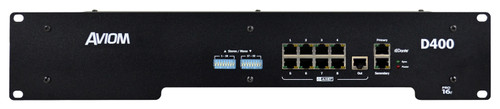

For distributing the A-Net digital data and DC power to the A320 Personal Mixers, the system includes the D400-Dante A-Net Distributor. The D400-Dante also serves as the system's input device; it allows up to 32 channels from your Dante network to be assigned to the eight powered A-Net ports on its front panel. Stereo Link switches allow adjacent channels to be treated as a stereo pairs on the A320 Personal Mixers where they will appear on a single mix channel button.

System Options

The Mix320-D system uses a Dante network for its inputs. If you use a digital console, check out the Mix320-Y Personal Mixing System which includes a Y1 card for Yamaha® consoles for its inputs. Or, if you have an analog console or recording system, the Mix320-A Personal Mixing System is what you need. It includes the 16-channel, line-level AN-16/i Input Module as its front end.

The mixing system packages are also easy to expand when you're ready—just add more Personal Mixers and A-Net Distributors as needed.
