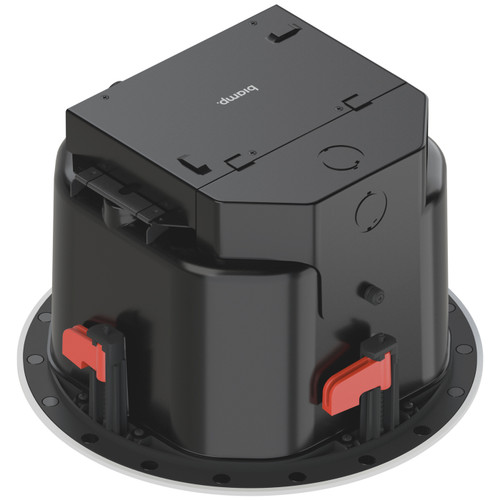

Biamp Desono C-IC6 2-Way 6.5" Ceiling Speaker with 130° Coverage Optimized for Low Ceilings
The Desono C-IC6 is a two-way passive coaxial loudspeaker optimized for speech reproduction in conferencing applications. Designed with the installer in mind, the C-IC6 loudspeaker supports audio connections via either standard category cable or traditional speaker cable. They can be blind-mounted from below the ceiling, and feature a magnetic grille for easy toolless installation and removal. The grille plates are available in white, black, or red, or can be painted to match the room decor. The C-IC6 also directly integrates with the Tesira AMP-450BP — a four-channel "backpack" PoE+ amplifier — which reduces wiring requirements and installation time. The Desono C-IC6 loudspeakers are an ideal choice for any conferencing space that demands superior speech reproduction.
- Features
Features
- Certified for Microsoft Teams Rooms and Zoom Rooms
- Low profile passive loudspeaker, less than 6 inches (155 mm) total depth
- Supports both CAT cables and standard speaker wiring
- Designed to be integrated with the AMP-450BP (backpack PoE+ amplifier)
- 8-ohm nominal impedance allows for daisy chaining
- Bridge-mounted 1-inch soft dome tweeter 2-way 6.5" treated paper woofer, mechanically isolated and independent of tweeter
- 130-degree coverage optimized for low ceilings
- 60W with a peak power of 120W
- 5-year warranty
- Cisco Verified
- Specification
Nominal Impedance 8Ω Transducers Low Frequency: 6.5" (165 mm) treated paper cone woofer
High Frequency: 1" (25 mm) plastic dome bridge-mounted tweeterFrequency Response (-10 dB) 60Hz - 20kHz Output Power Rating 60W continuous; 120W peak Sensitivity (1W/1m) 87 dB SPL Maximum SPL 106 dB Coverage Angle 130° Connectors 4-pole Euroblock connector for two pair of parallel connections; Two RJ-45 connectors Operating Environment Designed for indoor use in climate-controlled environments Compliance UL and C-UL listed (USA and Canada) CE Marked (Europe) RoHS Directive (Europe) Evaluated to the requirements of UL 1480a and UL 2043 and is suitable for use in air handling spaces Included Accessories C Ring, Tile Bridge, Paintable Metal Grill Cutout Diameter 9.75" (248 mm) Dimensions (Dia x D) 11.2" (284 mm) x 5.9" (151 mm) Weight 7.8 lbs (3.5 kg) - Documents
Documents
- In The Box
In The Box
- (2) Desono C-IC6 Speakers
- (2) C Rings
- (2) Tile Bridges
- (2) Euroblock Connectors
- (1) Cutout Template
