Biamp Desono KUBO5 5.25" Full Range 8 Ω Surface Mount Loudspeakers
The Desono KUBO5 two-way 5.25-inch, surface mount loudspeaker is the result of increasing demand for more stylish yet subtle audio products. Designed to blend into any background, the KUBO5 delivers crystal clear sound for all your background music needs, while the bass reflex port provides a fast and dynamic bass response.
Available in black or white, the 140° range of motion allows the KUBO5 to be installed on walls or ceilings in either horizontal or vertical orientation. The audio connections and bracket hardware are hidden under magnetically attached end caps, providing a refined look for high visibility locations. For retail applications, optional accessories are available that allow the KUBO5 to be attached directly to many types of track lighting rails.
The Desono KUBO5 is an excellent choice for indoor audio applications that demand superior speech intelligibility and full range music reproduction.
- Features
Features
- Zoom Certified
- High speech intelligibility coupled with full-range music reproduction
- Stylish yet subtle design; blends well in many environments
- Can be mounted to track lighting rails through innovative optional accessories
- IP40 rated

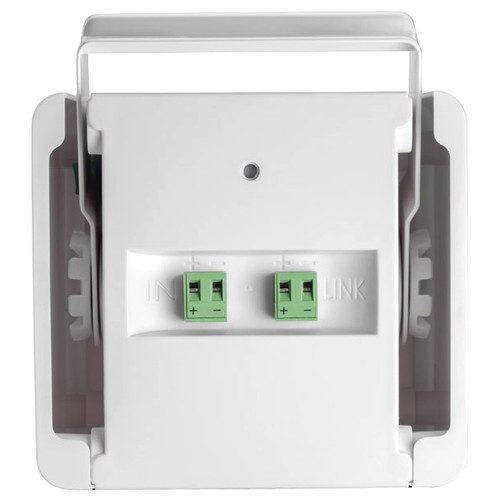

- Magnetically attached end caps hide audio connections and bracket hardware
- Loudspeaker overload protection for 24/7 failsafe operation
- 5-year warranty
- Specification
Operating Mode Passive Operating Range 115 Hz to 20 kHz (-10 dB) Nominal Beamwidth (H x V) 70° x 70° Drivers LF 1 x 5.25" (133 mm) coated paper cone HF 1 x 1" (25 mm) soft dome Continuous Power Handling 20V 50W @ 8 Ω (200W peak) @ Nominal Impedance Nominal Sensitivity @ 1W 84 dB @ 2.83V 84 dB @ 1m Nominal Maximum SPL Peak 107 dB Continuous 101 dB @ 1m Protection 3-step self-resetting protection Recommended Amplifiers 50W - 100W @ 8 Ω (20V - 28V) Input Connection 2-way Euroblock connectors for daisy-chaining Environmental IP40 per IEC 60529 Included Accessories U-bracket and safety cable Dimensions (H x W x D) 6.1" (155 mm) x 6.4" (164 mm) x 5.3" (136 mm) Net Weight 3.7 lbs (1.7 kg) - Documents
