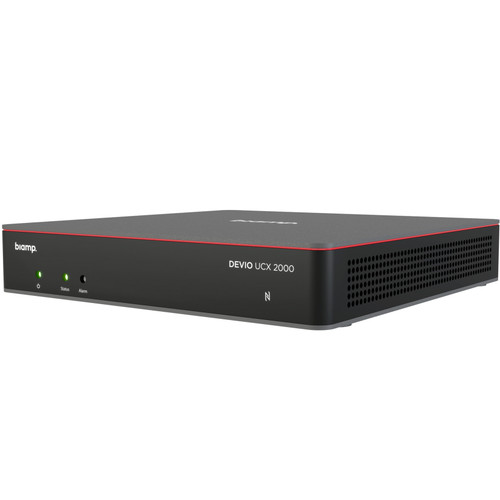

Biamp Devio UCX 2000 Android-Powered Microsoft Teams Rooms Hub

By Biamp Systems

Biamp Devio UCX 2000 Android-Powered Microsoft Teams Rooms Hub with Built-In DSP, PoE+ and USB-C

Name: Biamp Devio UCX 2000 Android-Powered Microsoft Teams Rooms Hub with Built-In DSP, PoE+ and USB-C
Brand: Biamp Systems
SKU: BIAMP-920-02282
Price: 2500 USD
Availability: InStock

Write a Review

Part #:

920-02282

Model #:

Devio UCX 2000

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Biamp Devio UCX 2000 Android-powered meeting room hub combines Microsoft Teams Rooms compute with professional-grade DSP for medium and large meeting rooms. It supports up to four distributed microphones and eight distributed loudspeakers, features automatic room tuning with Biamp Launch, and enables remote monitoring and management through Biamp Workplace.

Description

Biamp Devio UCX 2000 Android-Powered Microsoft Teams Rooms Hub

The Devio UCX 2000 is an Android-powered meeting room hub built for medium and large rooms. It pairs onboard UC compute for running Microsoft Teams Rooms with professional Biamp DSP, so audio quality and room intelligence come from a single device.

Built on the Microsoft Device Ecosystem Platform (MDEP), the Biamp Devio UCX 2000 delivers enterprise-grade stability and security. It can orchestrate an expanded room setup with a video conferencing bar or standalone camera, an Apprimo Touch 10 UCX controller, and up to four distributed microphones and eight distributed loudspeakers. USB power runs to the video conferencing bar, and PoE+ power runs to the touch controller, so the room peripherals draw power from the UCX hub.

Biamp Launch analyzes and tunes room acoustics automatically with a single button press. A USB-C port enables BYOM and content-sharing inputs, along with peripherals such as the MPX 250. Fully integrated into Biamp Workplace, the Devio UCX 2000 supports installation, remote monitoring, and management alongside other Biamp room devices.

Features

An easy-to-install meeting room hub built for medium and large Microsoft Teams Rooms
Supports the Apprimo Touch 10 UCX controller, a video conferencing bar or standalone camera, up to four distributed microphones, and up to eight distributed loudspeakers
The first MDEP Android-based UC appliance with built-in DSP, delivering professional-grade sound processing in a single device
Biamp Launch analyzes and tunes room acoustics automatically with a single button press
Supports distributed microphones and loudspeakers to help capture and reproduce audio throughout the room
Every room peripheral is powered from the UCX hub via PoE+ and USB, providing one point of power management
A USB-C port enables BYOM and content-sharing inputs, plus peripherals like the MPX 250
Fully integrated into Biamp Workplace for installation, remote monitoring, and management alongside other Biamp room devices
TAA compliant

Specifications

Power Consumption	<210W
Power Input	50V-57V, 4.2A - 3.6A
Power Output	100-240V AC 50/60 Hz
Network Connection(s)	Ethernet Port 1: Primary LAN, 100/1000 Ethernet Port 2: PoE+ PSE 30 W for Apprimo Touch 10 UCX touch panels Ethernet Port 3: Isolated PoE+ 30W for Network Media Ethernet Port 4: Isolated PoE+ 30W for Network Media Wireless LAN: Wi-Fi 6, 802.11ac, 2x2 MIMO Bluetooth: BLE 5.3 for Proximity Join NFC: Passive NFC tag for future use
USB Specification	USB-A: 3x USB 3.0 USB-C: 1x USB 3.2 Gen 1 with 60W PD for Parle ABC and VBC conferencing bars
Operating System(s)	Operating System: Microsoft Device Ecosystem Platform (MDEP) based on Android 15 UC Vendors: Microsoft Teams Rooms for Android Processor: Qualcomm Dragonwing QCS6490 Memory: 8 GB
Video	Displays Supported: 1 Display Output: 1x HDMI 2.0, CEC, 4K 60 Hz USB-C Input: Content Sharing and BYOM Switch, USB-C DP 1.4a Alt Mode, 4K 30 Hz HDMI Input: Content Sharing, HDMI 2.0, 1080p 60 Hz or 4K 30 Hz
Audio	Biamp Audio Processing: AI Noise Reduction, AI Reverb Reduction, Echo Cancellation with Residual Echo Reduction, Automatic Level Control Audio Tuning: Biamp Launch automated setup and room tuning Assistive Listening Output: 3.5 mm stereo unbalanced output with configurable near/far end mix Aux Analog Input: 3.5 mm stereo unbalanced input for local in-room content playback
Control	Biamp Workplace: Remote status monitoring, Biamp Launch Report Cards MDEP: Microsoft 365 Admin, Entra ID, Intune Microsoft Teams Rooms: Teams Admin Center, Teams Rooms Pro Management Portal
Compliance	Security: Platform: Secure Boot, Signed Firmware Update MDEP: Hardware-based attestation with Microsoft PKI, Microsoft Secure Pairing Network: 802.1X, Wi-Fi WPA 3, Proxy Server
Ambient Operating Temperature Range	32-104°F (0-40°C)
Humidity	0-98%, non-condensing
Altitude	0-6,600 feet (0-2000 Meters) MSL
Warranty	3 years
Dimensions (H x W x D)	1.47" (37.3 mm) x 8.11" (206 mm) x 8.11" (206 mm)
Weight	1.9 lbs (0.86 kg)
