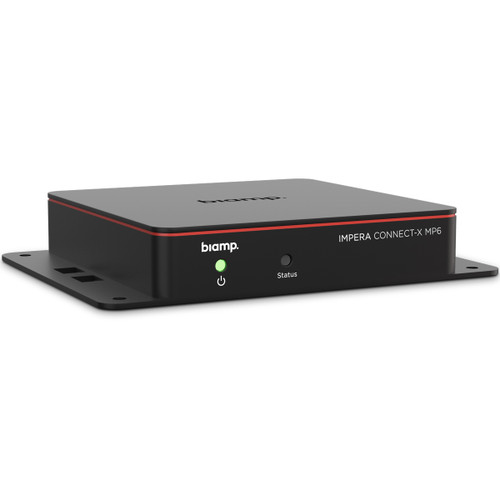

Biamp Impera Connect-X MP6 Extender

The Impera Connect-X MP6 is a lightweight, flexible multiport extender that expands the capabilities of Impera controllers, control pads, and Apprimo Touch 8i panels. Bridging the local area network with conventional AV ports allows installers to use standard Ethernet cabling to deliver serial, IR, GPIO, and LAN control directly to devices.

Each LAN-connected Impera controller can support up to eight Connect-X MP6 units without consuming additional LAN control ports, making it a highly scalable solution for larger systems. Weighing only 0.11 kg, the unit can be quickly mounted with screws, double-sided tape, or zip ties, ensuring installation flexibility in any environment. Easily configured with the Project Designer software, the Connect-X MP6 adapts to evolving room requirements, offering a cost-effective and future-proof solution for AV system control.

Features

Features

1 bidirectional RS-232/IR control port with feedback
2 unidirectional RS-232/IR control ports
3 GPIO ports for flexible device integration
LAN control of up to 2 additional IP devices
PoE powered (IEEE 802.3at Class 1, 4W) for simple installation over a single CAT5e/CAT6 cable
Ultra-lightweight design, less than 0.11 kg
Easy mounting with screws, zip ties, or double-sided tape
5-year warranty

Specification

Power	PoE (IEEE 802.3at Class 1, 4W)
Power Consumptions	Each I/O can draw up to 24DC/500mA
Network Connection	Ethernet Port Speed: 10/100 Mbps Autosense: Yes Number of 3rd-party devices supported: 2
RS-232	Number of Ports: 1 (bidirectional) 2 (unidirectional)
Included Accessories	Mounting screws and zip ties
Dimensions (H x W x D)	0.86" (22 mm) x 5" (127.2 mm) with flange x 3.8" (92.2 mm)
Weight	0.24 lbs (0.11 kg)
Shipping Weight	2 lbs (0.91 kg)
