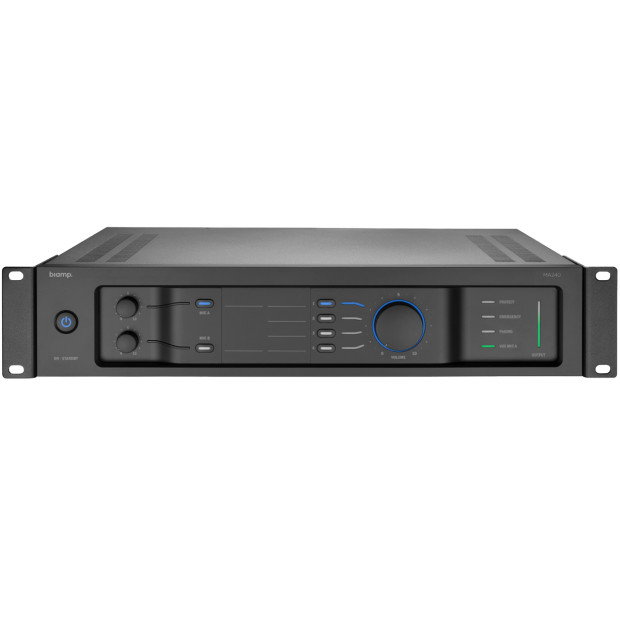

Biamp MA240 240W 70V/100V Single-Channel Class D Mixing Power Amplifier

Biamp MA240 240W 1-Channel Mixing Amplifier

The MA240 is a powerful 240W single-channel mixing amplifier designed for commercial installations that require reliable performance and simple operation. Featuring intuitive front-panel controls, the MA240 offers immediate access to volume and microphone levels, ensuring ease of use for any operator.

With four priority levels for audio routing, including a dedicated emergency input, paging mic with contact closure and chime, two mic/line inputs, and four stereo line inputs, the MA240 delivers exceptional flexibility for paging, announcements, and background music applications.

Its efficient Class D amplifier topology ensures clean, high output performance while minimizing power consumption. Fanless convection cooling allows for quiet operation and long-term reliability in diverse environments such as offices, retail spaces, hospitality venues, and educational facilities.

Designed with system integration in mind, the MA240 includes a 24V priority output to override local volume controls, an auto standby mode for energy savings, and an internal universal power supply for global compatibility. Housed in a 2RU rack-mountable chassis, the MA240 meets rigorous compliance standards (FCC, UL, CE, RoHS) and is backed by a five-year warranty.

• 240W RMS single-channel output
• Supports both 4Ω low impedance and 70V/100V distributed systems
• Four input priority levels (Emergency, Paging, Mic/Line, Stereo Line)
• 2 x Mic/Line inputs with 48V phantom power
• 4 x Stereo line inputs (summed to mono)
• Dedicated emergency input with mute-all function
• Paging mic input with contact closure and chime
• 24V priority output overrides local controls
• Class D amplifier topology for efficient, reliable operation
• Fanless convection cooling for silent performance
• Auto standby mode for energy efficiency
• Rack mountable (2RU)
• 5-year warranty
