Biamp MRB-L-X1600-BMA360D-CIC6 Large Meeting Room Bundle with BMA 360D Ceiling Tile Microphone Array, 4 C-IC6 6.5" Ceiling Speakers, and TesiraFORTÉ X 1600

Complete Large Meeting Room Audio Solution

The Biamp MRB-L-X1600-BMA360D-CIC6 is a complete audio solution for large meeting rooms, combining professional ceiling microphone technology, conferencing loudspeakers, DSP, PoE power, and installation cabling in one bundle. The system includes a BMA 360D 24-inch ceiling microphone array, four Desono C-IC6 ceiling loudspeakers, a TesiraFORTÉ X 1600 meeting room DSP, an EasyConnect POE-90W injector, and a complete plenum-rated CAT5e cable kit.

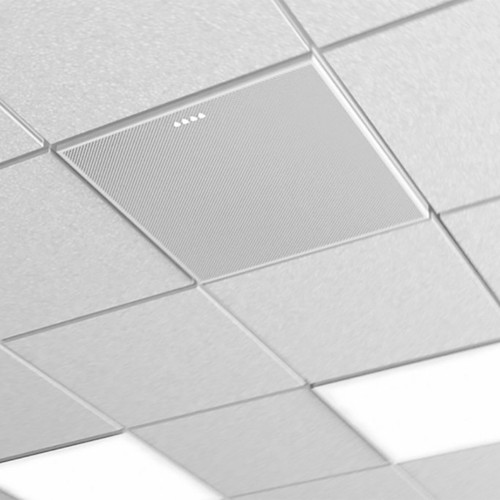

The BMA 360D is a 24 x 24-inch ceiling tile microphone array designed for standard ceiling grids. Its ultra-wideband, frequency-invariant beamforming provides consistent voice pickup across the room, while up to 12 configurable beams allow coverage to be tailored to different room layouts. The microphone array provides individual, unprocessed beam audio over Dante channels as well as a smart-switched output for active talker pickup with integrated audio enhancements.

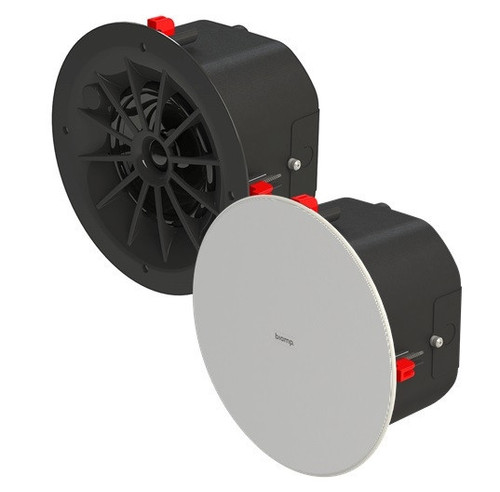

Four Desono C-IC6 6.5-inch ceiling loudspeakers provide speech-optimized audio throughout the meeting space. The low-profile, two-way coaxial loudspeakers feature 130° coverage and are designed for conferencing applications, with installation options that support both category cable and traditional speaker cable.

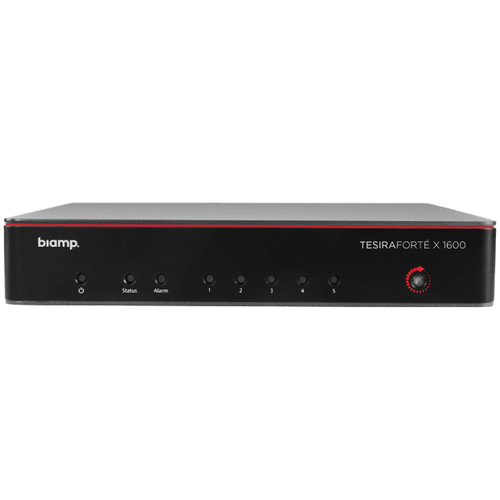

The TesiraFORTÉ X 1600 provides extensive audio processing for large meeting room applications, including Acoustic Echo Cancellation (AEC), signal routing, mixing, equalization, filtering, dynamics, and delay. Its network and USB connectivity supports integration with modern conferencing and collaboration platforms, while Biamp Launch enables automatic device discovery, room tuning, and performance reporting without requiring custom programming.

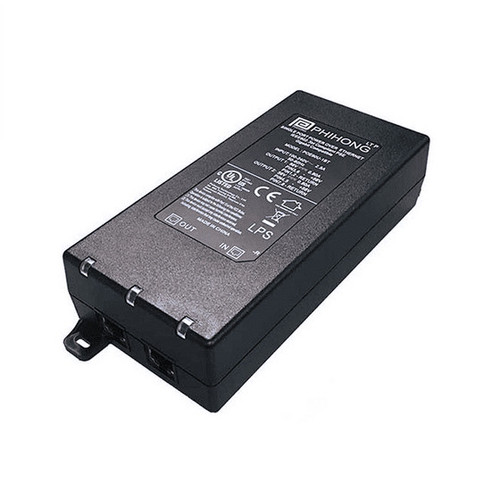

The included EasyConnect POE-90W provides the PoE++ power required for the BMA 360D and loudspeakers, while the included plenum-rated CAT5e cable kit simplifies installation and connectivity.
