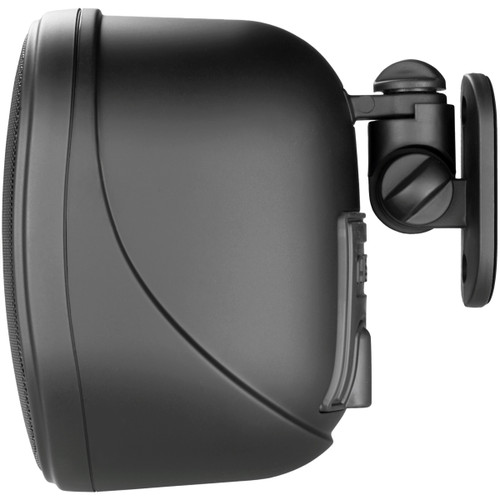

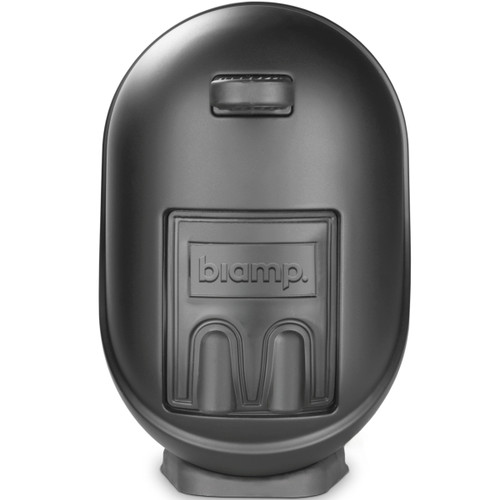

Biamp OVO3T-B 70V/100V 2-Way 3" IP40 Full-Range Surface Mount Loudspeaker - Black Pair

Part # 920-00296-10000
Model # OVO3T-B Black
The Biamp OVO3T-B is a pair of compact black 3" two-way surface-mount loudspeakers with 16 Ω or 70 V/100 V operation for background music and paging.

Availability: Special Order (Return Conditions Apply)

Description

Details

Biamp OVO3T-B Full Range 3" Black Surface Mount Loudspeakers

The OVO3T-B is a pair of compact black two-way surface-mount loudspeakers designed for background music and paging in a wide range of indoor applications such as offices, hospitality venues, retail stores, and commercial buildings. Each loudspeaker supports 16Ω low-impedance or 70V/100V transformer operation, offering flexibility for both small and large-scale installations.

Equipped with a 3" coated paper woofer and a 1" silk-dome tweeter, the OVO3T-B delivers clear, natural sound with wide dispersion, ensuring even coverage throughout linear and open spaces.

The durable black ABS cabinets are paintable to blend seamlessly into any environment. Installation is fast and versatile with the included pan-tilt mounting brackets, spring-lever terminals, and input covers for a neat, professional look.

Features

Features

  • Sold as a pair of compact black 3" two-way loudspeakers
  • Selectable 16Ω or 70V/100V operation
  • Wide dispersion for optimal coverage
  • Contemporary design fits into any environment
  • Pan-tilt mounting bracket included
  • Rugged, paintable ABS enclosure
  • Spring-lever terminals for fast wiring
  • Ideal for background music and paging applications
  • 5-year warranty
Specification
Operating ModePassive with selectable low-impedance or 70V/100V operation, single amplified with DS
Operating EnvironmentIndoor
Operating Range (-10 dB)100 Hz to 20 kHz
Nominal Beamwidth (H x V)185° x 135°
Transducers LF 1 x 3" (76 mm) coated paper cone
HF 1 x 1" (25 mm) silk dome driver
Sensitivity83 dB (2.83V)
86 dB (1W, 16Ω)
Nominal Continuous Power Handling18V (20W, 16Ω Nominal Impedance)
Transformer70V: 6W, 3W, 1.5W, 0.75W;
100V: 6W, 3W, 1.5W
Recommended Amplifiers20W - 40W, into 16Ω (18V - 25V)
Input ConnectionSpring-lever terminals with wiring cover
ControlsWattage / low impedance selector switch
Mounting ProvisionsPan-tilt bracket and rubber tabletop stand
ComplianceIEC 62368-1 certified
Environmental RatingIP40 per IEC 60529
Dimensions (H x W x D)6.31" (160 mm) x 4.24" (108 mm) x 4.67" (119 mm)
Weight2.4 lbs (1.08 kg)
Shipping Weight7.05 lbs (3.2 kg)
