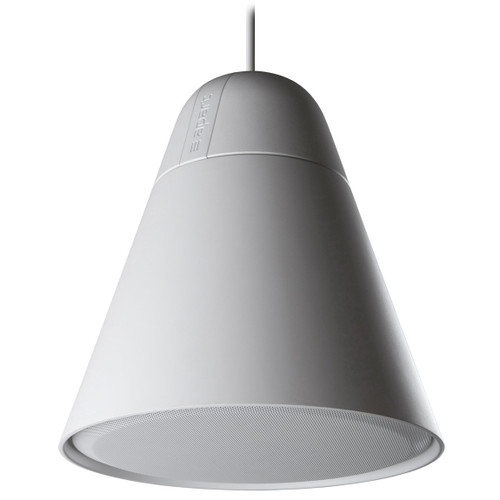

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.Biamp P30DT 4.5" Two-Way Pendant Loudspeaker
The P30DT two-way, 4.25" pendant loudspeaker brings exceptional dispersion to areas with open ceilings, while offering clear speech and musical purity. Available in black or white, the P30DT is suitable for a wide range of background and foreground audio applications.
The Gripple cable fasteners, Euroblock connector, and 70V/100V tap switch can be hidden after installation by the innovatively designed end cap. The attractive aesthetics and ease-of-installation make this product an industry standard.
| Operating Mode | Passive |
|---|---|
| Operating Environment | Indoor |
| Operating Range (-10dB) | 75 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 120°, conical |
| Transducers | LF 1 x 4.25" (108 mm) coated paper cone HF 1 x 1" (25 mm) soft dome |
| Transformer | 70V: 30W, 15W, 7.5W, 3.75W, 1.75W 100V: 30W, 15W, 7.5W, 3.75W |
| Recommended Amplifiers | 50W - 100W @ 16 ohms, (28V - 40V) |
| Input Connection | 4-way Euroblock connector with permanent pass-through |
| Mounting Provisions | Two 5m (16.4 ft) wire suspension cables (one as primary support, one as a safety cable), of high tensile galvanized steel wire rope with integrated spring clips for attaching the cable to the bracket and Gripple cable fasteners |
| Compliance | ETL listed to comply with UL Std 1480A, Certified to CSA C22.2#62368-1 Suspension system and Gripple cable fasteners listed per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81 |
| Accessories (Included) | Two wire suspension cables; Two Gripple cable fasteners; End cap and cable cover |
| Accessory (Optional) | MC-PHK16-12PK: Pendant Hanging Kit with twelve (12) 5m (16ft) lengths of Magic Cable and the connectors to suspend snap-hook-mounted pendant loudspeakers. Available in White or Black |
| Dimensions (H x W) | 8.78" (223 mm) x 9.17" (233 mm) |
| Weight | 5.7 lbs (2.6 kg) |
