Biamp Teleconferencing Audio System with TesiraFORTE VT Digital Server, Tabletop Dialer and In-Wall Control

By Biamp Systems

Biamp Teleconferencing Audio System with TesiraFORTE VT Digital Server, Tabletop Dialer and In-Wall Control

Name: Biamp Teleconferencing Audio System with TesiraFORTE VT Digital Server, Tabletop Dialer and In-Wall Control
Brand: Biamp Systems
SKU: CFSS-TESIRAFORTEVTHD1TEC1I

Write a Review

Part #:

CFSS-TESIRAFORTEVTHD1TEC1I

Model #:

CFSS-TESIRAFORTEVTHD1TEC1I

Current Stock:

Availability:

Special Order (Return conditions apply)

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This Biamp teleconferencing audio system includes the TesiraFORTÉ® VT digital audio server as well as a Tesira HD-1 hardware dialer and an in-wall Tesira TEC-1i PoE Ethernet control. Allows for integration of new or existing microphones, amps or speakers to allow remote communication over VoIP, POTS, or soft codec system solutions.

Description

Inside the Design

This Biamp teleconferencing system includes the TesiraFORTÉ® VT digital audio server, an easy-to-use Tesira HD-1 hardware dialer for making calls and an in-wall Tesira TEC-1i PoE Ethernet control for changing configurations or volume levels. Best-suited for rooms that require high-quality audio solutions using VoIP, voice lift, mix-minus, and AEC.

Sound System Features:

Integrates VoIP, POTS, and USB audio in one product allowing integrators to choose the type of audio conferencing that works best for their installation
Includes default configuration file allowing for plug-and-play usage
Highly scalable and cost-effective solution that can grow over time with the needs of your system
SpeechSense™ technology to enhance speech processing
Integrates directly with soft codecs and other USB audio hosts

About the System Components

This Pro Acoustics designed sound system includes the Biamp TesiraFORTE VT digital audio server, a Biamp HD-1 Tesira tabletop dialer and a Biamp Tesira TEC-1i in-wall PoE ethernet control.

Not sure if this is the right Conference Room System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

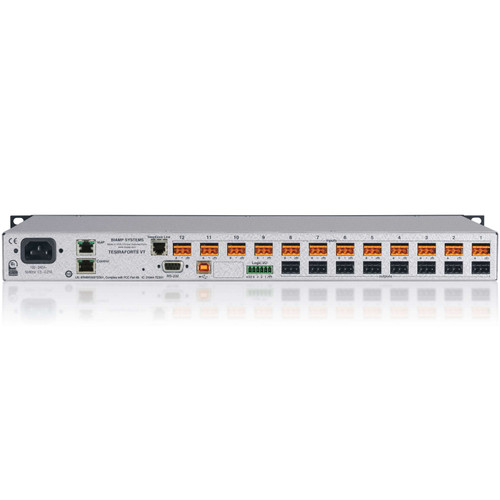

Biamp TesiraFORTE VT Digital Audio Server:

12 mic/line level inputs; 8 mic/line level outputs
12 channels of AEC
Gigabit Ethernet port
Up to 8 channels of configurable USB audio
RS-232 serial port
4-pin GPIO
2-line OLED display with capacitive-touch navigation
Rack mountable (1RU)
System configuration and control via Ethernet
Internal universal power supply
SIP VoIP interface via an RJ-45 connector
Standard FXO telephone interface via RJ-11 connector
Signal processing via intuitive software allows configuration and control for signal routing, mixing, equalization, filtering, delay, and much more
CE marked, UL listed, and RoHS compliant
Covered by Biamp Systems’ 5-year warranty

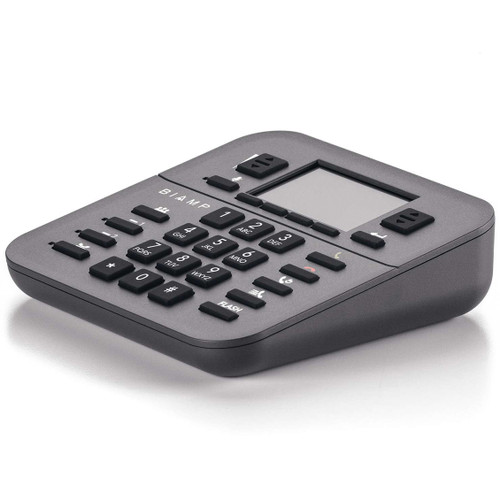

Biamp HD-1 Tesira Tabletop Dialer:

Telephony control over Ethernet
LCD display
12-button dial pad
100 programmable speed dial numbers
4 navigation buttons
Power over Ethernet (PoE)
Covered by Biamp Systems’ five-year warranty

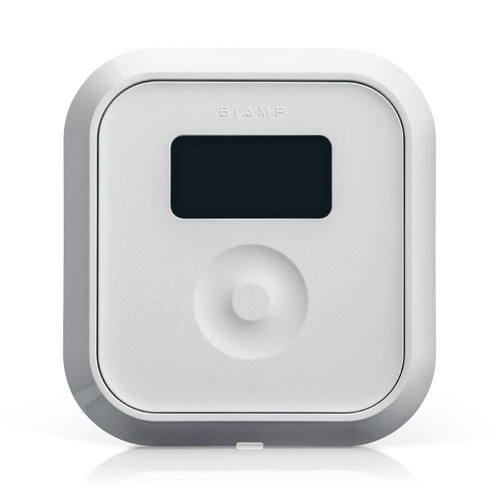

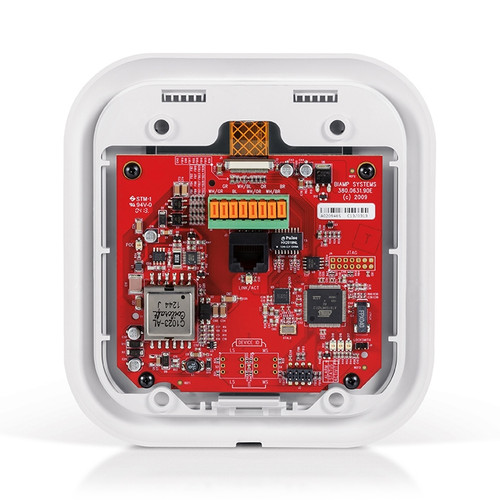

Biamp Tesira TEC-1i In-Wall PoE Ethernet Control:

Adjustment and/or initiation of 32 selectable system volumes and actions
Volumes are any individual or grouped system levels, including inputs, outputs, matrix cross-points, etc.
Actions are any individual or grouped system operations, including presets, source selection, mutes, ducking, combining, etc.
Control functions are programmed in the Tesira system design software
High contrast OLED display with a wide viewing angle
The display brightness can be adjusted to fit the ambient light present in the application and automatically dims when not in use
Capacitive touch technology eliminates protruding and moving parts to increase product reliability and longevity while simplifying cleaning
330' (100m) Ethernet cable length can be extended with standard PoE network technology (routers, switches, hubs, media converters)
Connects with standard RJ-45 or IDC connector
Covered by Biamp Systems’ five-year warranty
