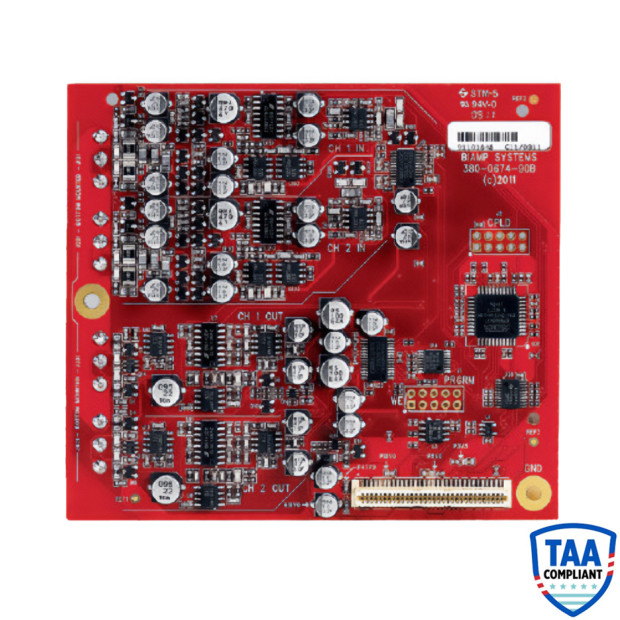

Biamp Tesira EIOC-4 Expander Card with 2 Input and 2 Output Channels

Part #:
901.0314
Model #:
Tesira EIOC-4
Availability:

Special Order (Return conditions apply)

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The Biamp Tesira EIOC-4 is a 2-channel mic/line input and 2-channel mic/line output card for the Tesira EX-MOD. It offers balanced I/O, 0–66 dB input gain in 6 dB steps, and +48V phantom power for flexible audio control.

Description

Biamp Tesira EIOC-4 Expander Card with 2 Input and 2 Output Channels

The Tesira EIOC-4 expander card is an optional card that can be installed in the Tesira EX-MOD and all Tesira amplifiers. Each EIOC-4 provides two channels of mic or line level audio input and two channels of mic or line level audio output. The inputs and outputs are electrically balanced and provided on plug-in barrier strip connectors. Software control of each input includes gain with clip indicator, +48V phantom power, mute, level, and signal invert; whereas control for each output includes mute, level, signal invert, and full-scale output reference.

The Tesira EIOC-4 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Features

  • 2 channels of balanced microphone or line level input
  • 2 channels of balanced microphone or line level output
  • 0 – 66 dB gain, adjustable in 6 dB increments and inputs
  • +48 volts Phantom Power on inputs
  • Selectable full scale output reference level (24 dBu, 18 dBu, 12 dBu, 6 dBu, 0 dBu, -31 dBu) for best interface/performance
  • RoHS compliant and AES grounded
  • 5-year warranty
  • Compliant with the US Trade Agreement Act (TAA)
