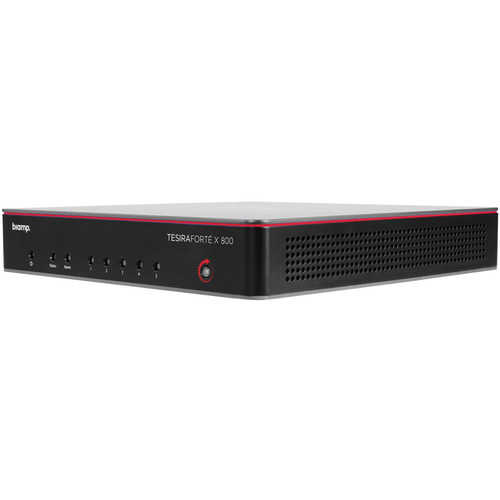

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.TesiraFORTÉ® X 800 is a meeting room DSP featuring multiple network and analog audio connection points, with 8 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1 Gigabit Ethernet ports are provided, four of which are PoE+ powered, and all of which support media and control traffic of various types including AVB, Dante™, and VoIP.
A USB port also supports 1x1 mono or 2x2 stereo USB audio along with HID synchronization allowing the device to act as a conferencing audio peripheral to systems such as Biamp’s Modena™ family or Unified Communications platforms.
Biamp Launch™ technology provides the capability for device discovery and tuning to be undertaken without the need for custom programming, and additionally provides the user with a full performance report of the space upon completion.
TesiraFORTÉ X 800 provides extensive audio processing, including but not limited to: AEC technology, signal routing and mixing, equalization, filtering, dynamics, and delay, as well as control, monitoring, and diagnostic tools. TesiraFORTÉ X 800 is auto-configurable using Biamp Launch but also allows users the option to manually override and completely customize its programming using Tesira software.
The TesiraFORTÉ X 800 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
| Frequency Response | 20 Hz to 20 kHz, +4 dBu output: +0.25 dB/-0.5 dB |
|---|---|
| THD+N | (22 Hz to 22 kHz): 0 dB gain, +4 dBu input: < 0.006% 54 dB gain, -50 dBu input: < 0.040% |
| Maximum Output (Selectable) | +24 dBu, +18 dBu, +12 dBu, +6 dBu, 0 dBu, -31 dBu |
| Output Impedance (Balanced) | 207 Ω |
| Maximum Input | +24 dBu |
| Input Gain Range | 0-66 dB (6 dB steps) |
| Impedance (Balanced) | 8 kΩ |
| Input Type | USB: Bit Depth: 16-bit / 24-bit Number of Channels: Up to 2x2 Sample Rate: 48 kHz |
| Dimensions (H x W x D) | 1.47" (37.3 mm) x 8.11" (206 mm) x 8.11" (206 mm) |
| Weight | 1.9 lbs (0.86 kg) |
