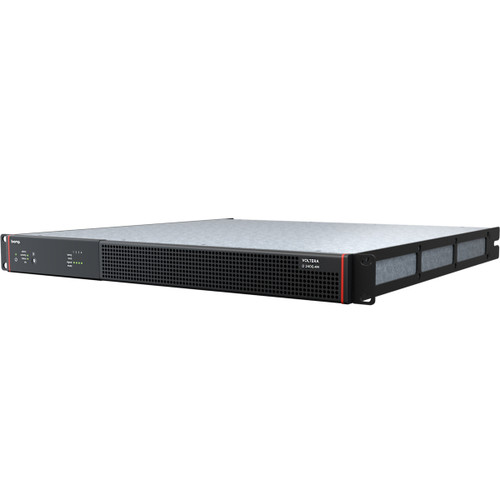

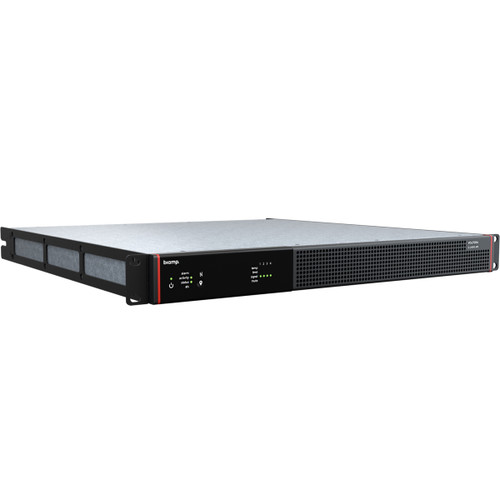

Biamp Voltera D 2400.4M 2400W 4-Channel Sharing Audio DSP and Amplified Loudspeaker Controller

Biamp Voltera D 2400.4M Audio DSP and Amplified Loudspeaker Controller

VOLTERA D M SERIES - Previously unavailable in this segment, Voltera D M networked, amplified loudspeaker controllers feature the full performance of a standalone Tesira Digital Signal Processor (DSP), built into the 1 RU chassis, providing the capacity to host, select, configure, and tune a complete Tesira-based system.

Configurable through Tesira or VenueTune software, Voltera D M amplified loudspeaker controllers seamlessly combine amplification and processing into a single, cost-effective networked solution ideal for small-to-medium sized venues such as hotels, restaurants, retailers, and houses of worship.

The Voltera D 2400.4M complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

• The ALAMOS loudspeaker profile library, with nearly 700 unique profiles covering over 200 Biamp models, streamlines commissioning when using Tesira or VenueTune software
• Compact and powerful—up to 8 channels (D Series), or 4 channels (D M Series) in just one RU
• Powerful onboard DSP with ample headroom
• Compatible with AVB, Dante, and AES67 network protocols
• Accurate raised cosine EQ below 160 Hz
• Group-controlled raised cosine EQ making it attractive for large systems
• Power share up to +100% per channel
• Lo-Z or Hi-Z per channel to support hybrid systems
• High peak voltage output capability
• 5-year warranty
• Compliant with the US Trade Agreement Act (TAA)
• Biamp Workplace Ready
