Blizzard Lighting IRIS R3 LED Video Panel 3.9 mm Pixel 128 x 128 Resolution (Discontinued)

Part #:
IRiS R3
Model #:
IRiS R3
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

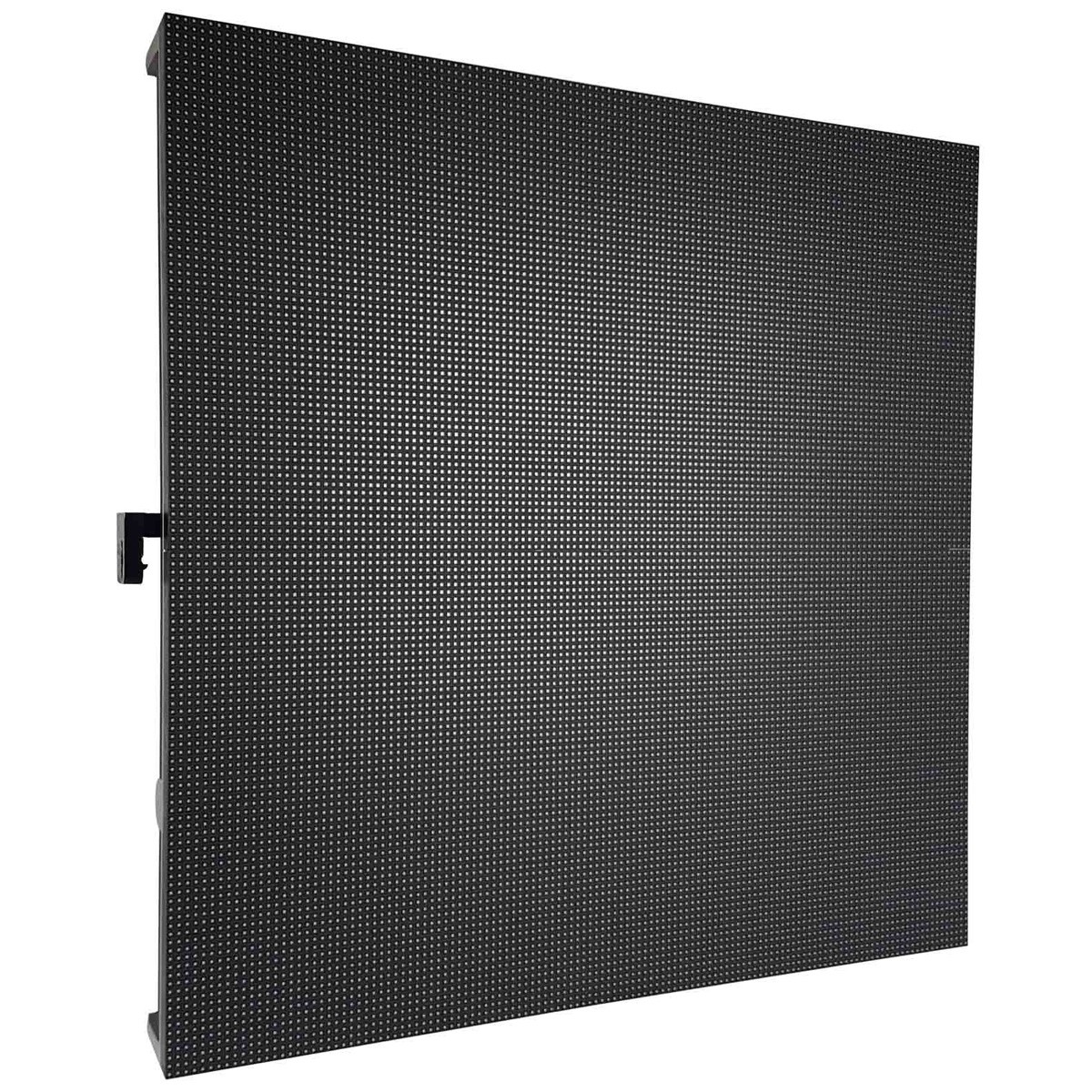

The Blizzard IRiS™ R3 is an ETL listed professional LED video panel that is perfect for either indoor rental or permanent installations. Each panel features 128 x 128 resolution, high-contrast 3-in-1 SMD2121 blackbody LEDs for vivid colors and wide gamut.

Description

Blizzard IRiS™ R3 ELT Professional LED Video Panel for Indoor Rental or Permanent Installations

The IRiS™ R3 is an ETL listed professional LED video panel that is perfect for either indoor rental or permanent installations. Each panel features 128x128 resolution (16,384 pixel), high-contrast 3-in-1 SMD2121 blackbody LEDs for vivid colors and wide gamut. IRiS™ R3 features 3.9mm pixel pitch and boasts exceptional 1200nits brightness and 1920Hz refresh rate for captivating performance in-person or on camera. Connecting panels together is a breeze thanks to IRiS's sophisticated quick lock system.

Reliable and affordable, IRiS R3 is a workhorse in production and install environments. IRiS(R3) is ETL listed and manufactured with precisely matched SMD2121 blackbody LEDs for exceptional color reproduction and gamut. Its 3.9mm pixel pitch offers versatility and value, while built-in curve mechanisms offer creative control for daring panel configurations.

Lightweight + Easy Maintenance

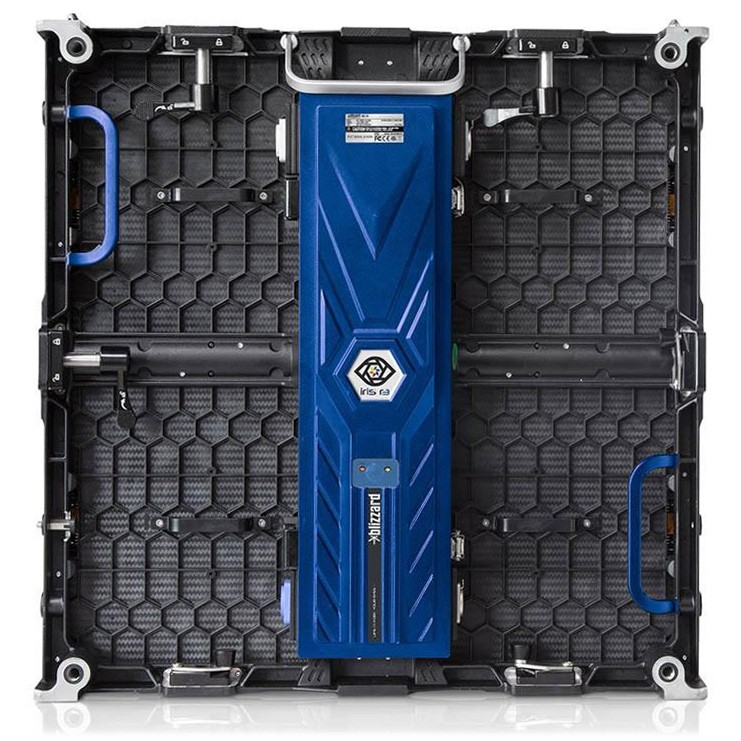

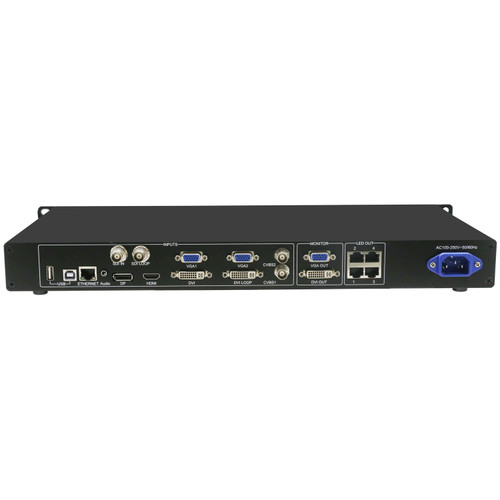

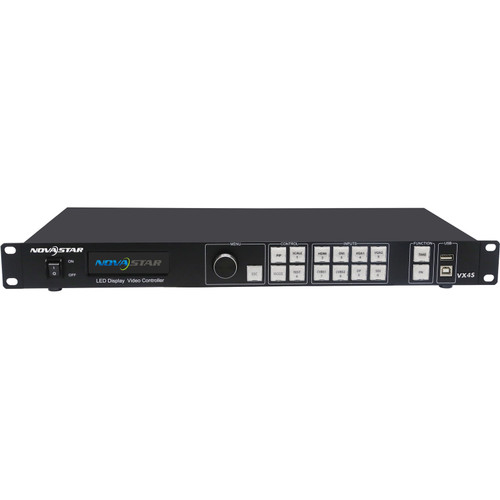

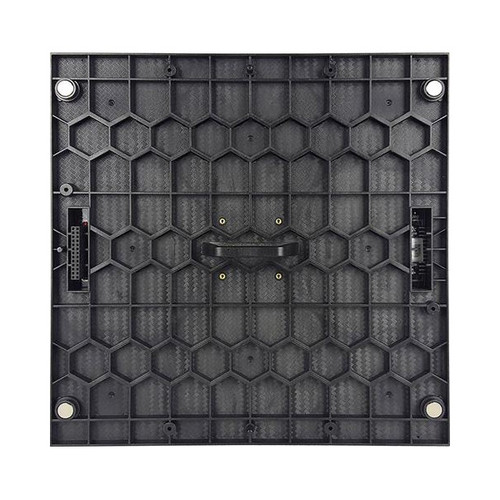

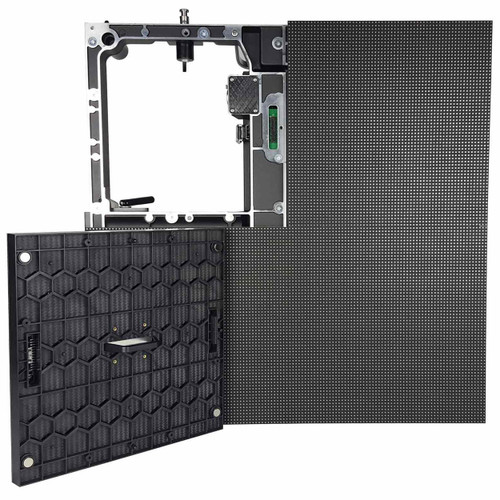

Each IRiS™ panel weighs in under 17lbs thanks to its strong and lightweight diecast aluminum frame. LED module maintenance is tool-free and easy with IRIS's 4x magnetic-mount front/rear modules per panel (250x250mm). They can be controlled flawlessly with the Novastar® TB6 or VX4S LED display controllers, and each panel comes with a 3' etherCON® compatible interconnect, plus a 3' powerCON® compatible interconnect cable.

Features

  • Certificate: cETLus | FCC | CE | RoHS
  • Pixel Pitch (mm): 3.9
  • Panel Dimensions: 500 × 500 × 95 mm
  • Pixel Per Panel: 128 × 128
  • Panel Weight: 7.5 kg / 16.5 lbs
  • Panel Material: Cast Aluminum
  • Modules Per Panel: 4
  • Module Dimensions: 250 × 250mm
  • Curvature: 10° concave, 5° convex maximum
  • LED Type: Blackface SMD 2121
  • Brightness (cd/m2): 1200
  • Refresh Rate (Hz): 1920
  • Viewing Angle (H/V) (°): 150/130
  • Send/Receive Architecture: NovaStar
  • Power: Neutrik® powerCON® in/out
  • Data Neutrik® etherCON® in/out
  • IP Rating (Front/Rear): IP40/IP21
