Blizzard Lighting Laser Blade G Fat Beam Green Laser Moving Head (Discontinued)

Part #:
123575
Model #:
Laser Blade G
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

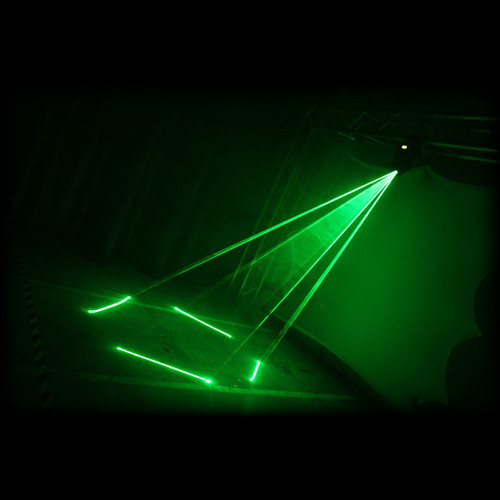

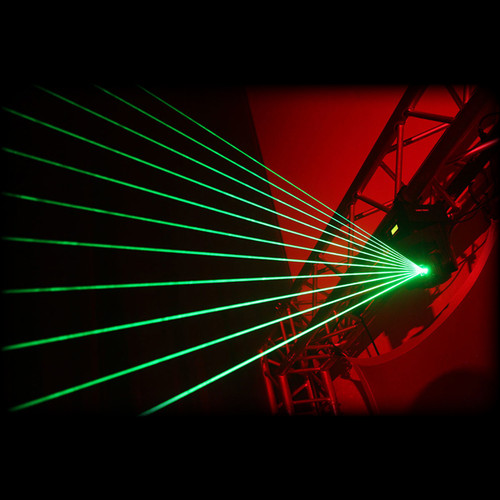

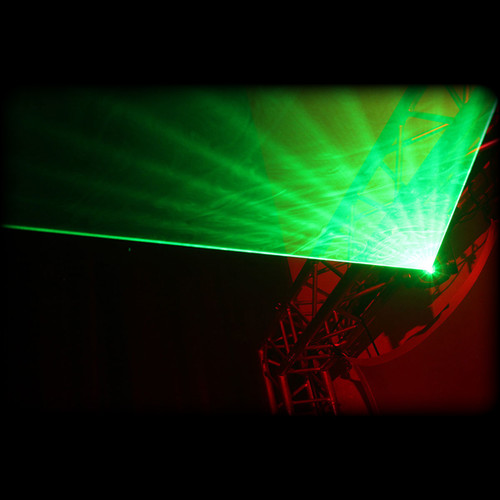

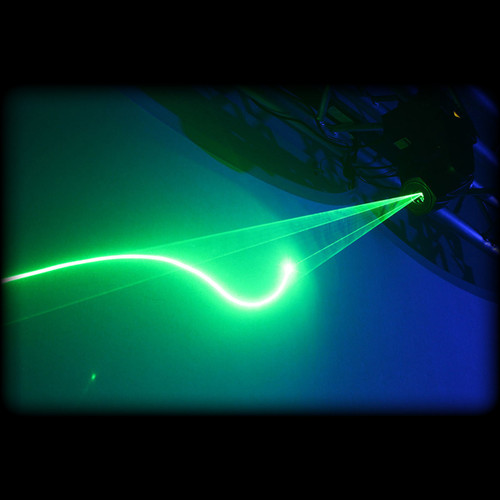

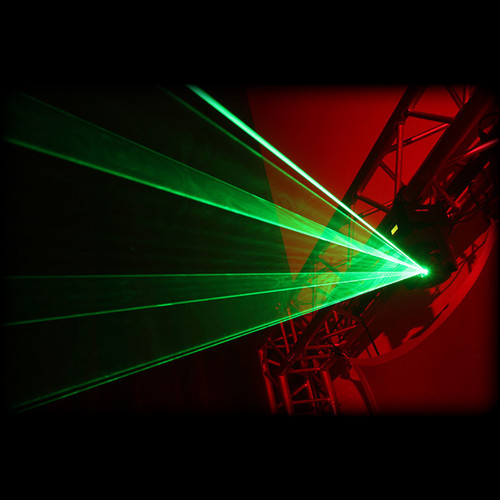

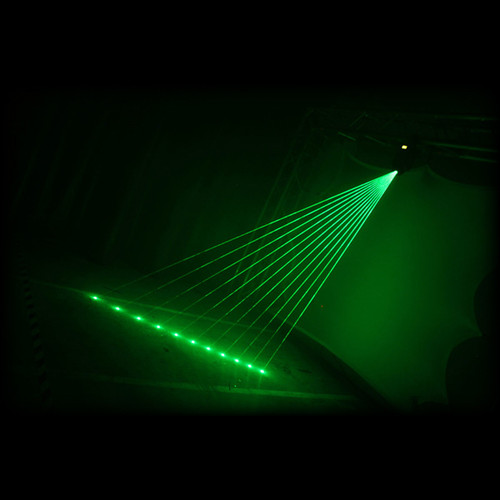

The Blizzard Lighting Laser Blade™ G is a powerful, compact moving head fixture with 540° pan & 270° tilt, and equipped with a 50mW, CLASS 3R wide beam laser with 15KPPS galvo scanners for smooth shapes, animations, and more. It’s a great effect for venues large or small, and perfect for DJs, bands, clubs, and bars.

Description

The Blizzard Lighting Laser Blade™ G is a powerful, compact moving head fixture with lightning fast 540° pan & 270° tilt, and equipped with a 50mW, CLASS 3R wide beam laser with 15KPPS galvo scanners for smooth shapes, animations, and more for jaw dropping effects!

It's very bright, and packed with a ton of goodies like 133 geometric figures, 14 animations, 76 types of beam patterns, and even 2-in-1 frame projection in DMX mode where any two separate shapes or patterns can be individually positioned, rotated, zoomed, and more!

It can be operated in standalone mode, auto-beam, auto-animation, sound active mode, or via DMX where you take full control of pan/tilt, zoom in/out, rotating, drawing, billowing, speed, and animation selection. Want to really throw things over the edge at your next show? Set up two or more Laser Blade™ G fixtures in master slave mode with reversed pan and tilt, add some fog, and get ready to witness some serious mirrored fat beam "Liquid Sky" effects!

This fixture also features a super easy-to-use 4-button LCD control panel, IEC power input connection, 3-pin DMX in/out connections, mounting bracket, and weighs in at less than 7 lbs.

It's a great effect for venues large or small, and perfect for DJs, bands, clubs, and bars looking for the next new and cool piece to add to their light show!

And as course, Laser Blade™ G fixtures are backed by Blizzard's 2-year warranty!

Features

  • 50mW, CLASS 3R fat beam laser + 15KPPS galvo scanners
  • Pre-programmed with 133 geometric figures, 14 animations, & 76 beam patterns
  • Pan: 540º/ Tilt: 270º
  • Easy-to-use 4-button LCD control panel menu
  • Built-in auto-beam, auto-animation and sound-activate programs
  • In DMX mode, 2 animations in one frame can be operated separately
  • Perfect for venues, large and small
  • Ready to use right out of the box
  • 3-Pin male input and 3-pin female output
  • IEC power input connector

Specifications

Operating Voltage 110-250VAC, 50-60 Hertz
Fuse 2A 250V
Power Consumption 20W
Laser Fat beam 50mW 532nm green DPSS
Scanner 15kpss high-speed optical scanner
Laser Class 3R
Max. Operating Temperature 104 degrees F (40 degrees C) ambient
Protocol USITT DMX-512
DMX Channels 18-channel
Input 3-pin XLR Male
Output 3-pin XLR Female
Other Operating Modes Sound Active, Auto-Beam, Auto-Animation, DMX512, Master/Slave
Warranty 2-year limited warranty
Dimensions (H x W x L) 10.6" (270 mm) x 5.5" (140 mm) x 7.1" (180 mm)
Weight 6.7 lbs (3 kg)
